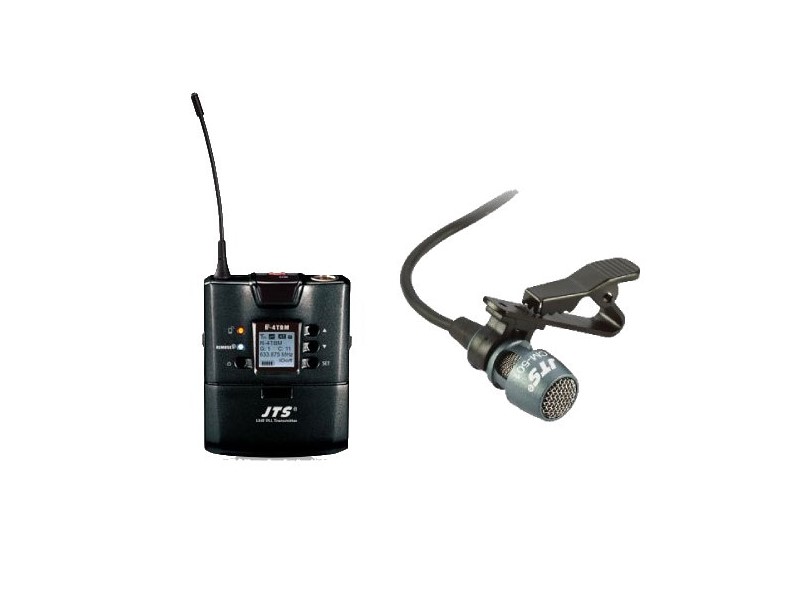

JTS R-4 Series Metal Bodypack Transmitter + Lavalier Microphone

R-4TBM+CM-501

JTS

Whatsapp for enquiry Email for enquiry

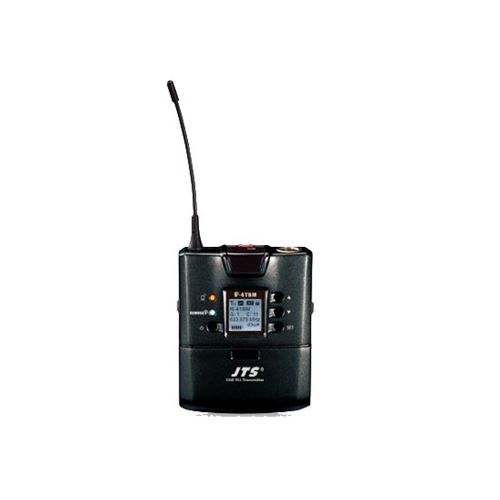

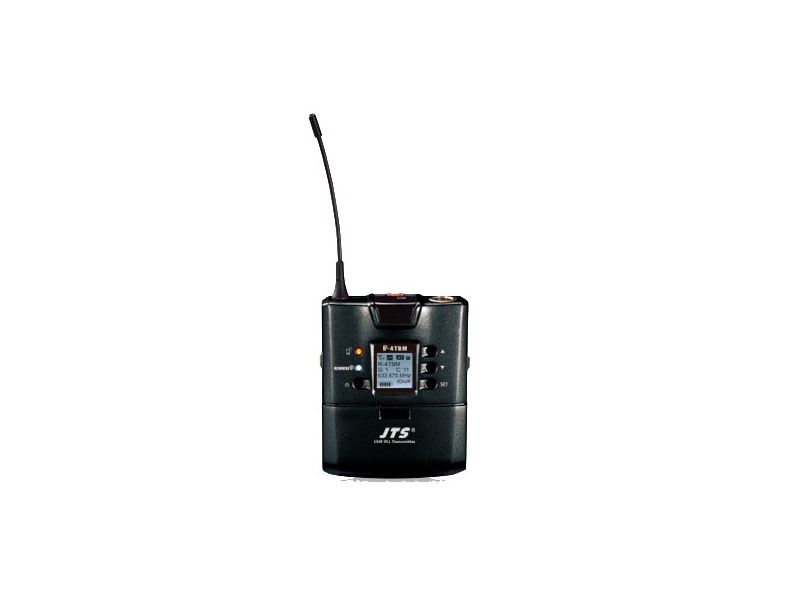

R-4TBM

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption

* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

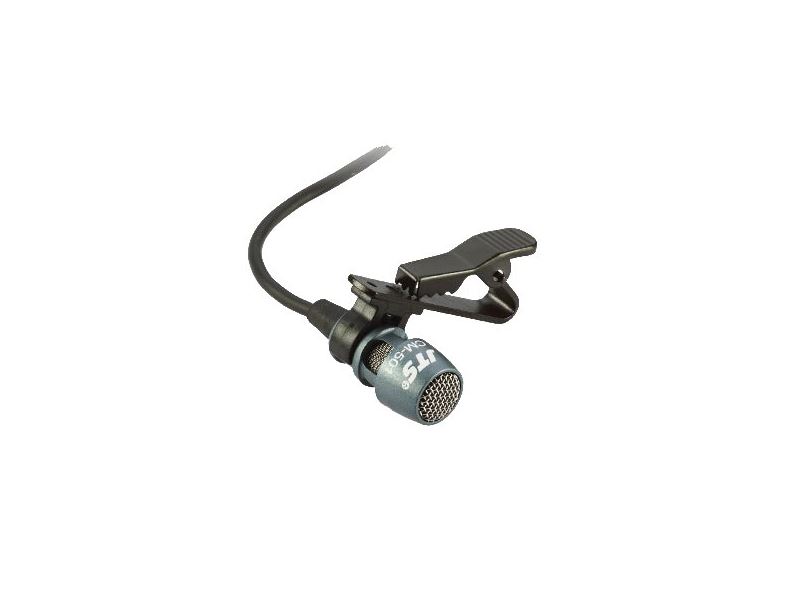

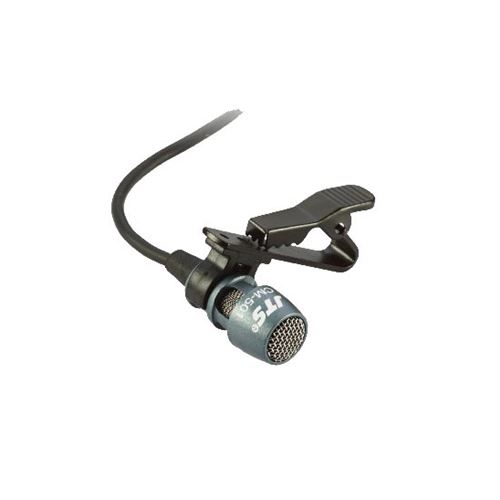

CM-501

* Uni-direction for high-quality voice pick-up.
* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.

* Together with clip for easy attaching to a tie, lapel, dress etc.


R-4TBM
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g

CM-501
Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/μbar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g
