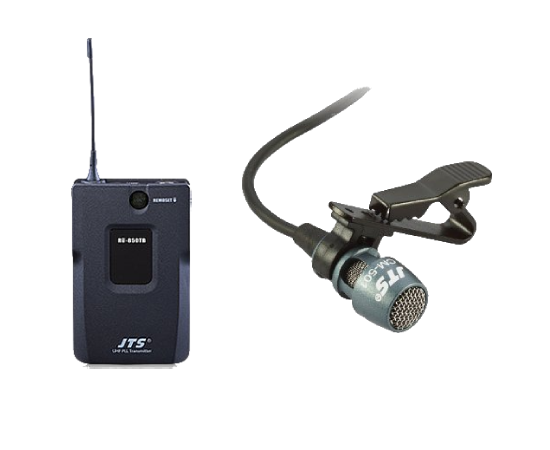

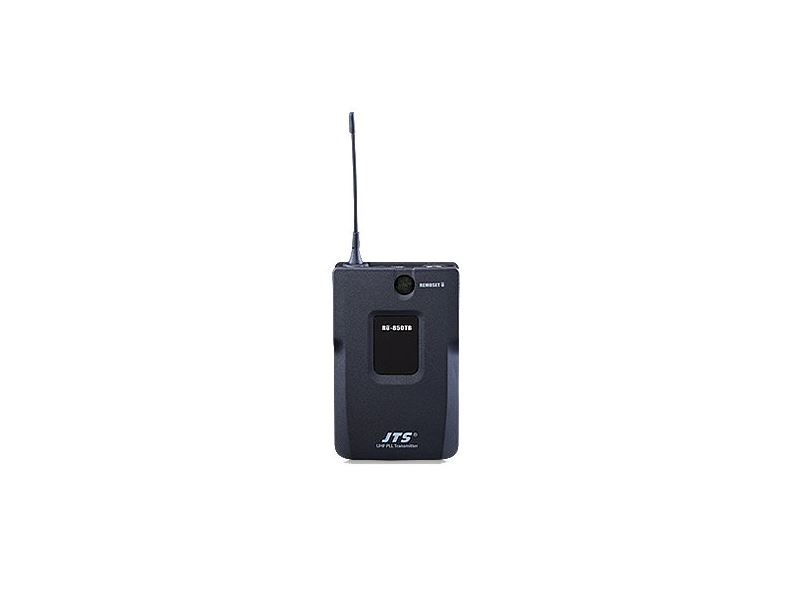

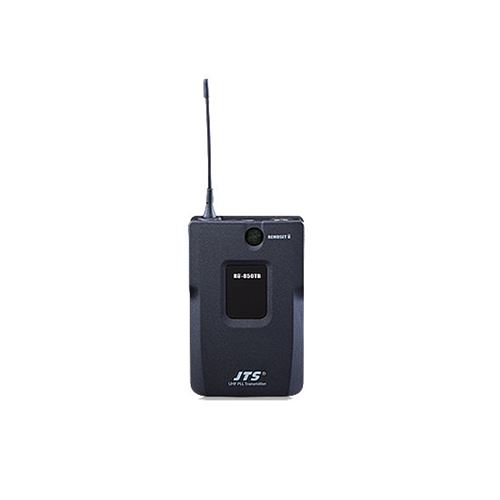

RU-850TB
This innovative bodypack transmitter is designed with Power/Mute button only. All adjustments and settings are carried out at receiver side and the transmitter will be set by patent pending REMOSET U. The settings include Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel.
Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This
will save battery life and avoid over discharge. To cope with music instruments a pad of -20 dB is designed in this bodypack transmitter.

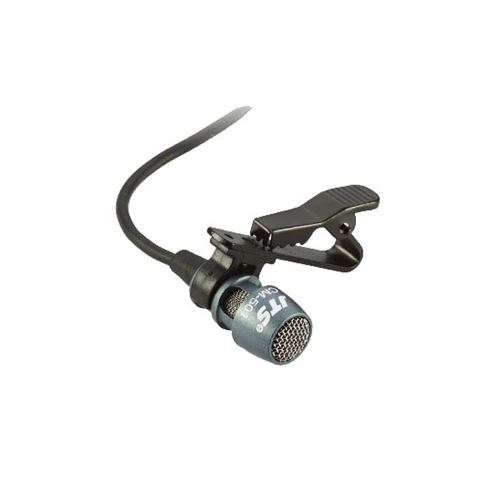

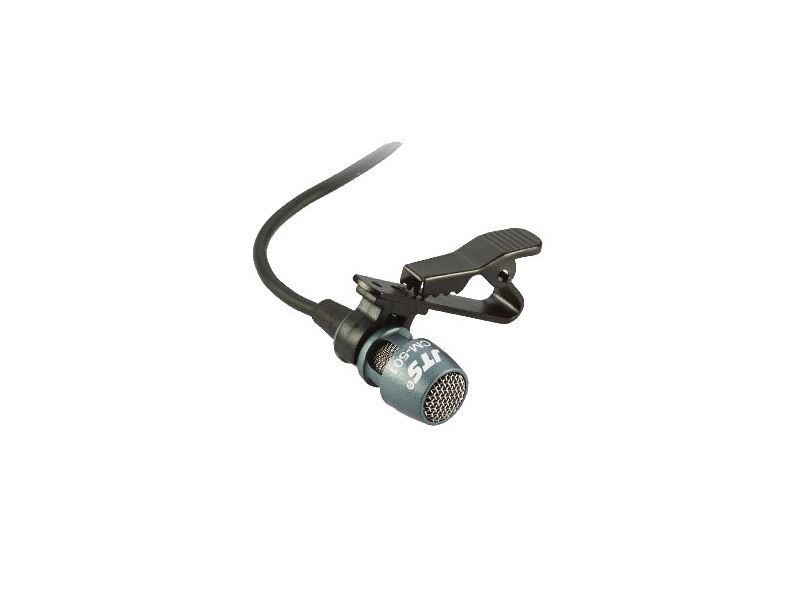

CM-501
* Uni-direction for high-quality voice pick-up.* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.
| RU-850TB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LED |
| Input Connector | 4P Mini XR |
| Controls | Power, Mute |
| Battery | UM3, AA x2 |
| CM-501 | |
| Connector | 4P Mini XLR |
| Frequency Response | 100~15,000 Hz |
| Polar Pattern | Cardioid |
| Sensitivity (at 1KHz) | -60±3 dB* (1mV)*0dB=1V/μbar |
| Impedance | 2.2kΩ |
| Max. SPL for 1% THD | 130dB |
| Dimension(mm) | Ø10.1mm(W)* 26.4mm(H) |
| Net Weight | 21.5g |
