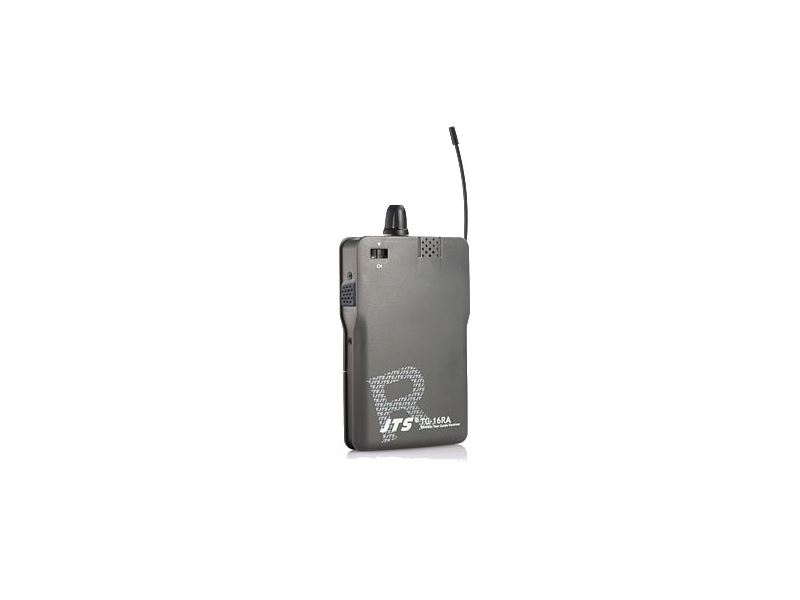

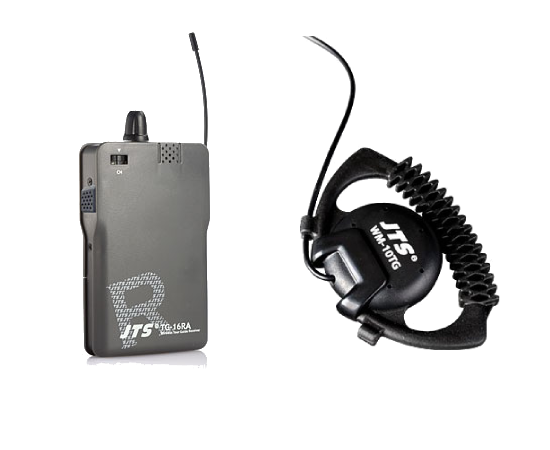

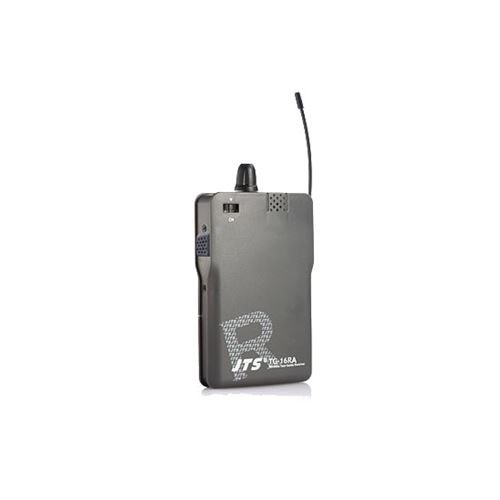

The TG-16RA is 16-channel wireless tour guide receiver. Maximum operational distance (in line of sight) 100m for TG-16 and 200m for TG-16A. Preset 16 selectable channels. Use NiMH rechargeable AA battery. Transmitter bundled with tie clip microphone W-68T. Receiver bundled with single earphone WM-10TG. Space available for built in speaker at TG-16R and TG-16RA. Compatible with stationary transmitter TG-10GSTX and receiver. Designed for cost cautious projects.
- Maximum operational distance (in line of sight) 100m for TG-16 and 200m for TG-16A
- Preset 16 selectable channels
- Use NiMH rechargeable AA battery
- Transmitter bundled with tie clip microphone W-68T
- Receiver bundled with single earphone WM-10TG
- Space available for built in speaker at TG-16R and TG-16RA
- Compatible with stationary transmitter TG-10GSTX and receiver
- Designed for cost cautious projects

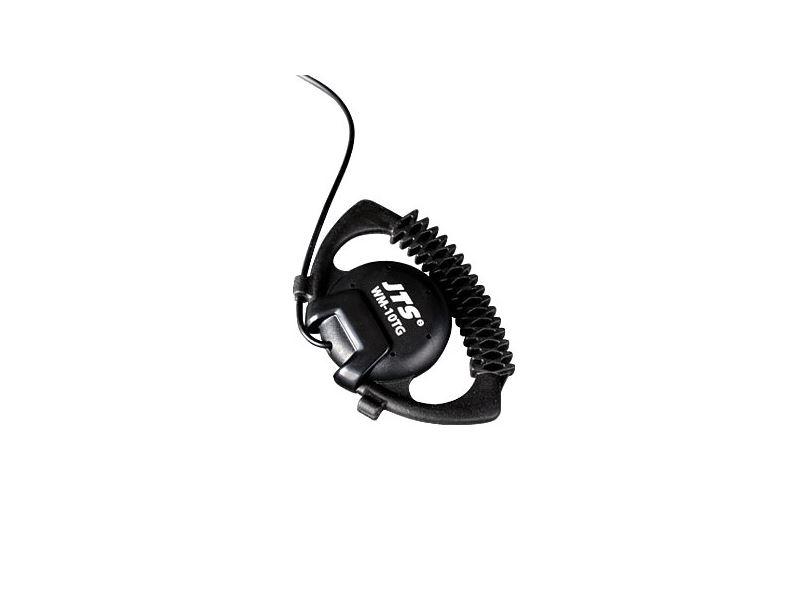

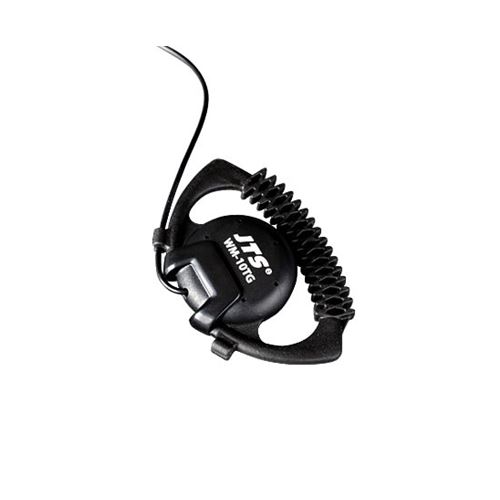

WM-10TG
* Handy feature, broad angle ear set with ergonomic design ensures comfortable wearing.
* Audiophile quality semi closed, dynamic headphone.
* Powerful neodymium-ferrous rare earth magnet system.
* Lightweight copper-clad aluminum voice coils.
* The cord is terminated with a gold-plated Ø3.5 dummy stereo phone plug.
* Super thin 21mm dynamic driver with neodymium magnet structure provides crystal clear sound.
- ROHS Compliant - Yes
- ISO 14001 Certification - Yes
- Maximum Frequency Response (Bandwidth): 18 kHz
- Minimum Frequency Response (Bandwidth): 0.04 kHz
- Regulatory Compliance: WEEE
- Depth: 0.79 in
- Height: 3.82 in
- Width: 2.44 in
- Certifications: FCC, CE
- Minimum Frequency Response (Bandwidth): 40 Hz
- Maximum Frequency Response (Bandwidth): 18000 Hz
- Number of Channels: 16
- Transmission Range: 328.08 ft
| WM-10TG | |
| Drive Unit | Super thin dynamic driver with neodymium magnet |
| Frequency Response | 0~15,000 Hz |
| Impedance | 32Ω |
| Sensitivity(at 1000Hz) | 126 dB/mW |
| Max. Input power | 0.2W |
| Input Connector | Gold-plated Ø3.5 dummy stereo phone plug |
| Weight | 15.2 grams |
