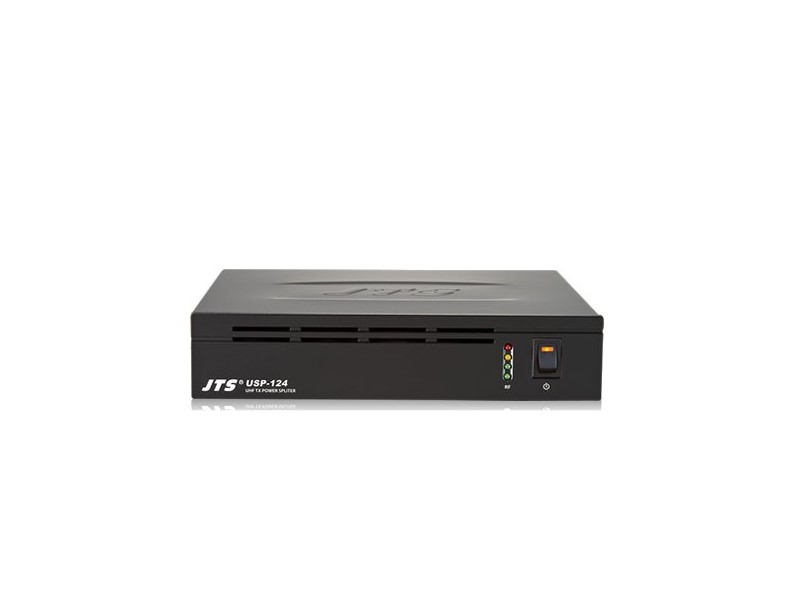

The USP-124 is a UHF 4 channel transmission signal splitter. It provides maximum output level of 26 dBm at each output port. The main application of the product is to provide larger coverage of transmission signal, for example, different floors in a building.
The product is good not only with JTS stationary transmitters but also transmitters from other brands.| USP-124 | |
| Carrier Frequency Range | UHF 470~970MHz |
| Amplifier Gain | 0~+2dB |
| Input/Output VSWR | ≦1.5:1 |
| Input Power Indicator | +3dBm, +7dBm, +15dBm, +20dBm |
| Maximum Input Power | +26dBm (Under +24dBm is Recommended) |
| Power Supply | DC 12~15V/1A |
| Connectors | BNC Socket(1 Input, 4 Outputs) |
| Dimensions(mm) | 212 (W) × 44 (H)× 203 (D) |
| Weight | 350g |
