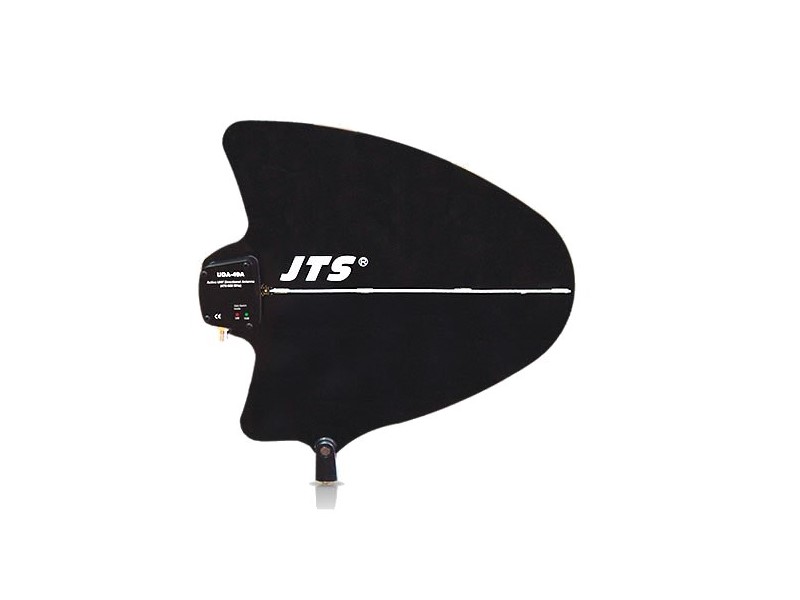

The UDA-49A is an Active UHF directional antenna. Designed for wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems.Switchable gain (3 dB/10 dB) to avoid power loss. Power supply via JTS UHF PLL receivers or the active antenna splitter UA-960. Range of 470-960 MHz. Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility. BNC connection can be mounted onto any microphone stand with a thread of 9 mm or 16 mm 2 x UDA-49A required for true diversity reception.
* Frequency Band: 470~960 MHz
* Effective Working Angle: 100 degree* Antenna Gain: 10dB
* Net Weight: 400g
* Power Supply: 12V, 50mA
* Booster Gain: 3dB/10dB Selectable
UDA-49A | |
Frequency Band | 470~960 MHz |
Effective Working Angle | 100 degree |
Antenna Gain | 10dB |
Net Weight | 400g |
Power Supply | 12V, 50mA |
Booster Gain | 3dB/10dB Selectable |
