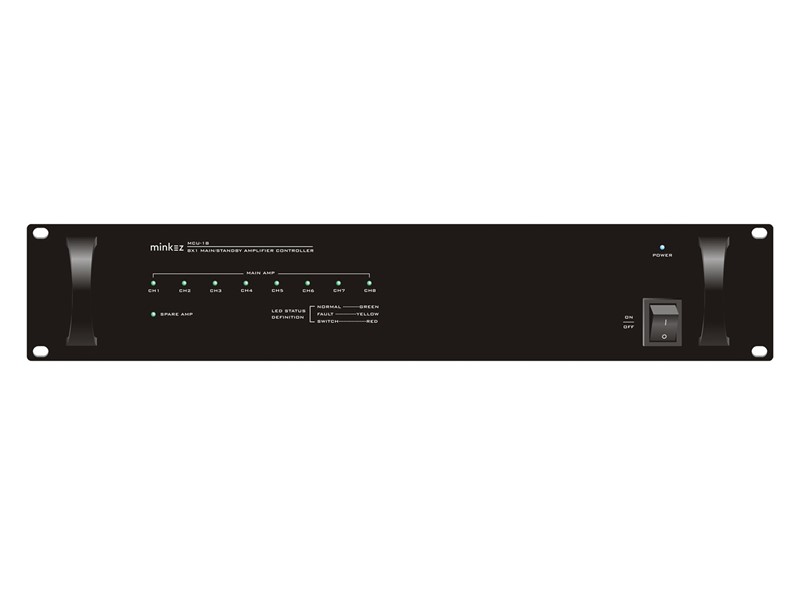

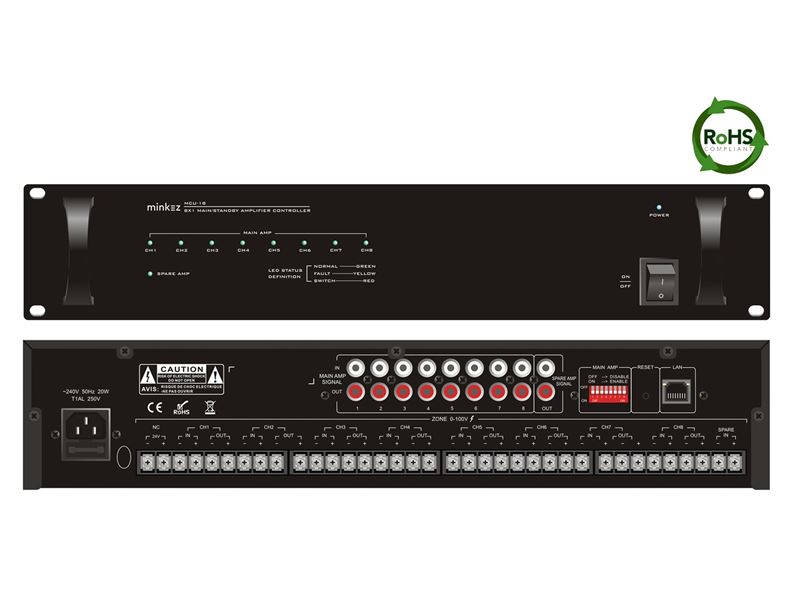

- With the 2U chassis, high integration, modular design.
- When equipment shutting down or powering off, it will not affect normal broadcasting.
- Support 8 main amplifiers and 1 standby amplifier, it will automatically switch to standby amplifier when the main amplifier is faulty.
- Real-time power amplifier status detection, and with different colours for the indicators.
- With Ethernet interface, can be integrated with the third-party system and realized the centralized supervision and distributed control.
Brand | Minkez |
Model | MCS-66V |
Power Supply | 220 V / 50 Hz |
Maximum Current | 0.1 A |
Specification of Fuse | 50 V / 1 A, Slow Type |
Power Consumption | 15 W |
Distortion | < 0.1 % (Rated Output Power), 1 K Hz |
Frequency Response | 20 Hz – 20 K Hz |
Sensitivity | 775 mV |
SNR | > 70 dB |
Impedance | 10 K Ohm |
Cooling Method | Natural Cooling |
Operating Temperature | 5 Celcius to 40 Celcius |
Storage Temperature | – 20 Celcius to 70 Celcius |
Relative Temperature | < 95 % (Without Condensation) |
Dimensions | 484 x 447 x 88 mm |
Weight | 5 kg |
