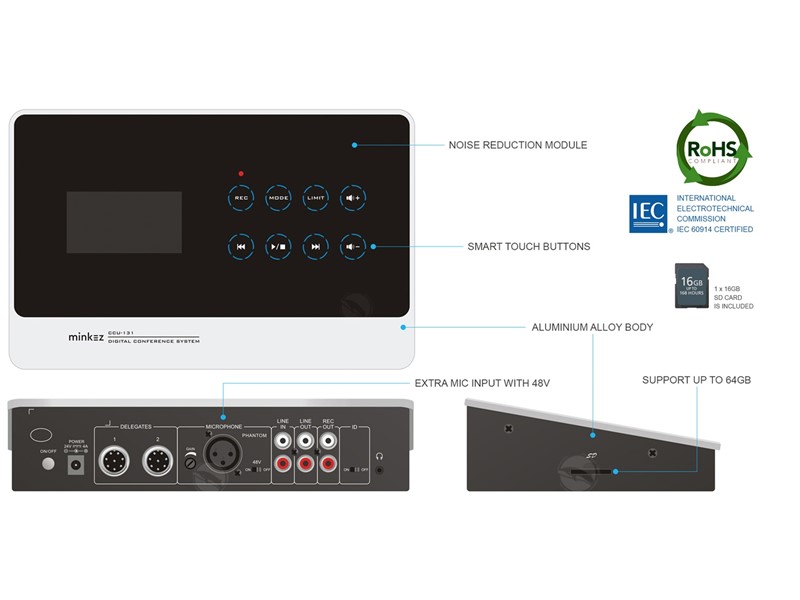

- Smart touch buttons, easy operation. With recording, playback control, mode, quantity switching and volume shortcut key.
- With 4 meeting modes: FIFO, NORMAL, FREE, APPLY.
- Spokesman quantity limitation: option for 1, 2, 4, 6. Chairman is not limited.
- Support Max 32 pieces of microphone units.
- Hand in hand cable connection way, easy for installation and maintenance.
- Adopt digital equalization module and noise reduction processing module for audio processing, to ensure clear and good sound quality.
- With 1 group original audio channel output, connect with amplifier.
- With 1 group recording channel output, connect with an external recording device.
- Built-in recording function and SD interface, can record meeting conversation.
- Able to connect external mic, the gain is adjustable.
- With 48V Phantom power can be controlled, connect with an external mic, the gain is adjustable.
- Support 24V DC power supply, for the controller and mic units.
- Control unit shell adopt metallic material, both shell and cables have a connection with the ground line, just to ensure that the function of antistatic 6000V.
- Delicate desktop design, easy for operation.
- With 3.5mm headphone jack, monitoring meeting conversation.
Brand | Minkez |
Model | CCU-131 |
Microphone Quantity | <= 30 |
Frequency Response | 30 Hz – 20K Hz |
SNR | > 75 dB (A) |
Dynamic Range | > 80 dB |
Crosstalk | > 80 dB |
THD | < 0.05 % |
Power Supply | 24 V DC |
Audio Input | Line In: 350 mV Balance |
Audio Output | Line Out: 1 V Balance |
Output Load | > 1 K Ohm |
Static Consumption | 10 W |
Output Consumption | 70 W |
Connector | 8 Core Aviation Plugs |
Standards | IEC60914 |
Working Temperature | – 10 C to 60C |
Working Humidity | 20% – 80% Relative Humidity (Without Condensation) |
Colour | Black |
Dimensions | 210 x 132 x 50 mm |
Weight | 1.65 kg |
