JBL CONTROL 300 Series 250 Watts 8" Coaxial Ceiling Loudspeaker with HF Compression Driver

CONTROL 328C

JBL Professional

Whatsapp for enquiry Email for enquiry

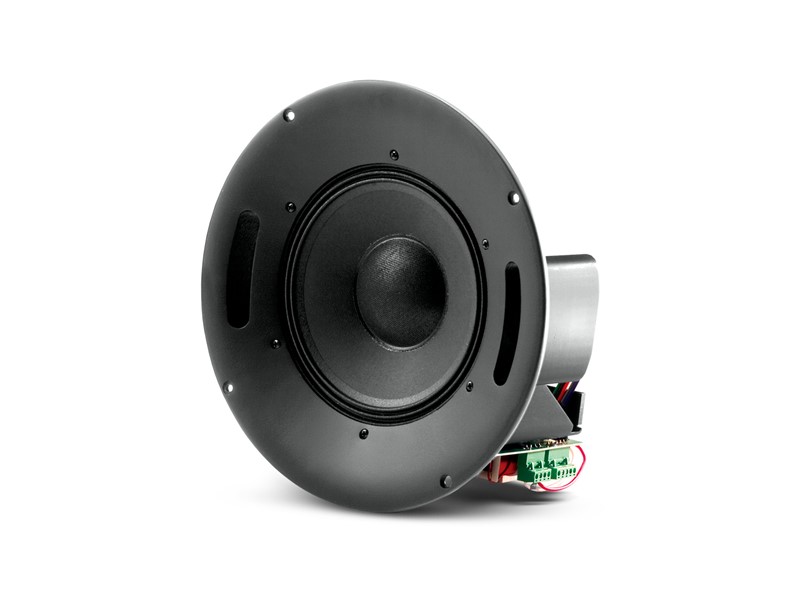

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.


Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    • 200 mm (8 in) woofer with Kevlarre inforced cone and 50 mm (2 in) voice-coil.
    • 25 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.

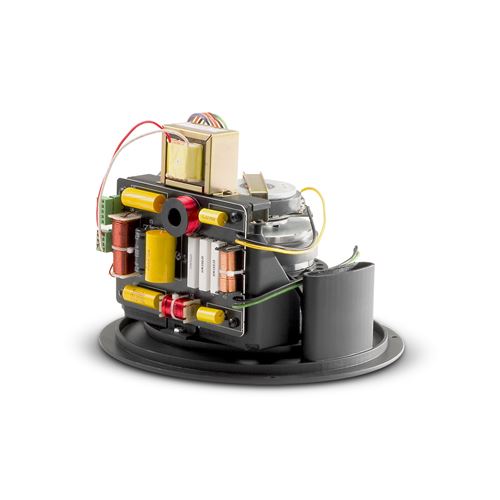

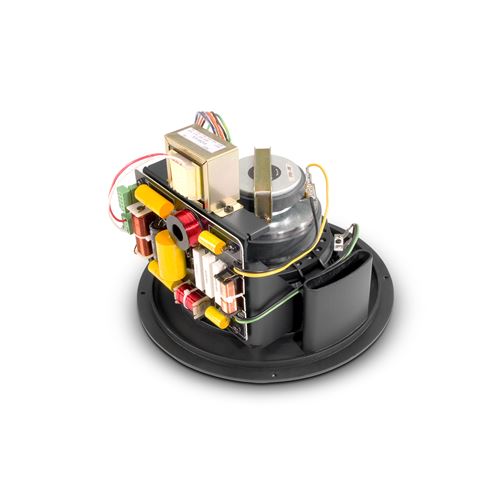

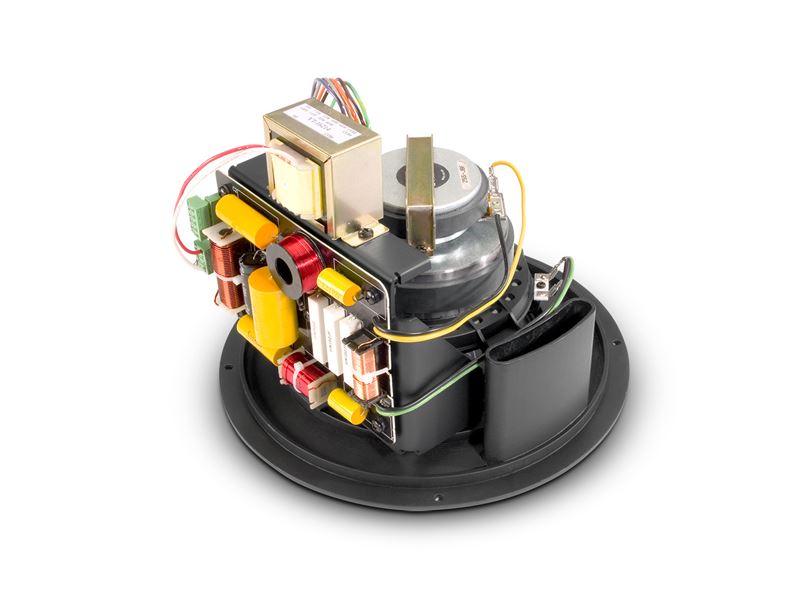

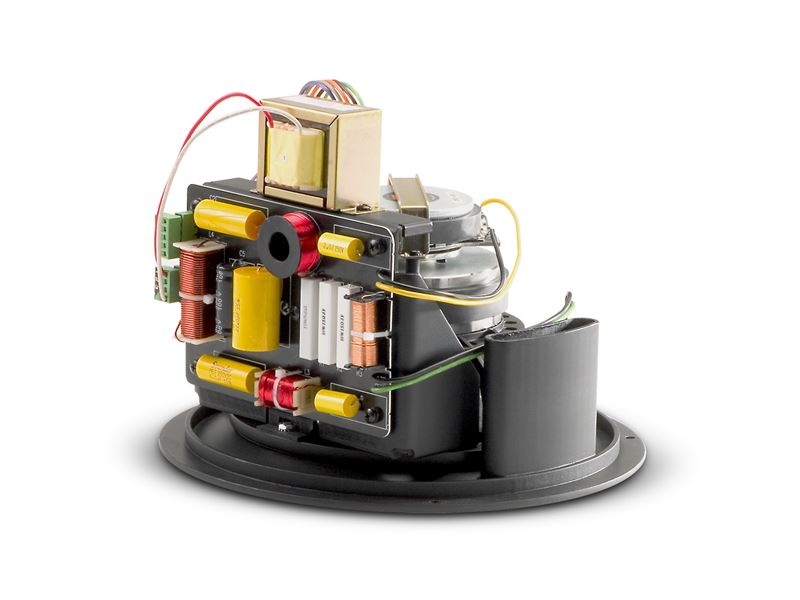

  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.


Frequency Range (-10dB) 45 Hz – 18 kHz
Power Rating IEC Long-Term System Power Rating: 250 W continuous pink noise (1000 W peak), 2 hrs 150 W continuous pink noise (600 W peak), 100 hrs
Sensitivity 93 dB (1 kHz - 16 kHz)
Frequency Response (±3 dB) 60Hz – 16 kHz
Coverage Angle 120° conical, constant directivity
Directivity Factor (Q) 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) 8.5dB (Avg 1k - 16kHz)
Maximum SPL (1m) 118 dB (124 dB peak)
Crossover Network 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Impedance 8 ohms
Dimensions (H x W x D) 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in)
Input Connectors Screw locking barrier strip for bare wire
Drivers LF Driver: 200 mm (8 in)
HF Driver: compression driver, 25 mm (1 inch) coil
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-300BB8 backcan)
Optional Accessories MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet)
Plenum Usage Yes, with accessory backcan
