JBL Control Contractor 100 Series 60 Watts Continuous 8" Premium 2-Way In-Wall Loudspeaker with Transformer

CONTROL 128WT

JBL Professional

Whatsapp for enquiry Email for enquiry






The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.


Features

  • Components:
    200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
    25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 30 Hz – 20 kHz.
  • 60 W continuous (120 W program, 240 W peak) power handling (128 W).


Active or Passive Passive

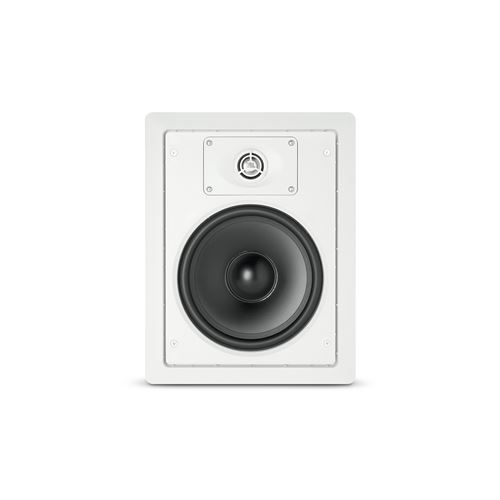

LF Driver 8" / 20 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround
HF Driver 1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability
Frequency Range 30 Hz to 20 kHz (-10 dB)
Power Capacity Peak: 240 W
Continuous Program: 120 W
Continuous Pink Noise: 60 W
Sensitivity 90 dB SPL (1 W, 1 m)
Impedance Not applicable
Transformer Taps Watts at 70 V: 6, 12, 25, 50
Watts at 100 V: 12, 25, 50
Crossover Low-Pass Filter to Woofer: 2nd Order (12 dB/Octave)
High-Pass Filter to Tweeter: 2nd Order (12 dB/Octave)
Input Screw-Down Euroblock Connector (14 AWG Maximum Wire Size)
Shielded No
Air Gap Optimum Air Cavity Behind Speaker: 1.4 to 2.8 ft³ / 40 to 80 L
Cutout Dimensions (H x W) 11.9 x 8.9" / 30.0 x 22.5 cm
Maximum Wall Thickness 1.3" / 3.2 cm
Dimensions 13.1 x 10.1 x 4.3" / 33.4 x 25.7 x 11.0 cm
4" / 10.2 cm Front of Wall to Back of Speaker
Weight 7.2 lb / 3.3 kg
