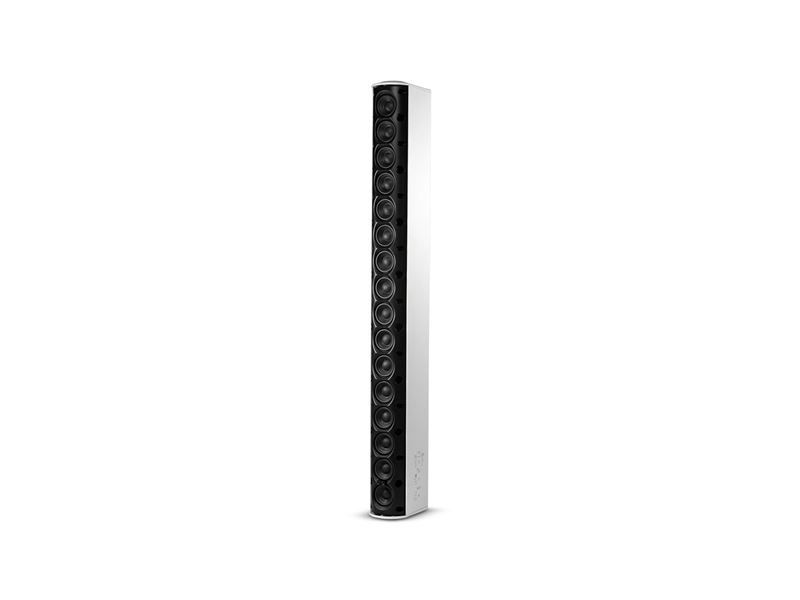

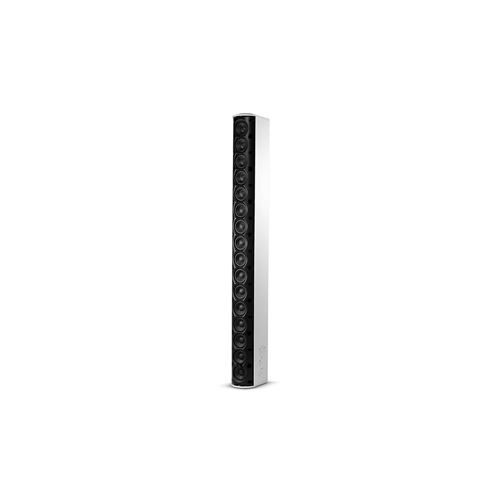

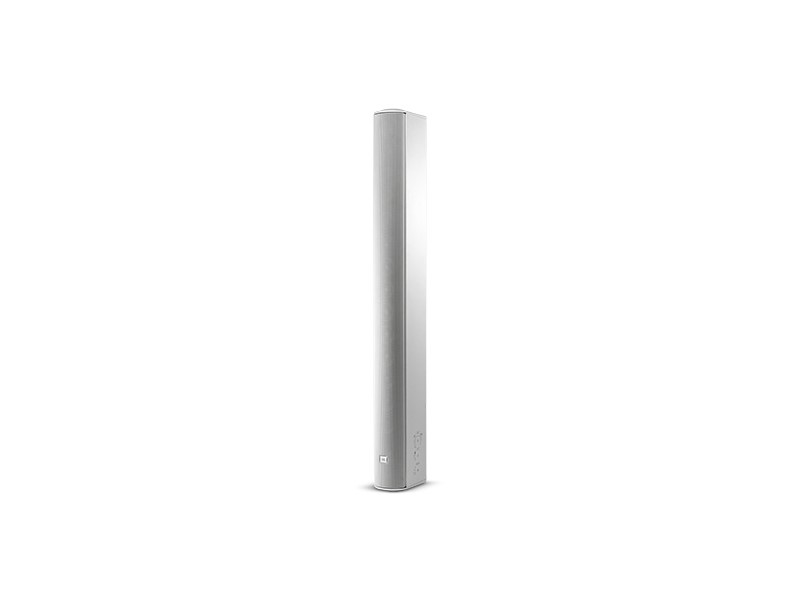

JBL CBT Series 325 Watts RMS 16 x 2" Drivers Line Array Column Loudspeaker with Transformer (White)

CBT 100LA-1-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.


Features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.


Drivers Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB) 80 Hz – 20 kHz
Coverage Angle Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°)Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance 8 ohms (in Thru mode)
Power Rating 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
Maximum SPL (1m) Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or White (-WH)
Insert Points 18 M6 insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight 7.2 kg (15.8 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
