JBL Bolt-On Transformer Module for CBT 70 Series

MTC-CBT-70T

JBL Professional

Whatsapp for enquiry Email for enquiry






The black MTC-CBT-70T Bolt-On Transformer Module from JBL is designed for adapting the CBT-70J-1 and the CBT-70JE-1 to be used on distributed loudspeaker lines. It allows long cable runs and multiple speakers to be driven from a single distributed system amplifier channel. There are transformer taps for 70V and 100V at 120W, 60W and 30W and an additional tap at 15W for 70V only.

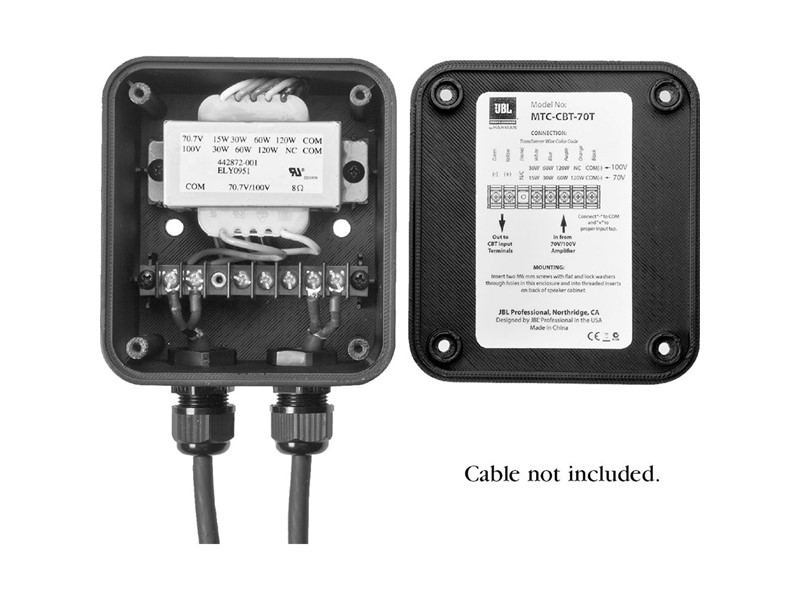

The module connects to the amplifier through separately sold cables which run to the transformer's screw-down terminals inside the enclosure. Taps are selected by connecting the cable from the amplifier to the appropriate terminal on the internal terminal strip. There are two gland nuts for a water-tight seal and two mounting holes which connect to insert points on the back of the CBT-70J-1 or CBT-70JE-1 cabinet. The transformer is also UV, moisture and salt-spray resistant.

Adapts the CBT-70J-1 and CBT-70JE-1 for use on distributed speaker lines
Bolts onto the back of the CBT-70J-1 and the CBT-70JE-1 speakers
Gland nuts provide a watertight seal


Compatibility CBT 70J-1
CBT 70JE-1
Connection CE-compliant barrier strip terminals
Power Compatibility 70.7 V / 100 V
Transformer Taps 120 W
60 W
30 W
15 W at 70 V only
Terminal Compatibility Exterior Wire Size: up to 0.3" / 8.0 mm
Interior Wire Size: up to 0.2" / 4.0 mm
Bare Wire Size: up to 12 AWG / 2.5 mm²
Hardware 2 x 1.0 thread pitch bolts (0.2 x 0.6" / 6.0 x 15.0 mm)
2 x flat washers
2 x lock washers
Sealing 2 x watertight gland nuts
Mounting Area 2 x mounting holes, 2.8" / 70.0 mm apart
Certifications & Approvals IP-55 rated per IEC529
Material Fiberglass filled ABS
Dimensions With gland nuts: 6.2 x 4.5 x 3.4" / 157.5 x 114.3 x 86.4 mm
Height without gland nuts: 50.0" / 1,270.0 mm
Weight 2.5 lb / 1.1 kg
