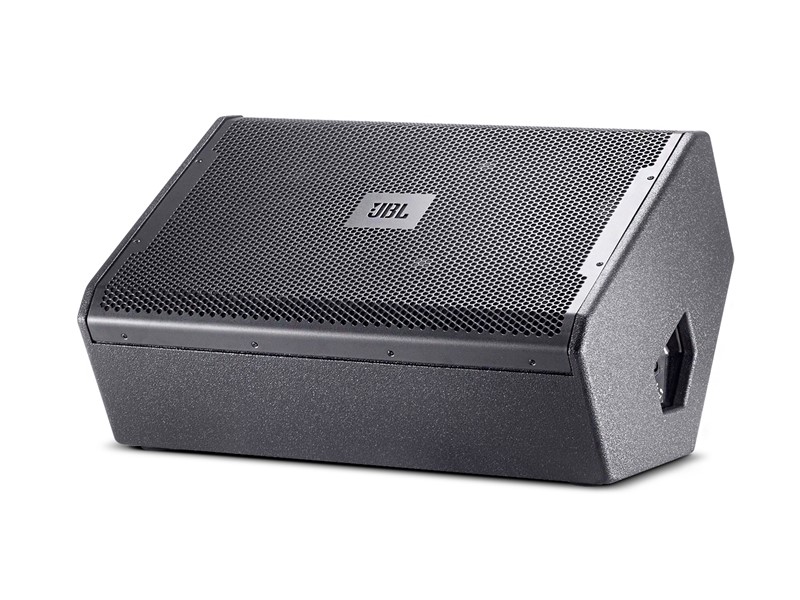

Next time you go on tour, make sure you have someVRX915M 15" 2-Way Stage Monitors from JBL on the floor. This lightweight, compact monitor can be bi-amped or used as a full-range passive monitor with a nominal coverage of 50 x 90°. The VRX915M utilizes the JBL Differential Drive 15" woofer containing a neodymium magnet saving on weight but not on power. Crystal clear highs are provided by the 4" compression driver also using a neodymium magnet.
Features
- Compact and low-profile for minimal obstruction of audience sightlines
- 50° x 90° nominal coverage
- Bi-amplified or full-range passive operation
- Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
- 4" (voice coil) diameter compression driver with neodymium magnet
| Power Rating | 800 W / 1600 W / 3200W |
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
| Dimensions (H x W x D) | 629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height) |
| Coverage Pattern (-6 dB) | 50° x 90° nominal |
| Crossover Modes | Passive / Bi-amp |
| Crossover Frequency | 1.1 kHz |
| Maximum SPL (1m) | 127 dB SPL continuous (133 dB SPL peak) |
| Sensitivity | 98 dB SPL |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms |
| HF Driver | 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet |
| Nominal Impedance | 8 ohms |
| Active Tunings | Tunings available at www.jblpro.com |
| Enclosure | Symmetrical stage monitor, 15/18 mm, plywood |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing |
| Inputs | Neutrik® Speakon® NL-4 (x2), one on each end |
| Net Weight (each) | 21 kg (46.0 lb) |
| Outputs | 1 x XLR |
