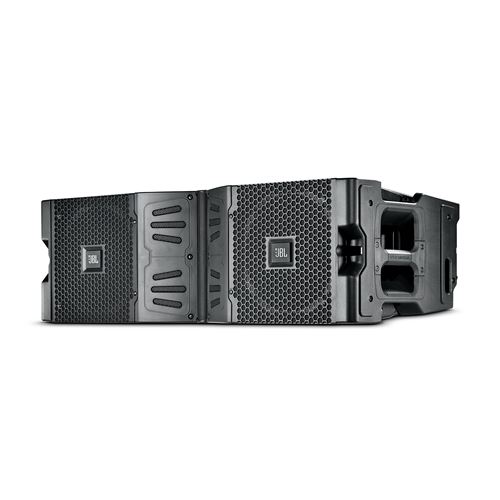

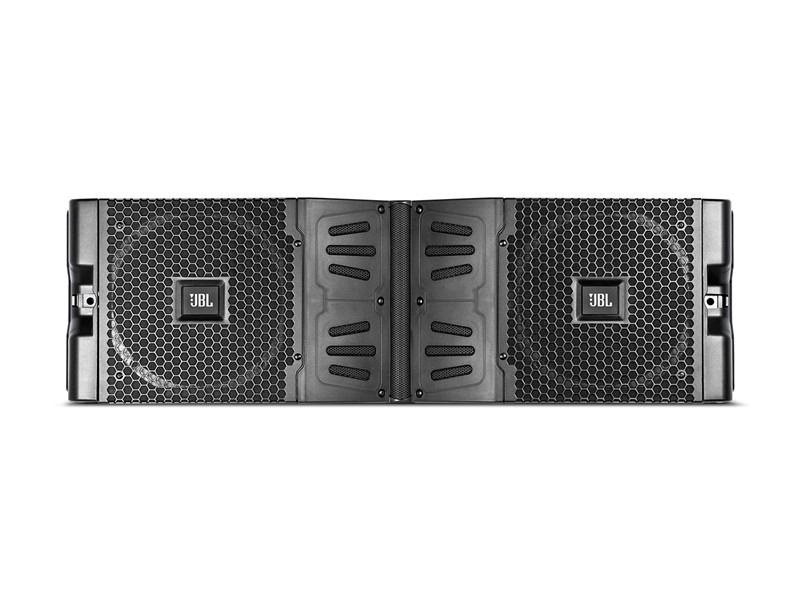

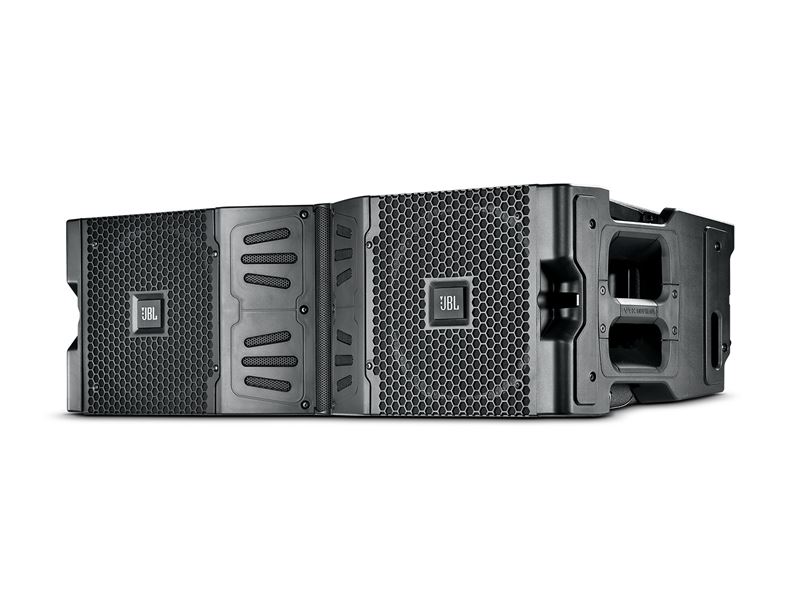

JBL VTX V Series (LF) Dual 600W RMS (MF) 315W RMS (HF) 315W RMS 3-Way High Directivity Line Array Element

VTX-V20

JBL Professional

Whatsapp for enquiry Email for enquiry






Extraordinary Performance in a Compact Format

VTX V20 features the advanced technology and extraordinary performance of the groundbreaking VTX V25 in a smaller format, high power density 3-way system complemented by a new suspension system that provides efficient transport, fast setup and precise configuration. All VTX V20 components have been specifically engineered to provide stable 105 degree horizontal coverage and effective line source array coupling in the vertical plane while delivering linear, transparent sound up to surprisingly high output levels for its diminutive size.


Features

  • Differential Drive Technology
  • 4th generation advanced high frequency waveguide
  • Small Format Version of Patented D2 Dual Compression Driver
  • ASM Suspension System
  • V5 System Integration


System Type 3-Way High Directivity Line Array Element with D2 Technology
Frequency Range (-10dB) 60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB) 105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output 139 dB (Preset: VTX V20)
System Amplification Crown Audio I-Tech HD
Nominal Impedance Active:
LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms

Passive:
LF: 16 ohms
MHF: 8 ohms

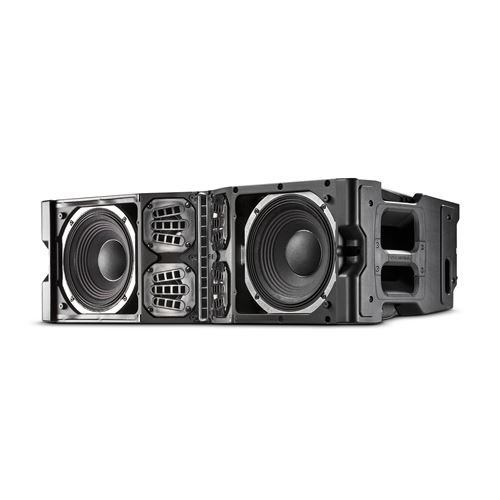

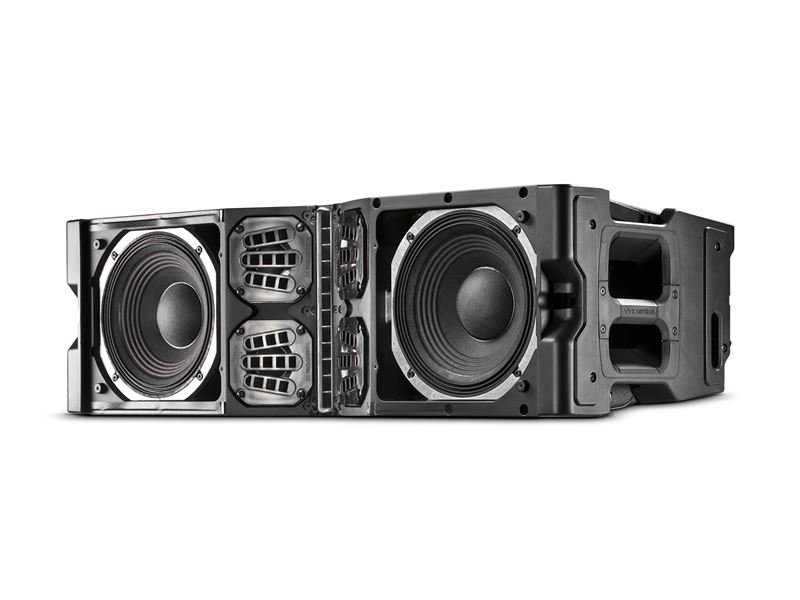

LF Driver (2) JBL 2161H 10-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles
Inter-enclosure Angle 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
Dimensions (H x W x D) 280 mm x 911 mm x 402 mm
11 in x 35.9 in x 15.8 in
Net Weight (each) 40 kg (88 lbs)
