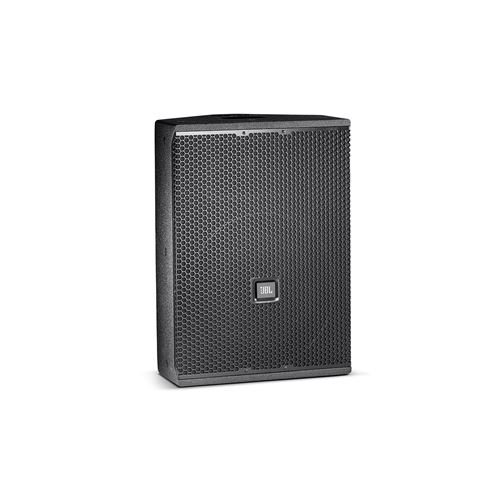

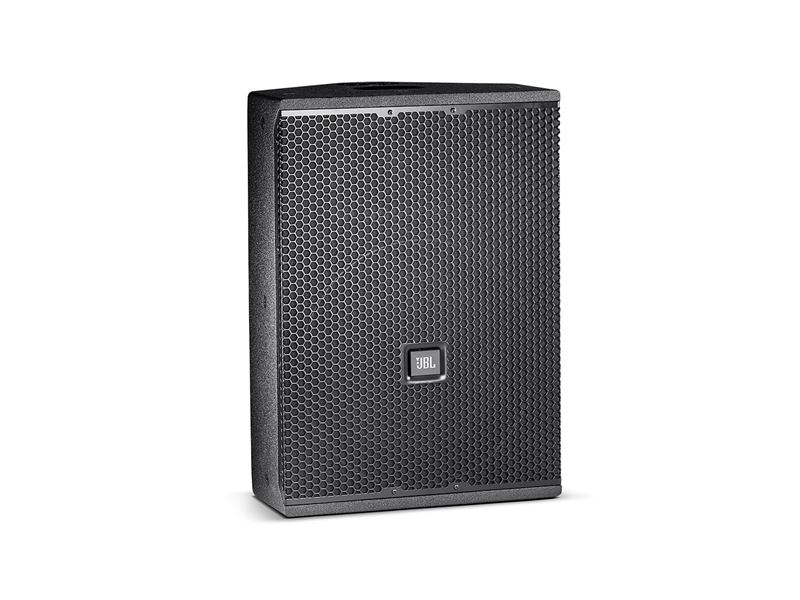

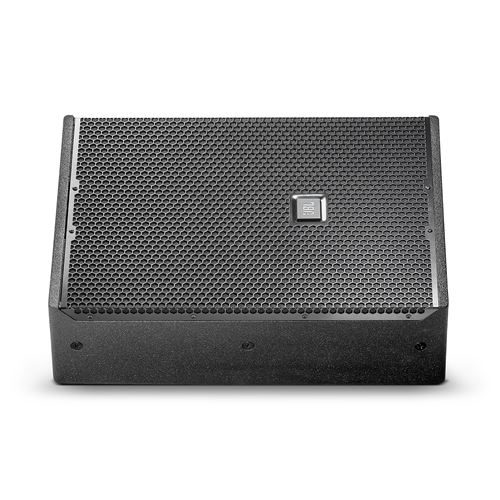

JBL VTX F Series (LF) 1000 Watts RMS (HF) 200 Watts RMS 15" Bi-Amplified 2-Way Loudspeaker

VTX-F15

JBL Professional

Whatsapp for enquiry Email for enquiry






15" Bi-Amplified 2-Way System

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.


Features

  • D2430K D2 Dual Diaphragm Dual Driver
  • Progressive Transition Waveguide (90° x 50°)
  • Bi-Amplified 2-Way System
  • BSS Audio OmniDriveHD V5 Processing
  • For use with Crown ITechHD and Crown VRack
  • JBL HiQnet Performance Manager Control™


System Type 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver

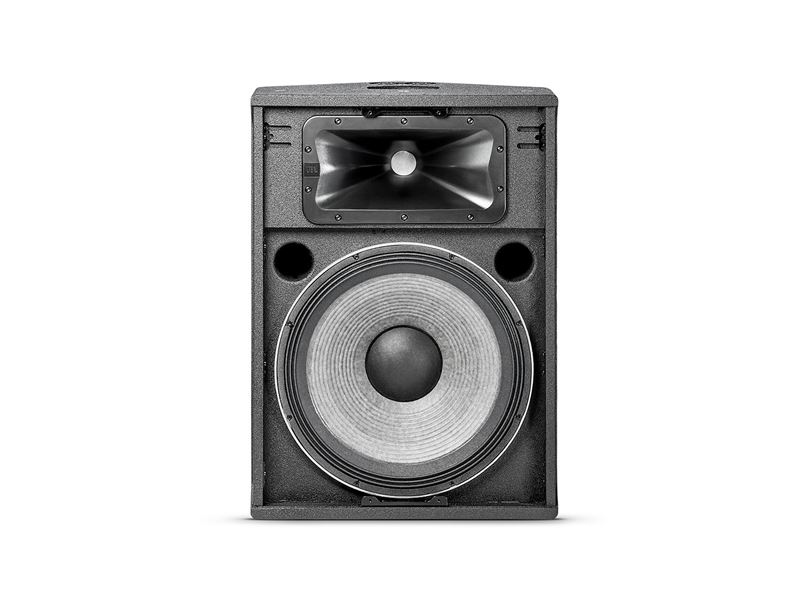

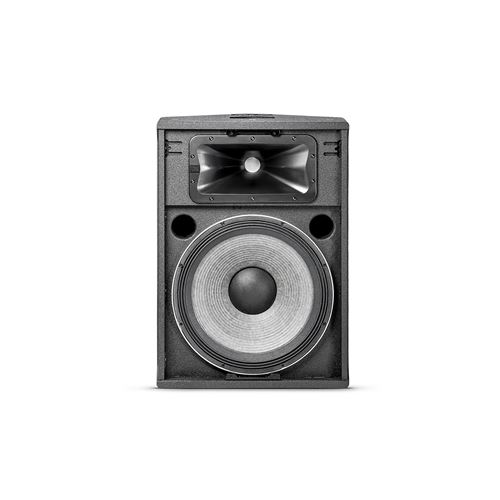

Components 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Coverage Pattern 90 x 50 degrees
Frequency Range (-10dB) 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (±3 dB) 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity 98 dB LF, 108 dB HF
Nominal Impedance LF = 8 ohms
HF = 20 ohms
Transducer Power Rating (AES 2 hour) 1000W LF, 200W HF cont 4000W LF, 800W HF peak
Dimensions (H x W x D) 640.1mm x 457.2mm x 327.7mm (25.2in x 18in x 12.9in)
Net Weight (each) 22.9 kg (50.5 lbs)
Maximum Peak Output *2 134 dB (Preset: VTX F15 80)
LF Driver 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer
HF Driver 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver

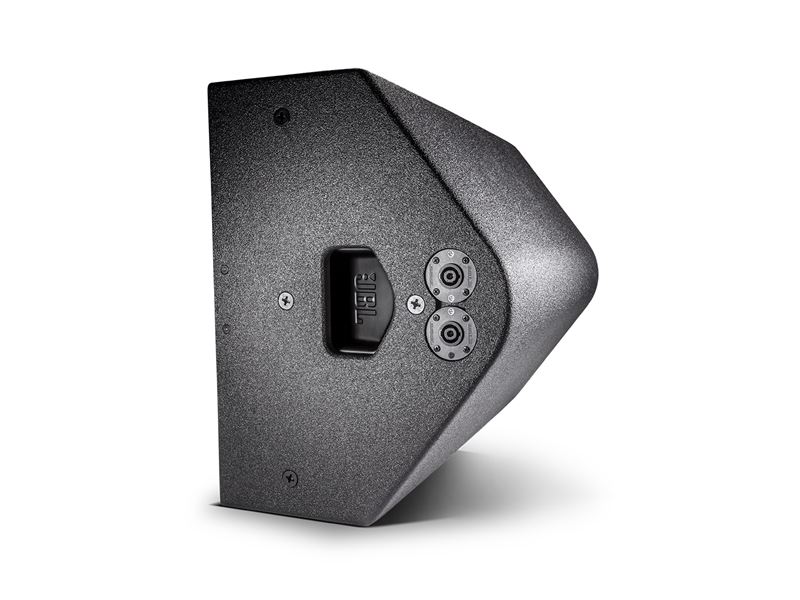

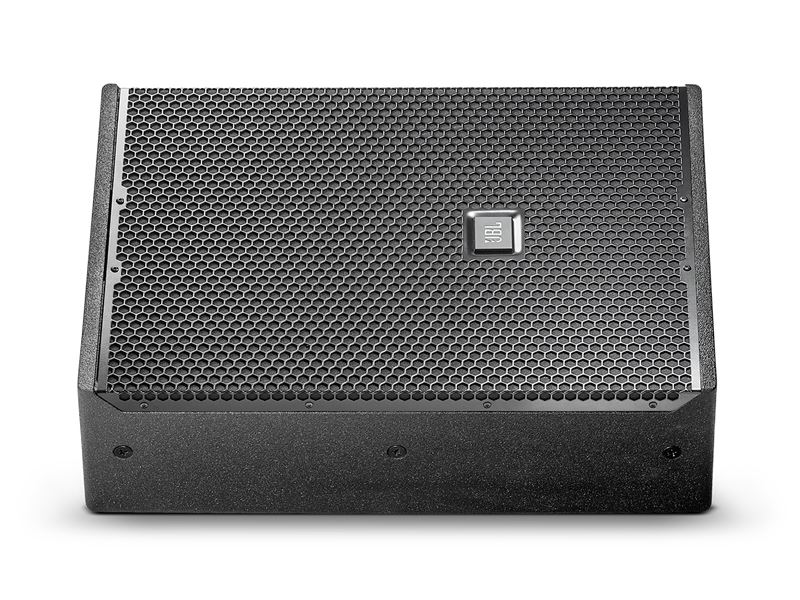

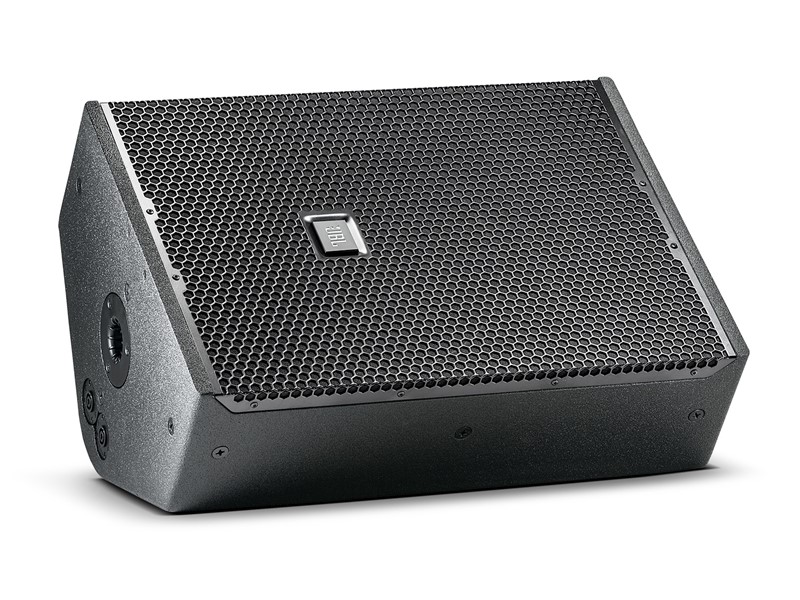

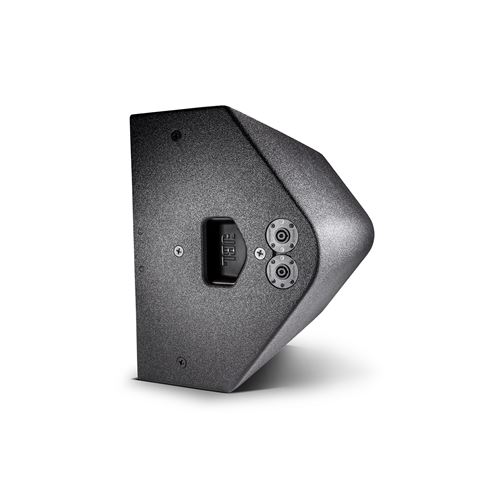

Enclosure Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle
Suspension / Mounting Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available
