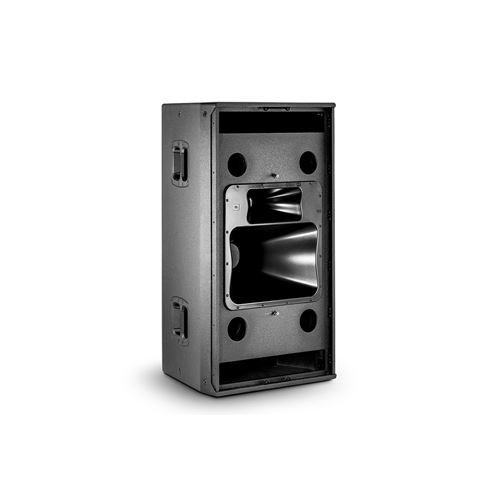

JBL VTX F Series (LF) 800W RMS (MF) 270W RMS (HF) 100W RMS Dual 15" High Performance 3-Way Loudspeaker with 60 x 40 Coverage

VTX F35/64

JBL Professional

Whatsapp for enquiry Email for enquiry






Features

  • High output 3-way enclosure featuring the D2 Dual Diaphragm Dual Voice Coil high frequency compression driver in a light-weight trapezoidal enclosure
  • Differential Drive™, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ MF and LF cone transducers
  • Multiple M10 attachment points facilitate a variety of suspension options
  • V5 Processing for use with Crown Audio I-Tech HD series amplifiers


Frequency Range (-10dB) 39 Hz - 18 kHz
Coverage Pattern (-6dB) /64: 60° Horizontal x 40°Vertical/95: 90° Horizontal x 50°Vertical
System Input Power Rating LF: 2 x 800 W Continuous (IEC / 100 hour)MF: 270 W Continuous (IEC / 100 hour)HF: 100 W Continuous (IEC / 100 hour)
Maximum Peak Output *2 /64: 143dB (Preset: F35/64 FR)/95: 143dB (Preset: -F35/95 FR)
System Processing Crown Audio I-Tech HD SeriesCrown Audio I-Tech 4x3500HD
Nominal Impedance LF = 2 x 8 ohms
MF = 8 ohms
HF = 8 ohms
LF Driver 2 x 2265H, 254 mm (15 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
MF Driver 1 x 2169H, 203 mm (8 in) dia., 76mm (3 in) Dual Voice Coil, Neodymium Differential Drive®, Direct Cooled™
HF Driver 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles

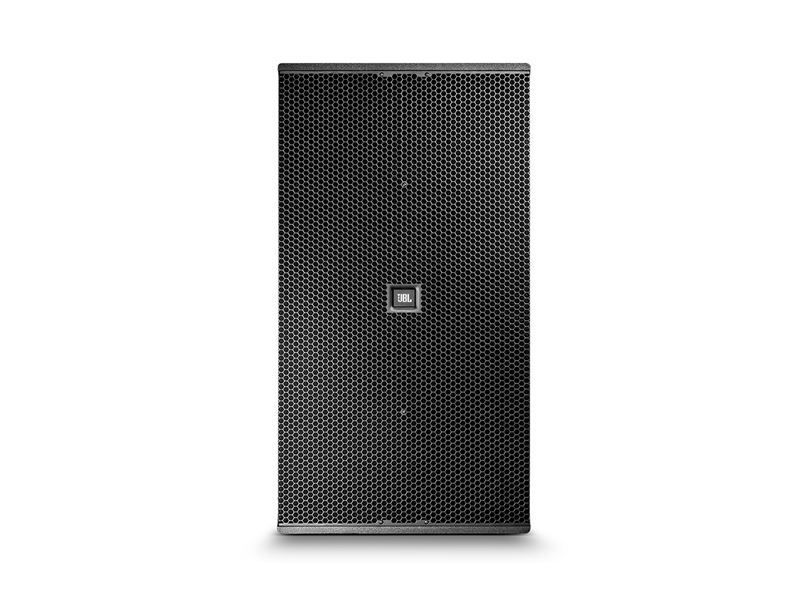

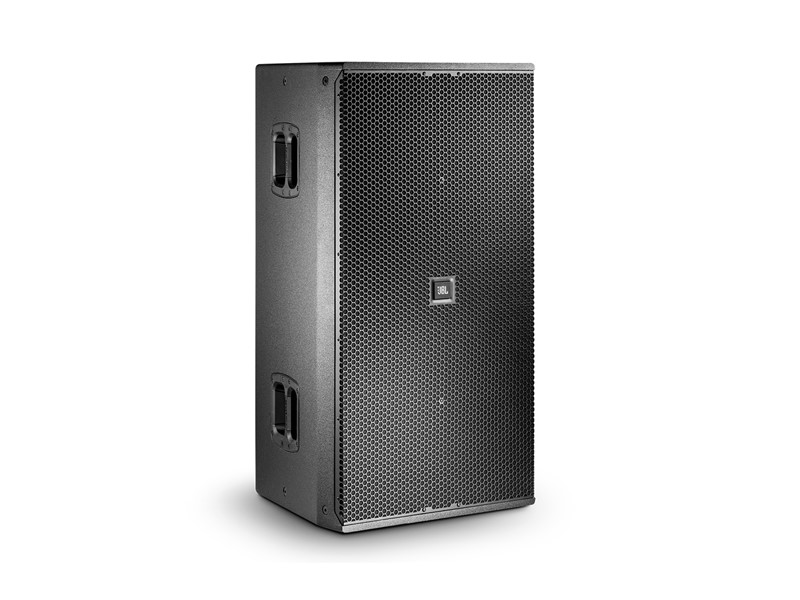

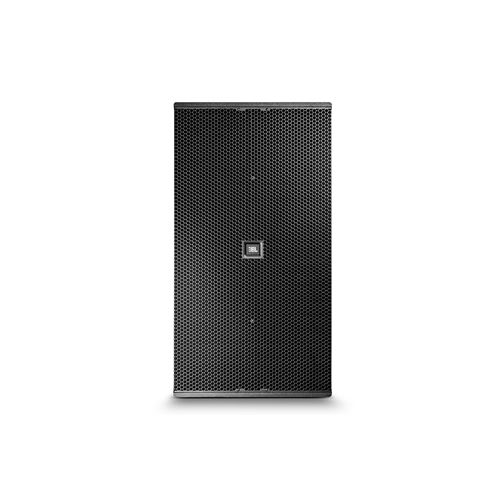

Grille Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
Input Connectors Neutrik® Speakon® NL-8 (2x): LF1: 1± | LF2: 2± | MF: 3± | HF: 4±
Dimensions (H x W x D) 1051.5 mm x 568.9 mm x 528.3 mm (41.4 in x 22.4 in x 20.8 in)
Net Weight (each) 52.6 kg (116 lbs)
System Type High Performance Dual 15” 3-Way Loudspeaker with 60 x 40 degree coverage
Suspension / Mounting Integrated M10 mounting points
