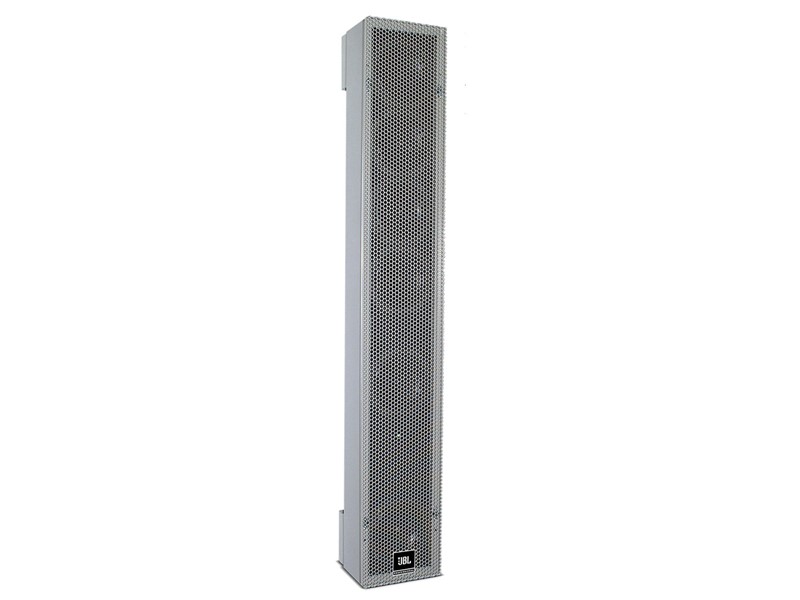

JBL Intellivox Series V-90 MKII 100 Watts RMS 6 x 4" ADC Digital Directivity Column Speaker with EN54:24 Certified (Custom)

IVX-577135

JBL Professional

Whatsapp for enquiry Email for enquiry






To improve intelligibility, the Model V90, utilises a preset vertical opening angle with a -4º steering angle to accurately cover the listening plane when mounted flat to a vertical surface. This results in a reduction of incoherent reflections from the mounting surface.


An additional advantage of vertical or even recessed mounting is that the Model V90 becomes architecturally unobtrusive.

This loudspeaker is EN 54-24 Compliant for life safety applications.


Applications

  • Transport Hubs
  • Places of Worship
  • Atriums
  • Shopping Centers
  • Any reverberant space where high quality speech reproduction is required
  • EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets



Frequency Range 220 - 10k Hz (+/-3 dB) 120 - 12k Hz (-10 dB)
Sensitivity (1 W / 4 m) 80 dBSPL
Maximum SPL (100 W / 4 m) 100 dBSPL
Coverage - Horizontal 130º (-6 dB)
Coverage - Vertical 30º (-6 dB)
Coverage - Steering Angle Vertical -4º
Coverage - Typical Throw 15 m
Rated Impedence (100 W tap) 100 Ω
Rated Impedence (50 W tap) 200 Ω
Rated Impedence (25 W tap) 400 Ω
Rated Noise Power 100 Wrms(100 W tap)
Rated Noise Voltage 100 Vrms
Control switches (Tap setting) 100 W / 50 W / 25 W
Control switches (Highpass filter) HPF active / Flat
Control switches (Correction EQ) EQ active / Flat
Pilot tone detection (Indicator) Green LED on front
Pilot tone detection (Frequency range) 20k - 23k Hz
Pilot tone detection (Minimum level) 6 Vrms
Suggested amplifiers JBL 100 V IndustryAmp series
Material Steel, powder coated
Mounting Points 4 x M5 left and 4 x M5 right
Dimensions (H x W x D) 865 x 134 x 92 mm (34.1” x 5.3” x 3.6”)
Standard Colours (Enclosure and grill) RAL 9007 (grey) or RAL 9010 (white)
Standard Colours (Speaker baffle) RAL 9011 (black)
Weight 10 kg (22 lbs)
Impedance 100 W tap : 100 Ω
50 W tap : 200 Ω
25 W tap : 400 Ω
Maximum SPL (1m) 92 dBSPL (100 W tap / HPF flat / EQ flat)
89 dBSPL (100 W tap / HPF active / EQ active)
Drivers 6 x 4” full range
Transformer Taps 100 W, 50 W, 25 W (100v only)
Enclosure Steel, powder coated
Outdoor Capability EN 54-24 Type B (outdoor)
Colors Enclosure and grill : RAL 9007 (grey), applies to part number 576125 : RAL 9010 (white), applies to part number 577125 : Custom color, applies to part number 577135
Speaker baffle : RAL 9011 (black), applies to all part numbers
Optional Accessories Multiple optional accessories available. Please see spec sheet or your local dealer for more info.
