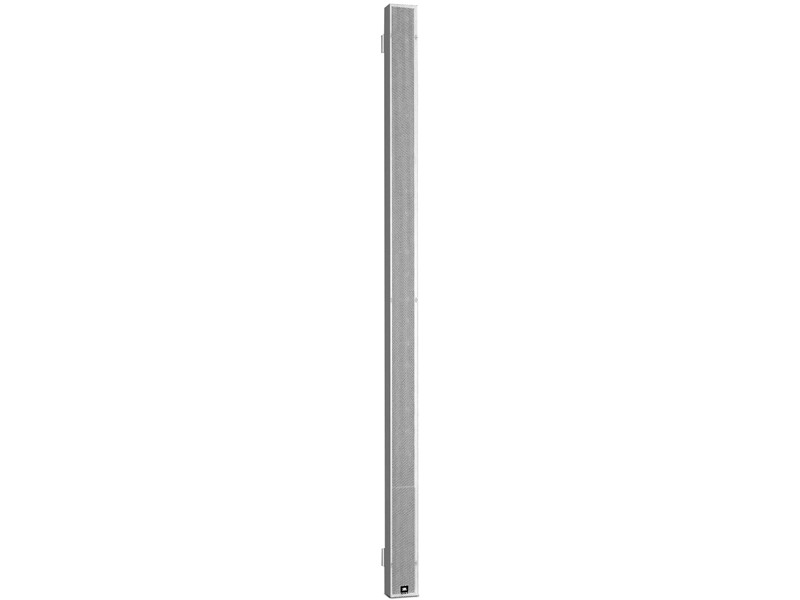

JBL Intellivox Series DS280 8 x 40 Watts RMS 16 x 4" Full Range Beam Shaping Self Powered Loudspeaker (Amp at Top)

IVX-587061/230

JBL Professional

Whatsapp for enquiry Email for enquiry






The Intellivox-DS280 offers excellent speech intelligibility even in demanding acoustic conditions. The Intellivox-DS280 is capable of providing a constant sound pressure level over a distance of up to 35 m, although a substantial extension of this range can be achieved in less demanding acoustical conditions. The sixteen, custom designed, 4” loudspeakers are driven by an eight channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The loudspeakers themselves are arranged in accordance with our patented algorithm.


An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing, pre-sets and surveillance features. Its compact array length makes the Intellivox-DS280 suitable for easy and unobtrusive implementation in even the most architecturally sensitive environment. The low frequency response of the system can be easily extended using a JBL sub woofer system.


Features

  • Superb Speech Intelligibility
  • Slim Unobtrusive Design
  • Extended Frequency Response
  • Wide Horizontal Dispersion
  • Vertical Beam Shaping (DDS Technology)
  • 32-bit floating point DSP
  • Control of Vertical Beam Shaping
  • Dual Line Inputs
  • Volume Control
  • Delay (up to 20 seconds)
  • 8 band parametric EQ
  • 8 user definable, password protected presets on board (recallable through third party control devices)
  • AVC (Automatic Volume Control) via build-in ambient mic.
  • Upgradeable firmware
  • Network Ready
  • Integral Surveillance
  • Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3

Applications

  • Transport Hubs
  • Places of Worship
  • Lecture Halls and Theatres
  • Conference Facilities
  • Atriums
  • Museums

Options

  • External Ambient Noise and Temperature Sensor
  • Input section with 1 x 0dBV and 1 x 100V
  • Input section with 2 x 100V
  • Full range of mounting accessories
  • Color matching service
