JBL AW Series 400 Watts RMS 12" All Weather High Power 2-Way Full Range Loudspeaker with 60 x 60 Coverage & EN54-24 (Grey)

AW266-LS

JBL Professional

Whatsapp for enquiry Email for enquiry

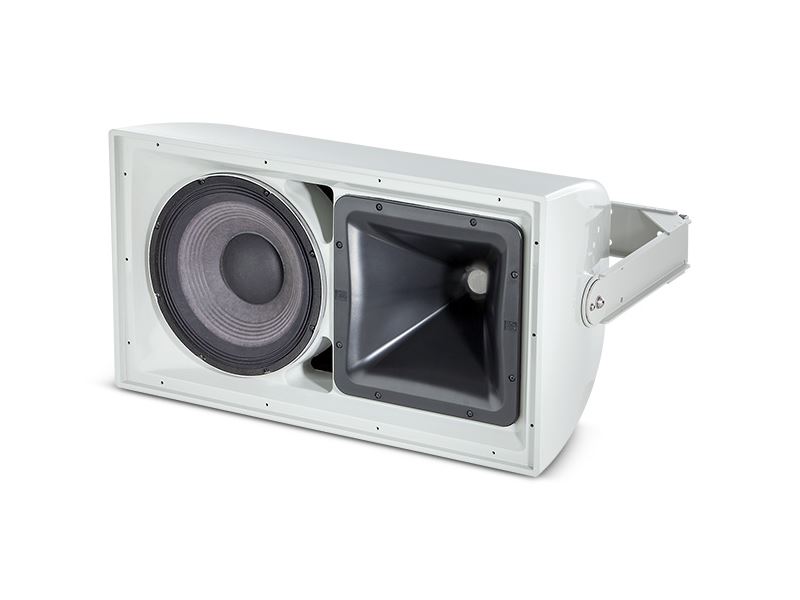

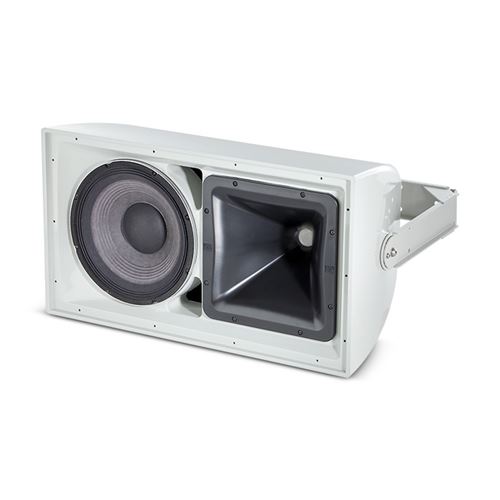

The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.


Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN 54-24 Compliant for life safety applications
  • 60° x 60° Coverage
  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks


Frequency Range (-10dB) 54 Hz – 20 kHz
Frequency Response (±3 dB) 102 Hz – 18 kHz
Coverage Pattern 60° x 60° waveguide
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Crossover Frequency 1.1 kHz
System Power Rating 400 W (1600 W peak) 100 hrs
Maximum SPL (1m) 125 dB SPL (131 dB peak)
Maximum SPL (@ 4m) 112.45 dB
System Sensitivity (1w @ 1m) 98 dB SPL
Sensitivity (1W @ 4m) 87.16 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W 100V: 400W, 200W
LF Driver 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 96 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity 113 dB SPL
Waveguide PT-H66HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

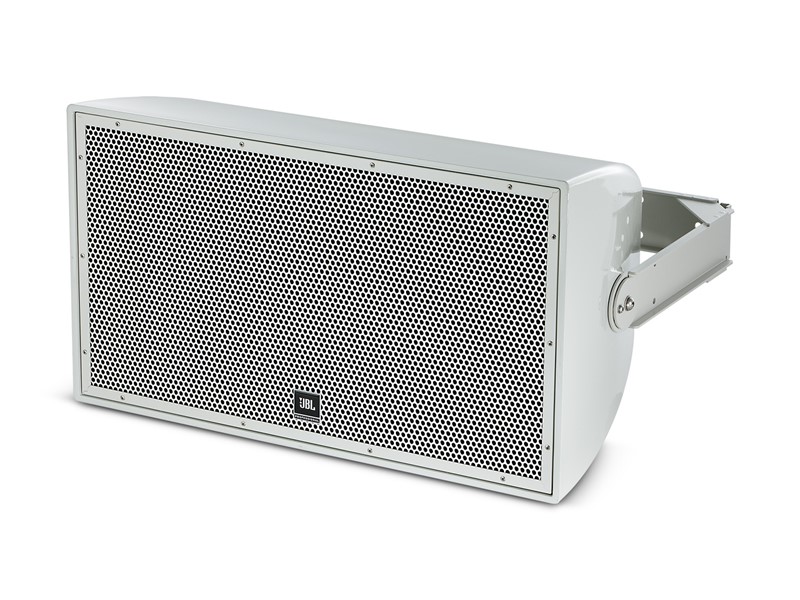

Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
Net Weight (each) 25.2 kg (55.5 lb)
