JBL AW Series 600 Watts RMS 15" All Weather High Power 2-Way Full Range Loudspeaker with 90 x 50 Coverage (Black)

AW595-BK

JBL Professional

Whatsapp for enquiry Email for enquiry

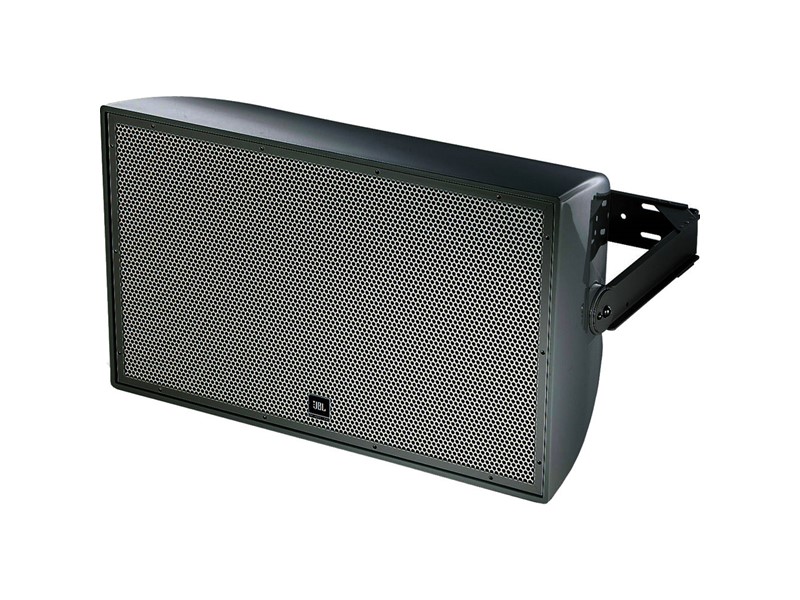

The AW595 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW595 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.


Features

  • Weather-Resistant, All Fiberglass Enclosure
  • 90° x 50° Coverage
  • 2265H-1 Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included

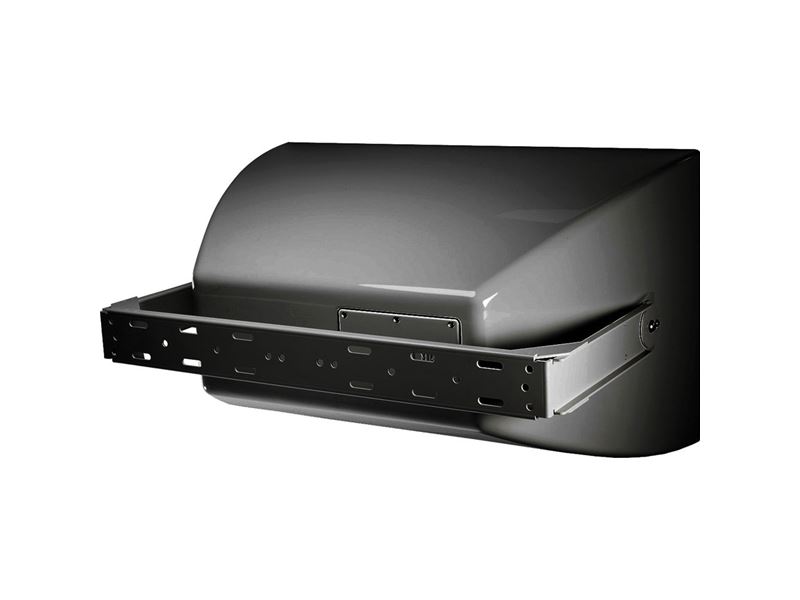

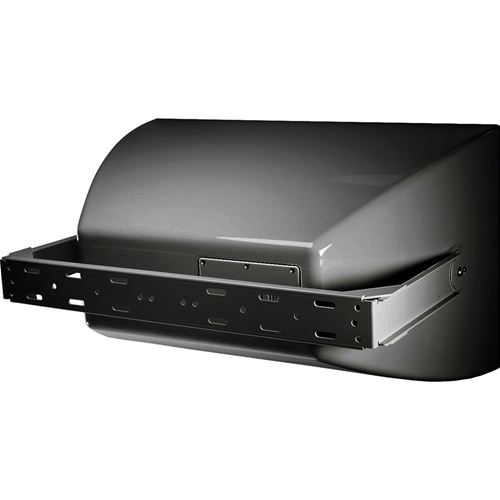

  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks


Frequency Range (-10dB) 35 Hz – 20 kHz
Frequency Response (±3 dB) 55 Hz – 19 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.2 kHz
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1w @ 1m) 100 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
LF Driver 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal LF Driver Impedance 8 ohms
LFD Sensitivity (1W @ 1m, within operational band) 98 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal HF Driver Impedance 8 ohms
HFD Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H95HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (black available)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental IP56 per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
Crossover Modes Passive
