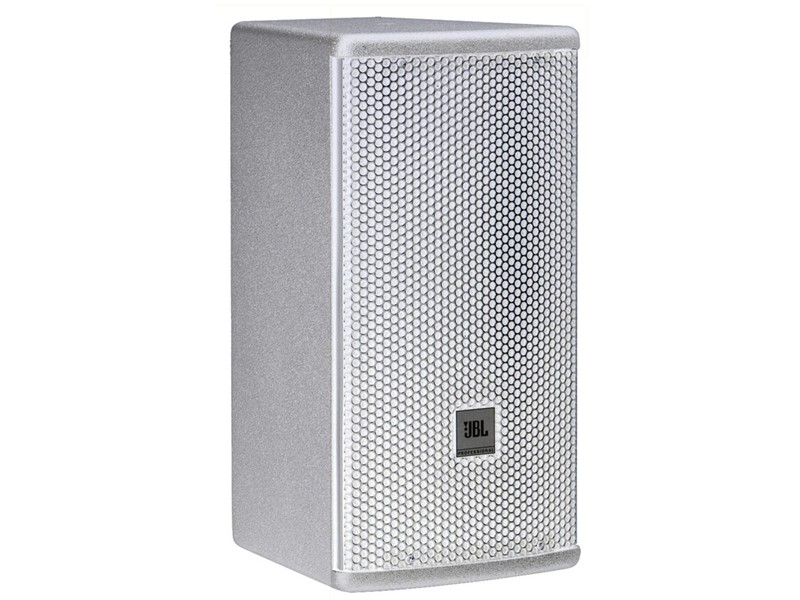

JBL AE Compact Series 320 Watts Program 6.5" Ultra Compact 2-Way Loudspeaker with 90 x 90 Coverage (White)

AC16-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






High output, 2-way loudspeaker systems combining flexibility with high fidelity


Features

  • 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
  • 165 mm (6.5 in) LF transducer
  • Ultra compact enclosure
  • 320W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory


Frequency Range (-10dB) 55 Hz -20 kHz
Frequency Response (±3 dB) 65 Hz -18 kHz
System Power Rating 250 W (AES rated)
160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)
Nominal Impedance 16 Ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)
Net Weight (each) 7.2 kg (15.8 lb)
Crossover Modes Passive
Maximum SPL (1m) 110 dB
System Sensitivity (1w @ 1m) 90 dB SPL
LF Driver 1 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
Nominal LF Driver Impedance 16 Ohms
HF Driver 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
