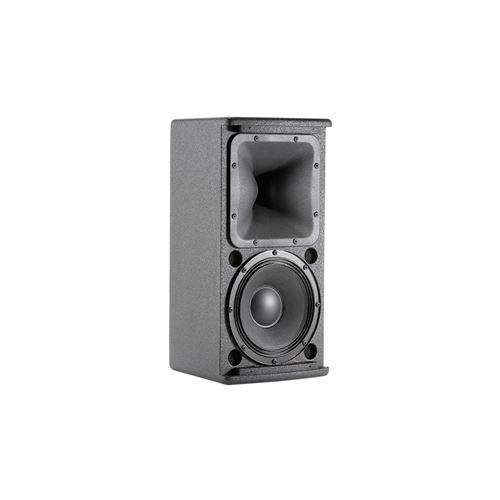

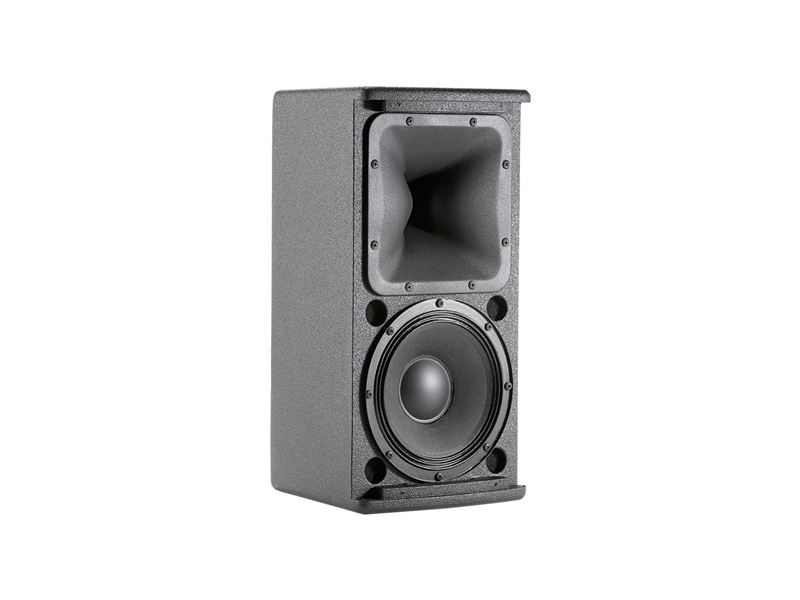

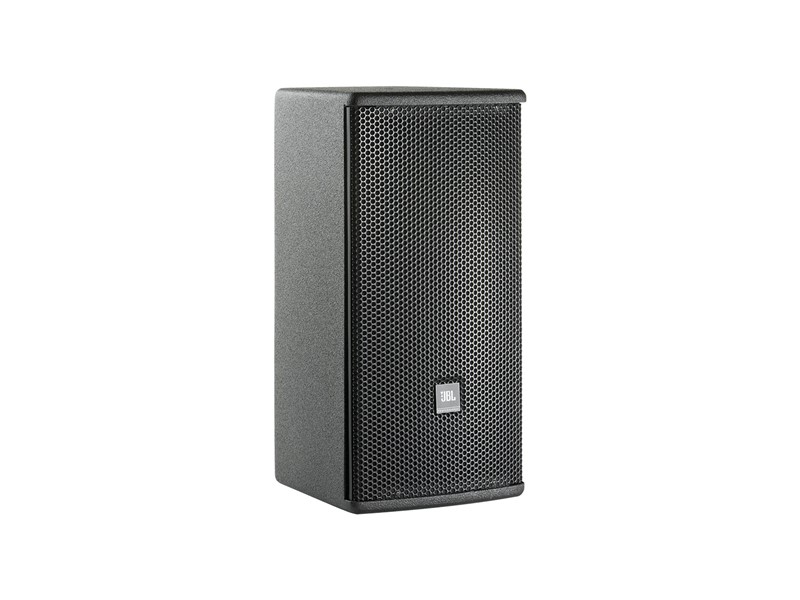

High output, 2-way loudspeaker systems combining flexibility with high fidelity
Features
- 1” Exit Compression Driver Coverage PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 500W Program
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
| Frequency Range (-10dB) | 52 Hz - 20 kHz |
| Frequency Response (±3 dB) | 63 Hz – 19 kHz |
| System Power Rating | 375 W (AES rated) |
| 250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated) | |
| Impedance | 8 ohms |
| Coverage Pattern | /26: 120° x 60��/95: 90° x 50° |
| Dimensions (H x W x D) | 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in) |
| Net Weight (each) | 12.8 kg (28.2 lb) |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 116 dB |
| System Sensitivity (1w @ 1m) | 92 dB SPL |
| LF Driver | 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil |
| Nominal LF Driver Impedance | 8 Ohms |
| HF Driver | 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM. |
| Environmental | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
