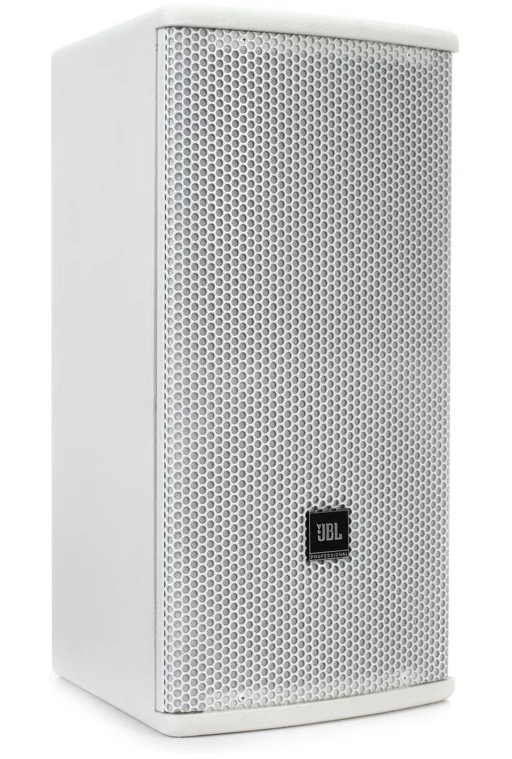

JBL AE Compact Series 500 Watts Program 8" Compact High Output 2-Way Loudspeaker with 120 x 60 Coverage (White)

AC18/26-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






High output, 2-way loudspeaker systems combining flexibility with high fidelity


Features

  • 1” Exit Compression Driver Coverage PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory


Frequency Range (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 375 W (AES rated)
250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)
Impedance 8 ohms
Coverage Pattern /26: 120° x 60��/95: 90° x 50°
Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
Net Weight (each) 12.8 kg (28.2 lb)
Crossover Modes Passive
Maximum SPL (1m) 116 dB
System Sensitivity (1w @ 1m) 92 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
