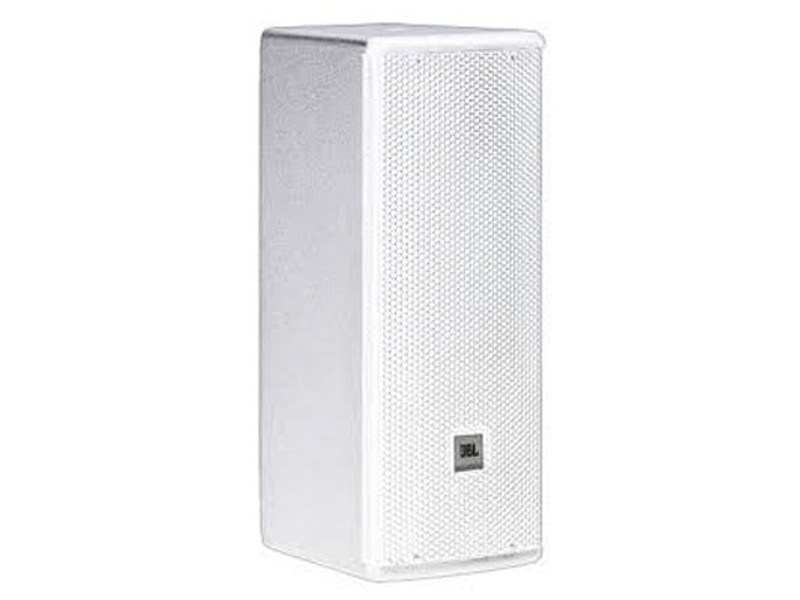

JBL AE Compact Series 450 Watts Program Dual 5.25" Ultra Compact 2-Way Loudspeaker with 90 x 90 Coverage (White)

AC25-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






High output, 2-way loudspeaker systems combining flexibility with high fidelity


Features

  • 90° x 90° waveguide with 25 mm (1 in) dome tweeter
  • 135 mm (5.25 in) LF transducer
  • Ultra Compact 2-way Loudspeaker with 2 x 5.25” LF
  • 450W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket


Frequency Range (-10dB) 80 Hz -20 kHz
Frequency Response (±3 dB) 90 Hz -18 kHz
System Power Rating 300 W (AES rated)
225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated)
Impedance 16 ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 377.8 x 150.3 x 177.8mm (14.9 x 5.9 x 7.0in)
Net Weight (each) 7.5 kg (16.5 lb)
Crossover Modes Passive
Maximum SPL (1m) 115 dB
System Sensitivity (1w @ 1m) 91 dB SPL
LF Driver 2 x JBL 225H, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance 16 Ohms
HF Driver 1 x JBL 201J, 25mm (1 in) voice coil dome tweeter
Enclosure 12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 4 x M6 rear for MultiMount® MM-022-BT, MM-024-BT, or MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529.
