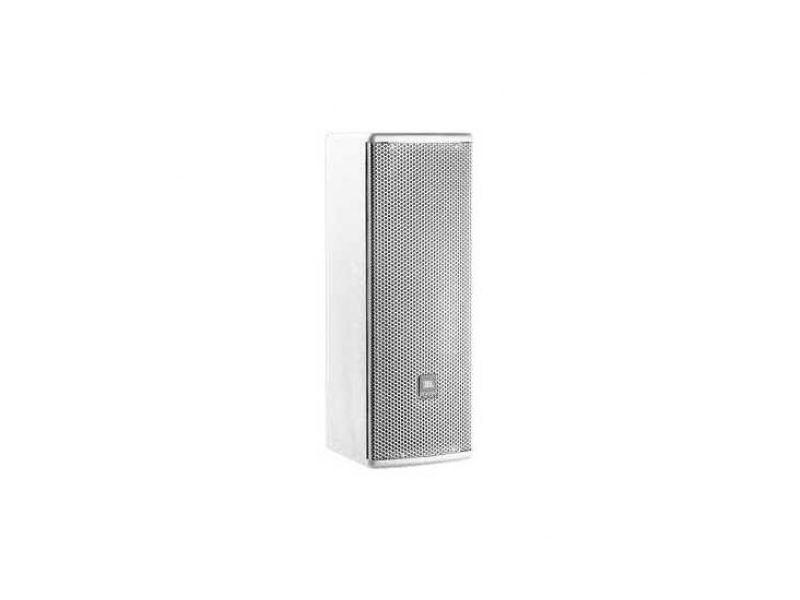

JBL AE Compact Series 750 Watts Program Dual 8" Compact High Output 2-Way Loudspeaker with 120 x 60 Coverage (White)

AC28/26-WH

JBL Professional

Whatsapp for enquiry Email for enquiry







High output, 2-way loudspeaker systems combining flexibility with high fidelity


Features

  • 1” Exit Compression Driver with PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory


      Frequency Range (-10dB) 53 Hz - 20 kHz
      Frequency Response (±3 dB) 65 Hz – 20 kHz
      System Power Rating 700 W (AES rated)
      375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
      Impedance 8 ohms
      Coverage Pattern /26: 120° x 60��/95: 90° x 50°
      Dimensions (H x W x D) 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
      Net Weight (each) 18.6 kg (40.9 lb)
      Crossover Modes Passive
      Maximum SPL (1m) 120 dB
      System Sensitivity (1w @ 1m) 94 dB SPL
      LF Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
      Nominal LF Driver Impedance 8 Ohms
      HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
      Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
      Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount® MM-120-BT.
      Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
