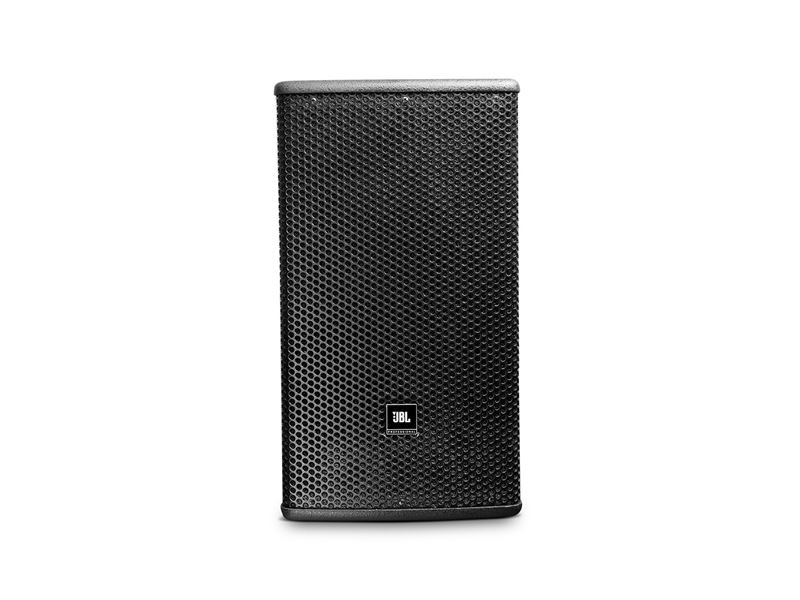

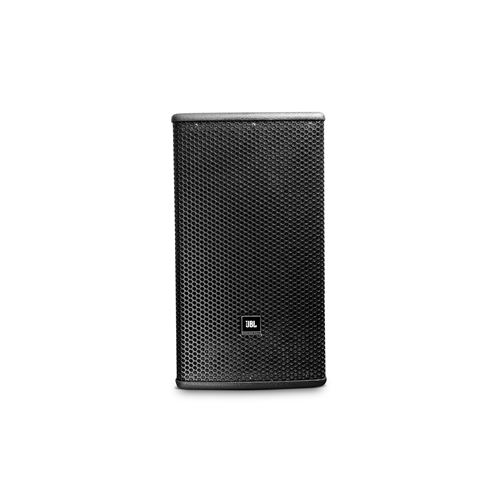

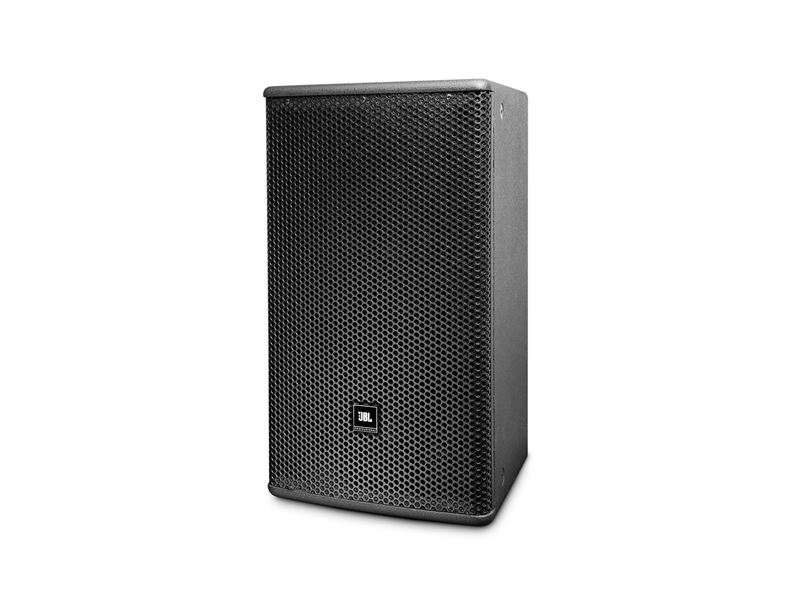

JBL AE Expansion Series 300 Watts Program 8" 2-Way Full Range Loudspeaker with 90 x 50 Coverage (Black)

AC895

JBL Professional

Whatsapp for enquiry Email for enquiry

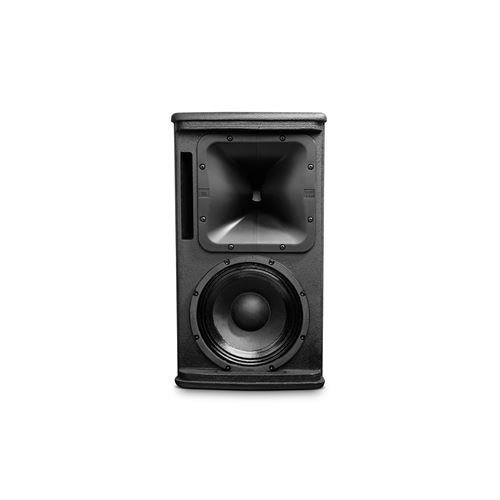

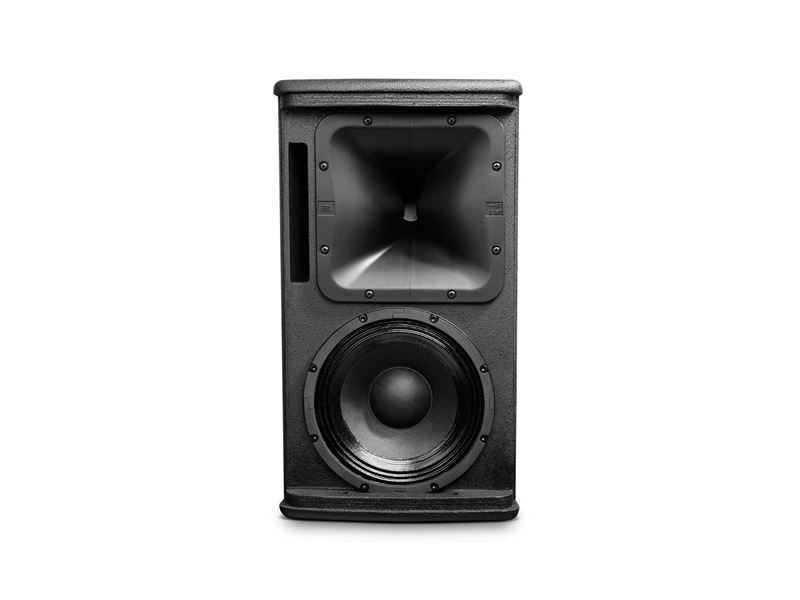

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications


Features

  • Compact enclosure
  • 209 mm (8 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities


    Frequency Range (-10dB) 70 Hz - 20 kHz
    Frequency Response (±3 dB) 90 Hz - 18 kHz
    System Sensitivity (1w @ 1m) 94 dB
    Nominal Impedance 8 ohms
    Maximum SPL (1m) 116 dB (122 dB peak)
    System Power Rating 250W (1000W peak), 2 hrs (AES rated)
    150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)
    Coverage Pattern 90° x 50° (H x V)
    Crossover 2 kHz
    LF Driver 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
    HF Driver 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
    Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
    Enclosure 15 mm multi-ply hardwood plywood
    Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
    Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
    Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
    Dimensions (H x W x D) 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in
    Net Weight (each) 10.2 kg (22.4 lbs)
    Crossover Modes Passive
    Nominal LF Driver Impedance 8 ohms
    Nominal HF Driver Impedance 8 ohms
