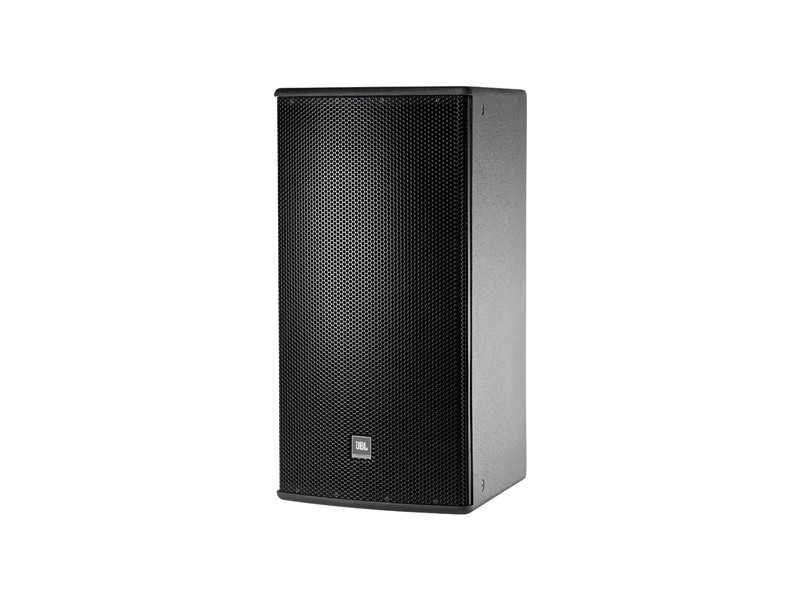

JBL AE Application Engineered Series 500 Watts RMS 15" 2-Way Full Range with 60 x 40 Coverage (Black)

AM5215/64

JBL Professional

Whatsapp for enquiry Email for enquiry

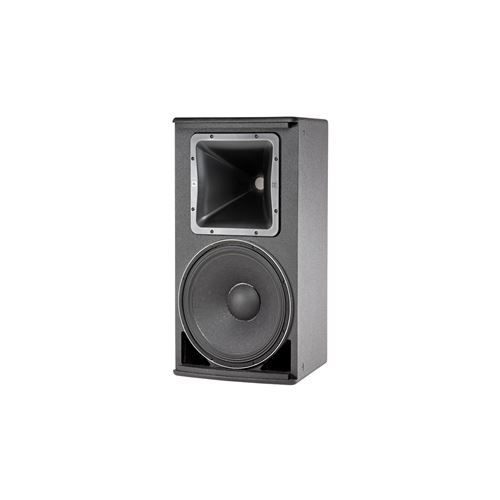

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.


Features

  • 60° x 40° Coverage
  • 265H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Available in Black, White and WRC/WRX weather resistant finishes

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues


Frequency Range (-10dB) 35 Hz - 20 kHz
Frequency Response (±3 dB) 41 Hz – 18 kHz
Coverage Pattern /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°
Directivity Factor (Q) 14.5
Directivity Index (DI) 11.6 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 2 kHz
Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
System Power Rating Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.
System Sensitivity (1w @ 1m) Passive mode: 98 dB SPL
LF Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 99 dB SPL
HF Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity 115 dB SPL
Waveguide PT-H66HF-1
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)
Net Weight (each) 25.0 kg (55 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
System Power Rating Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
