JBL AE Series 2400 Watts RMS Dual 18" High Power Subwoofer System (Black)

ASB6128

JBL Professional

Whatsapp for enquiry Email for enquiry

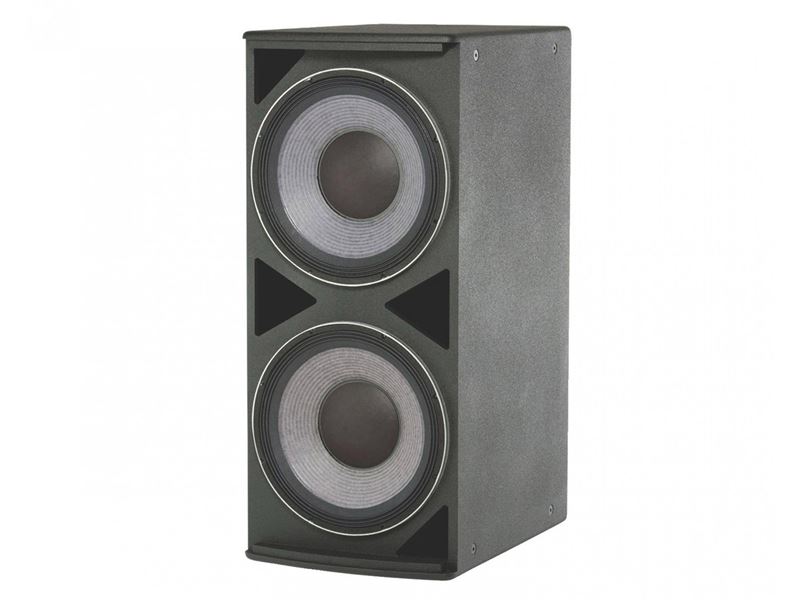

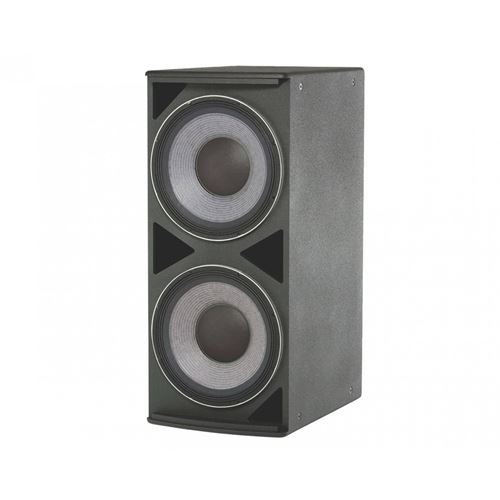

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.


Features

  • Large vent area for high output.
  • Parallel/Discrete Switchable.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.


Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
System Power Rating 1600 W (6400 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
LF Driver 2 x JBL 2242H 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil
Nominal LF Driver Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 161 lbs. (73 kgs)
