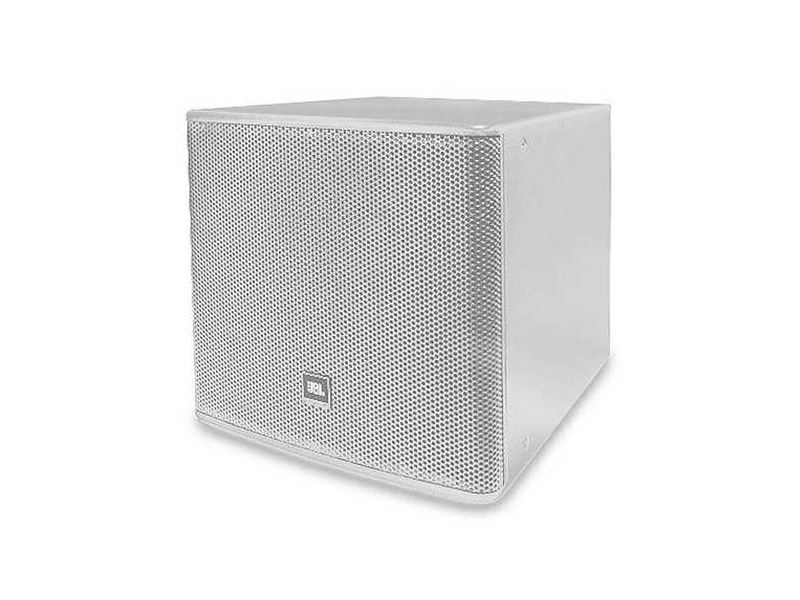

JBL AE Series 2000 Watts RMS 18" Ultra Long Excursion High Power Subwoofer (White)

ASB7118-WH

JBL Professional

Whatsapp for enquiry Email for enquiry

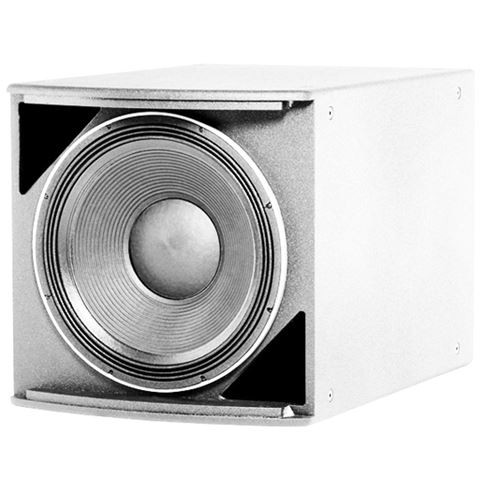

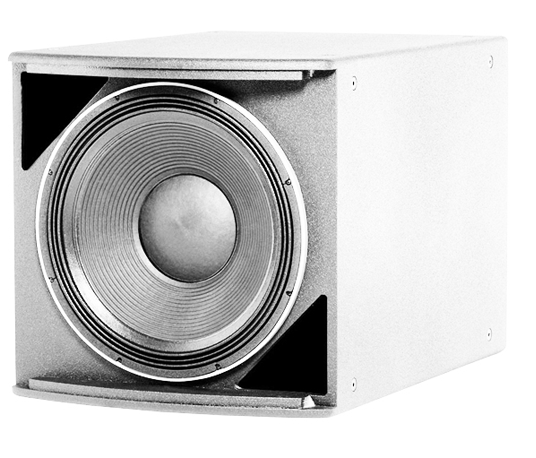

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").


Features

  • 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 2000 watts continuous pink noise,
    8000 watts peak power handling capacity
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products


    Frequency Range (-10dB) 22 Hz - 1 kHz
    Frequency Response (±3 dB) 34 Hz - 1 kHz
    Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
    System Power Rating 1200 W (4800 W peak), 100 hrs.
    Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
    System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
    Nominal Impedance 8 ohms
    LF Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
    Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
    Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
    Finish Black DuraFlex™ finish. White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Environmental Mil-Std 810; IP-x3 per IEC529.
    Dimensions (H x W x D in vertical orientation) 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
    Net Weight (each) 42.9 kg (94.5 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
    Nominal LF Driver Impedance 8 ohms
