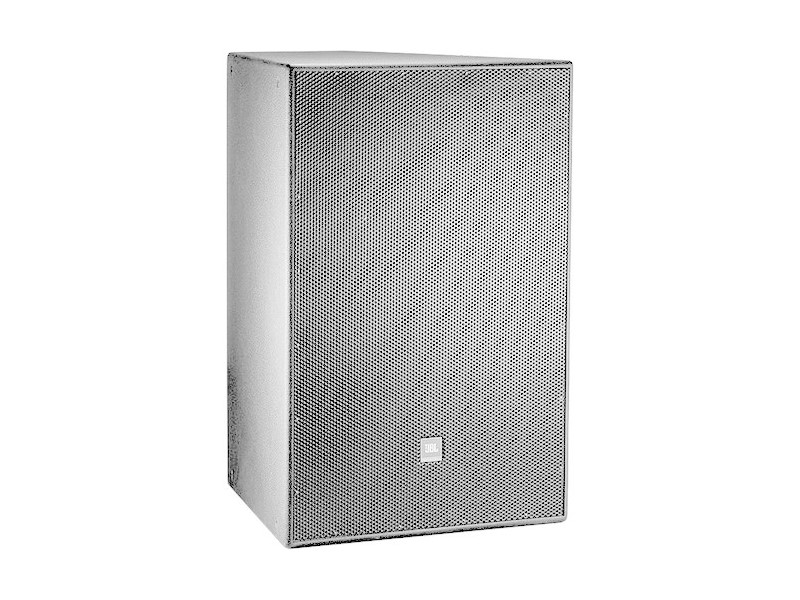

JBL PD5000 Series (LF) 1200W (MF/HF) 300W 12" Precision Directivity Full Range 3-Way Loudspeakers with 60 x 60 Coverage (White)

PD6322/66-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.


Features

  • Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
  • High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
  • Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.


Frequency Range (-10dB) 41 Hz to 17 kHz
Frequency Response (±3 dB) 49 Hz to 15 kHz
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) Tri-amp mode: LF: 128 dB-SPL cont avg (134 dB peak)
MF: 135 dB-SPL cont avg (141 dB peak) HF: 135 dB-SPL cont avg (141 dB peak)
Passive mode: 135 dB-SPL cont avg (141 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 110 dB-SPL (mid/high section only)
LF Driver 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
MF Driver CMCD-82H cone midrange compression driver with integral 200 mm (8 in) diameter Differential Drive® dual 75 mm (3 in) voice coil driver
HF Driver 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood.
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight (each) 71.4 kg (157.5 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
Nominal Impedance 4 ohms (2 x 8 ohms, internally wired in parallel)
Nominal LF Driver Impedance 4 ohms (2 x 8 ohms, internally wired in parallel)
Nominal MF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
