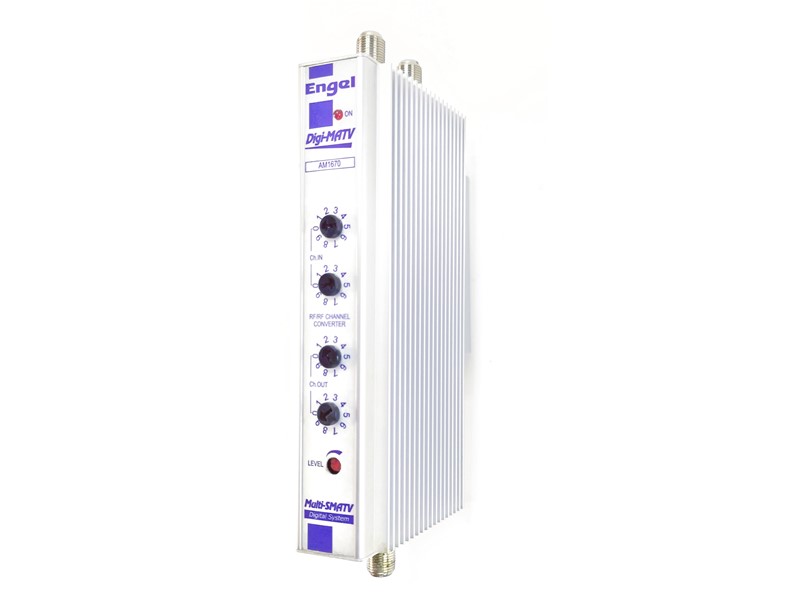

ENGEL RF-RF Channel Converter

AM-1670

ENGEL

Whatsapp for enquiry Email for enquiry






DigiMATV-AM1670 Converters reproduce any radio frequency channel (in the V/UHF band) in another channel on the same band. They are extremely useful for correct handling of adjacent channels as they have an extraodinary selectivity (using SAW filters).

They incorporate an entry loop for unscrambling with other converters, output for a  single channel amplifier and adjustment of channels and standards by rotating selector switches.


Input Frequency 47-862MHz
Input Channels 2-12, S3-S41, 21-69 (B/G)
Input Level (Analog) 64-94dBuV
Input Loop Losses 1.1dB max
IF Internal BW 38.9/8 MHz
Selectivity (fv-1, fv+1) 46-45dB
Output Frequency 120-862
Output Channels 5-12, S3-S41, 21-69 (B/G)
Output Level 80dBuV
Adjustment 0/-15dB
In-out Connection 2F-1F
Power Consumption 15V 200mA
Size 34 x 145 x 75 mm
