Broadband amplifier ideal for medium and small collective terrestrial TV distributions.

Multiband amplifier with 4 inputs (BI/BIII-FM-UHF-UHF) and independent regulation for each band. Very high gain amplifier: 33dB for VHF-FM and up to 50dB for UHF; and maximum output level of 122dBμV.

This amplifier allows to power mast preamps or active 24Vdc UHF antennas. It also has a test output (-30dB) to make measurements without interrupting the service to users.

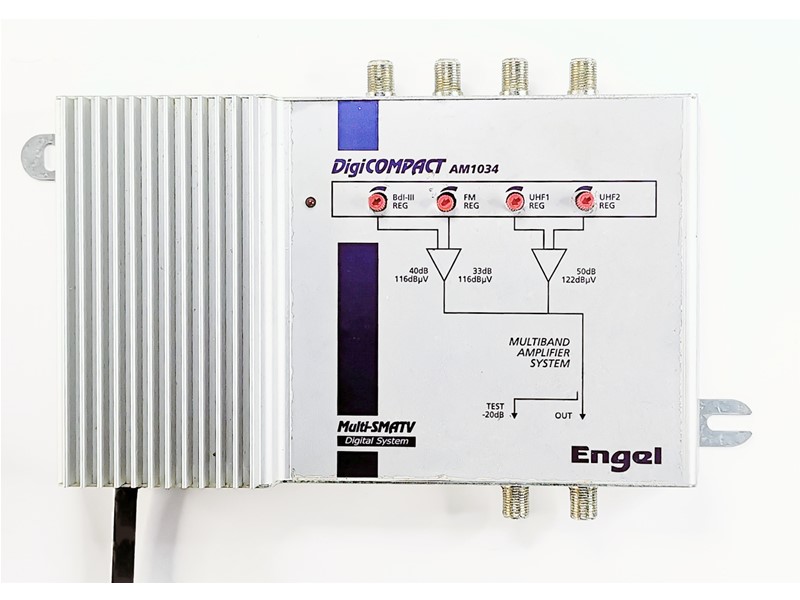

What technical specifications does the Engel AM1034 Multiband Amplifier have?

• Compact broadband amplification central (V/UHF) for medium and small collective installations
• High gain (50 dB) and output level (122 dBμV) with very good distortion
• BI/III-FM-UHF-UHF separate amplification with independent regulation for each sub-band
• 24Vdc preamps power supply
• 230Vac mains supply
