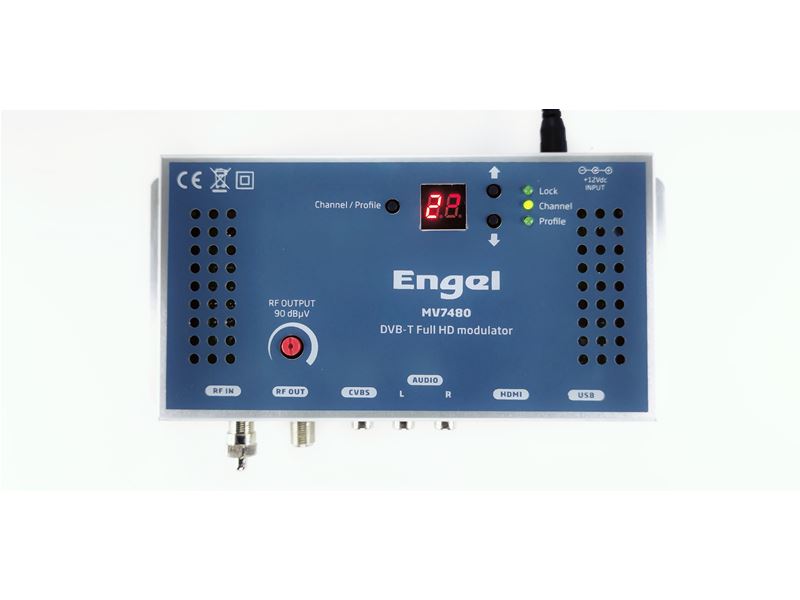

The MV7480 is a high quality DVB-T “Home” modulator which accepts one HDMI or analog Stereo Audio / CVBS signal and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the MV7480 the ideal solution for distributing HD or analog TV signals coming from e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology.
The user has the ability to control the device by either using the onboard SSD (Seven Segment Display) interface and keypad for quick installation or by using the USB interface with the appropriate software accompanying the MV7480 for advance programming.
Finally, the MV7480 metal case provides excellent electromagnetic shielding as well as great temperature dissipation and rigidness.
Features
- High Quality and Performance
- CVBS and HDMI Input (with Redundant Source Mode)
- Very Clean RF Spectrum
- MER Value ~ 35dB
- RF Output Frequencies 174...862MHz
- H.264 HD Encoder Bitrate 1-19Mbps
- HDCP Support (On/Off Selectable)
- Very Friendly User Interface for Quick Installation
- USB Interface for Advanced Programming
- External Power Supply
