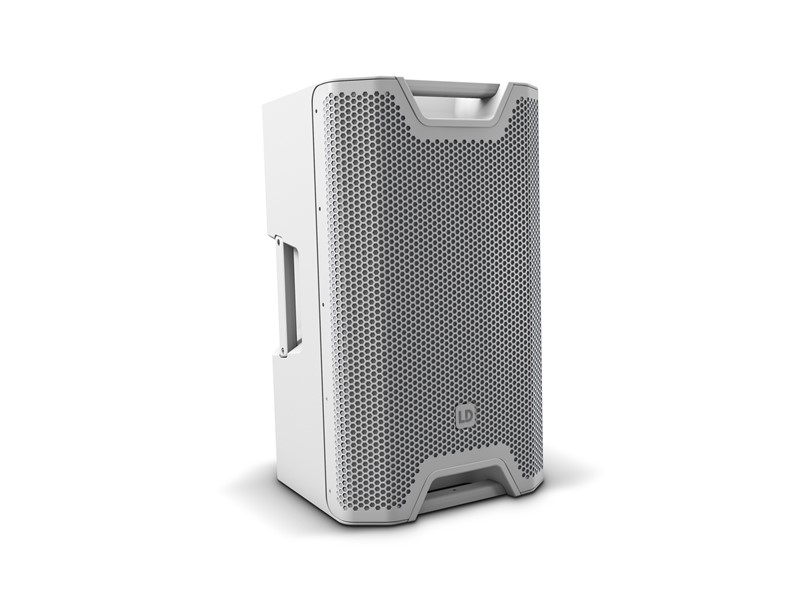

LD SYSTEMS ICOA Series 250 Watts 12" Passive Coaxial Loudspeaker (White)

ICOA-12/W

LD Systems

Whatsapp for enquiry Email for enquiry

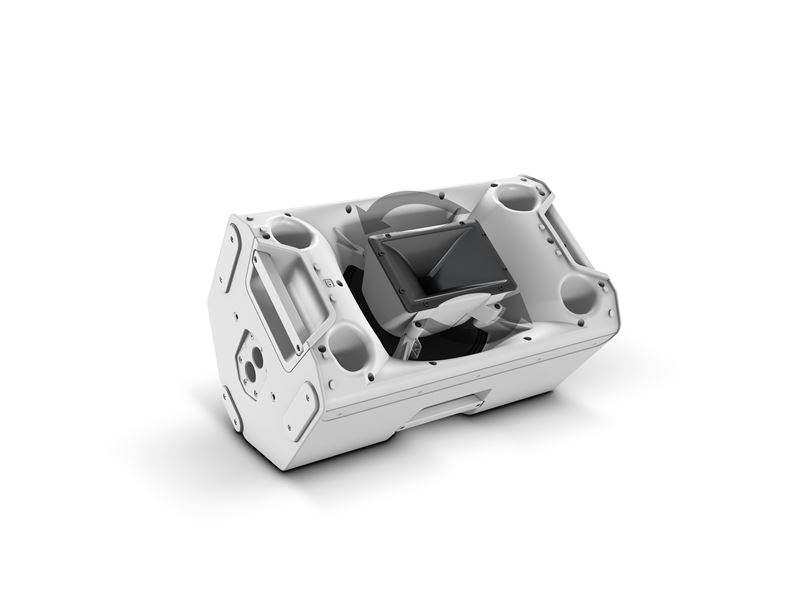

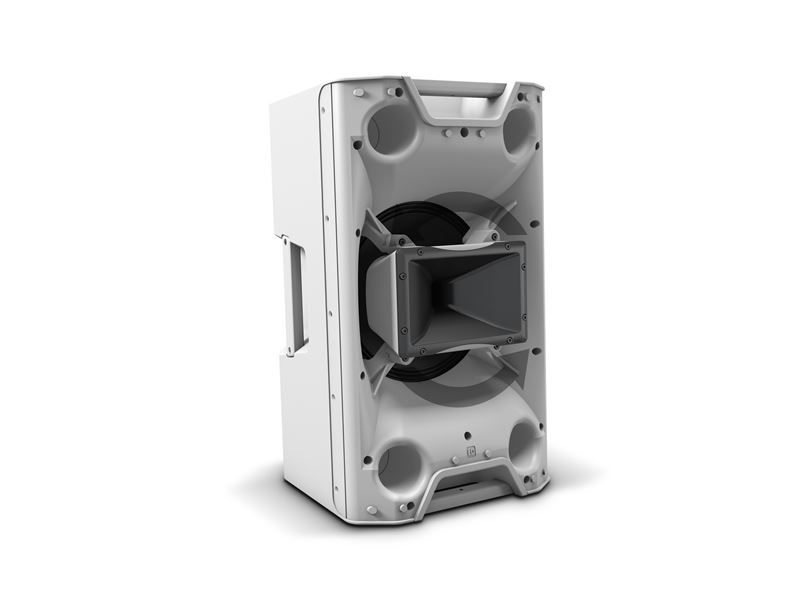

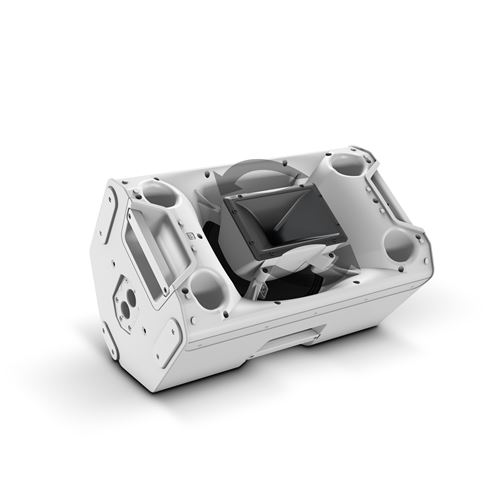

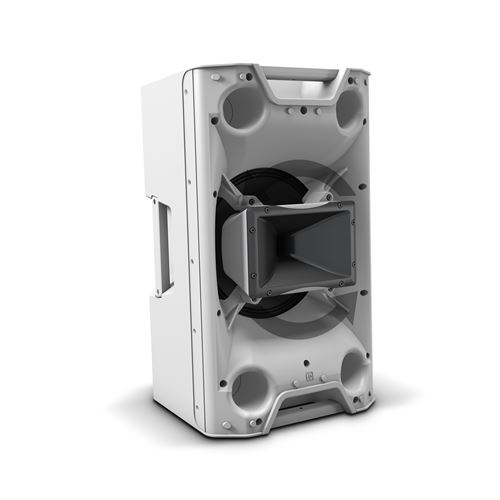

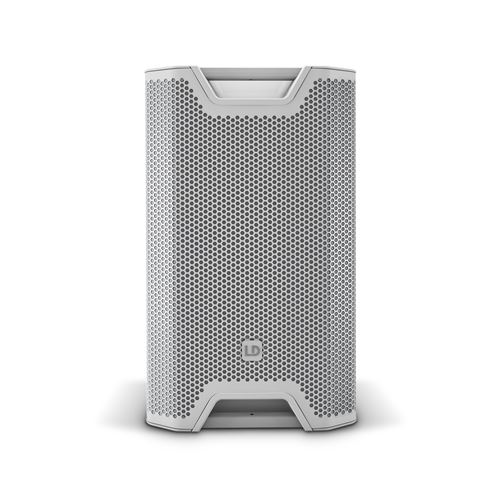

This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility. The white version with a white grille blends in subtly into any environment and doesn't distract.

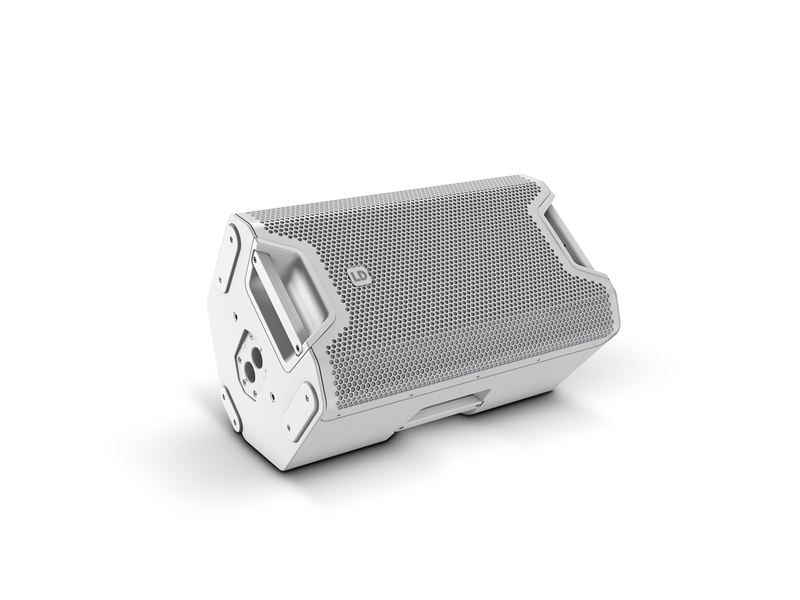

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

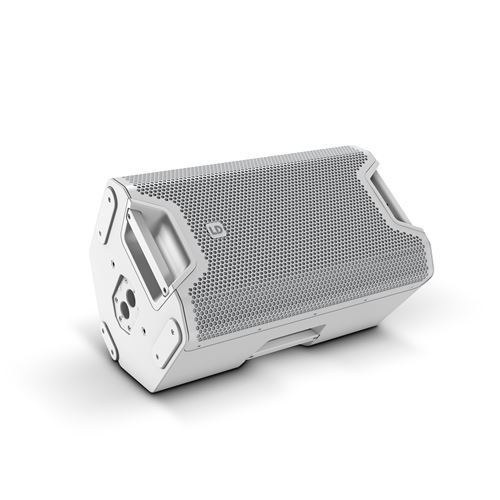

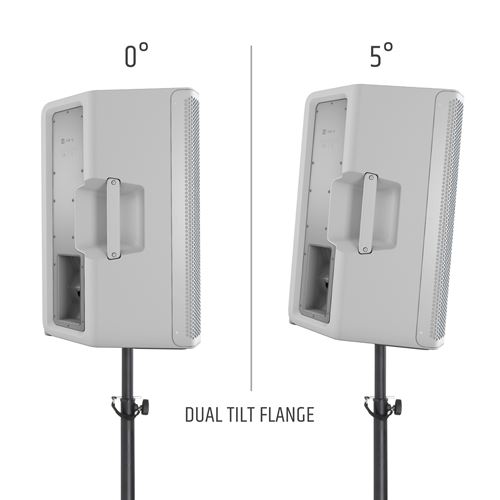

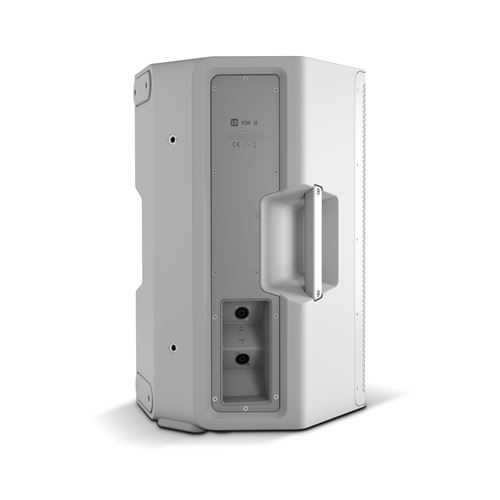

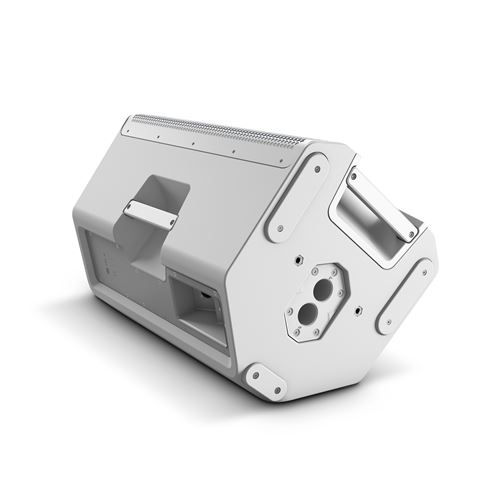

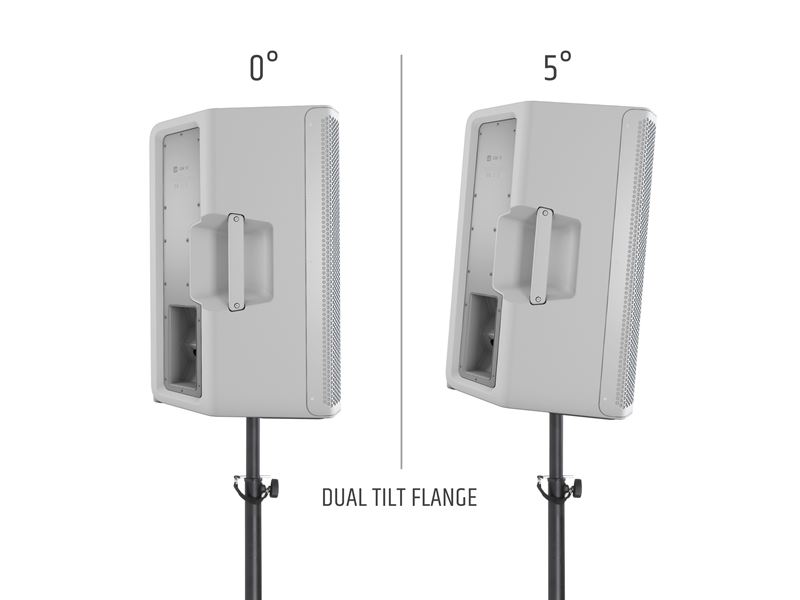

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.





General
Product type PA loudspeaker
Type Passive
Color White (RAL 9003)
Low/mid driver dimensions 12 "
Woofer size 304.8 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF driver size 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1.4 "
HF driver voice coil 35 mm
Dispersion (H x V) 90° x 50°
Load rating (RMS) 250 W
Peak power 1000 W
Frequency response 55 - 20000 Hz
Crossover frequency 2000 Hz
SPL (1W/1m) 93 dB
Max. SPL 123 dB
Impedance 8 Ohm(s)
Loudspeaker inputs 1

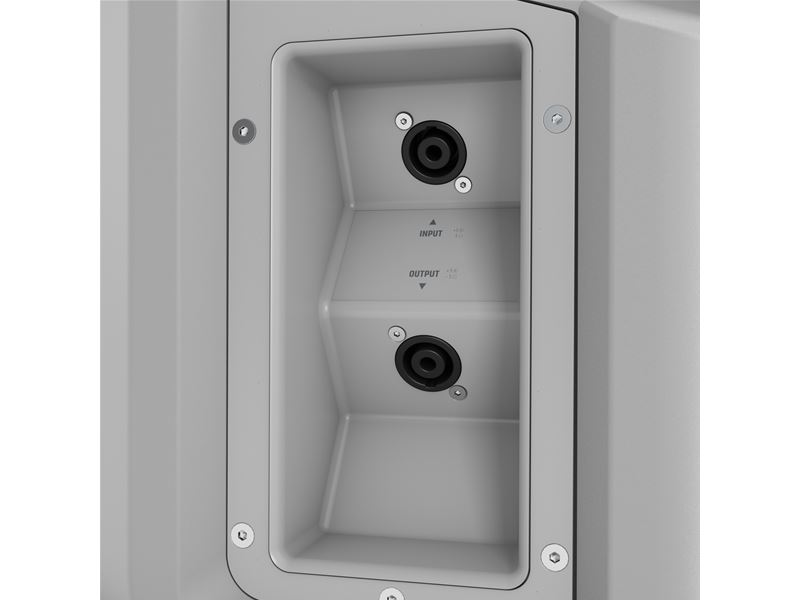

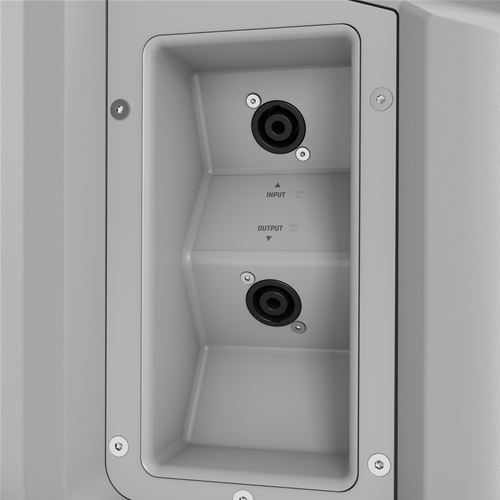

Speaker input connections Speakon compatible
Loudspeaker outputs 1
Speaker output connections Speakon compatible
Cabinet material Polypropylene
Cabinet construction Bass Reflex

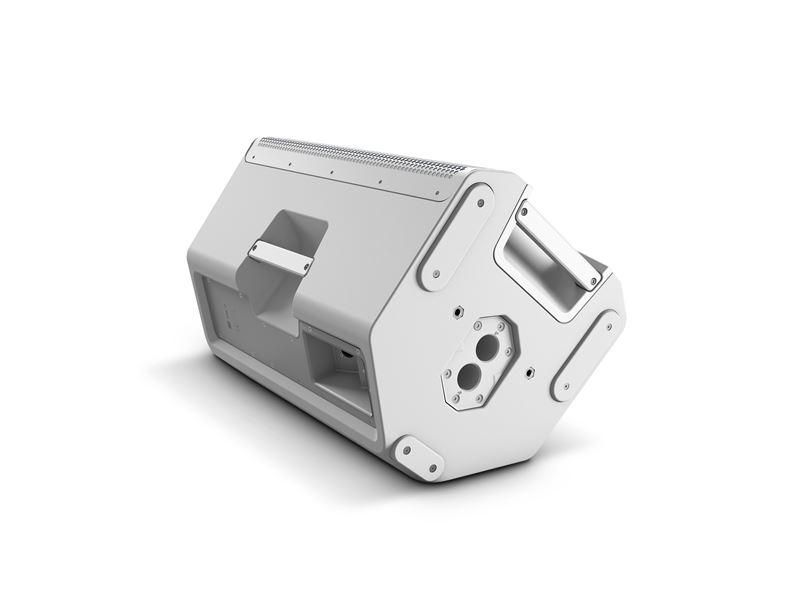

Mounting 36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle 55 °
Width 375 mm
Height 635 mm
Depth 396 mm
Weight 19,8 kg
