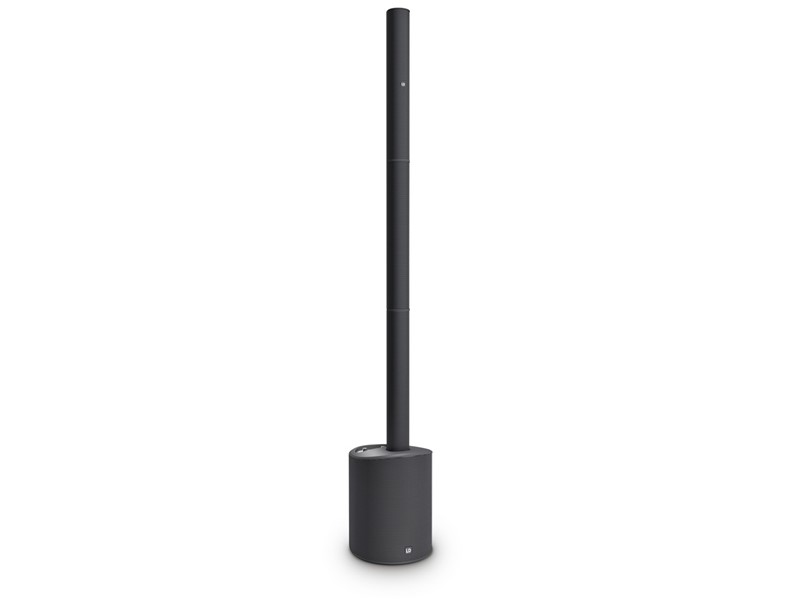

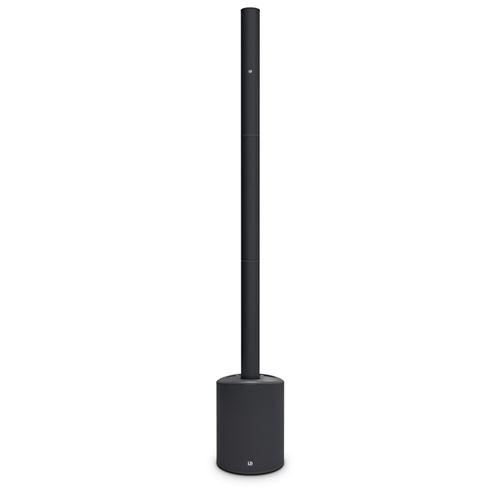

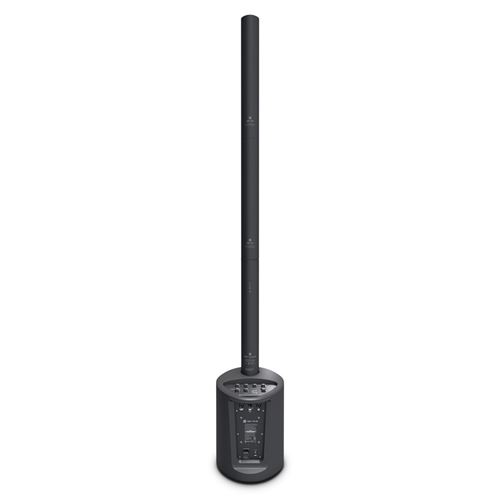

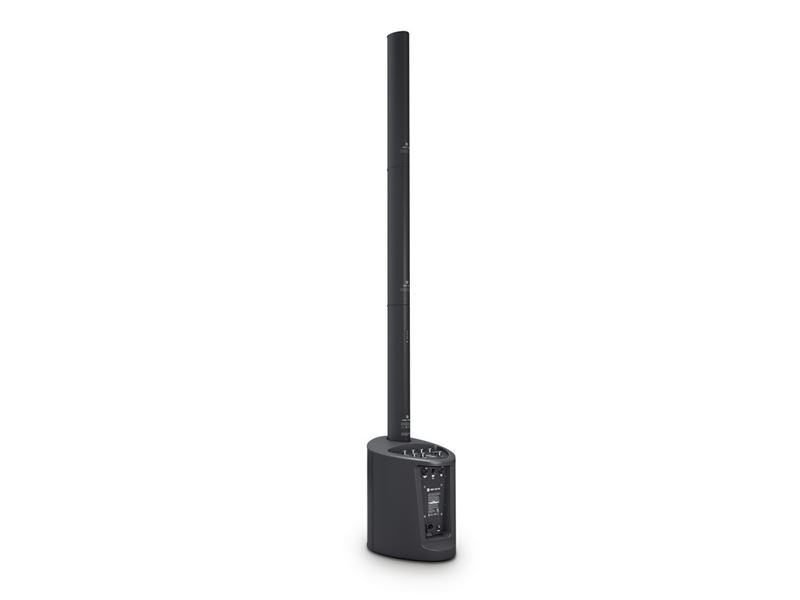

LD SYSTEMS MAUI Series 200 Watts RMS Ultra-Portable Battery-Powered Column PA System (Black)

MAUI-5/GO100

LD Systems

Whatsapp for enquiry Email for enquiry






Perfectly equipped throughout, the MAUI® 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power to 12 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

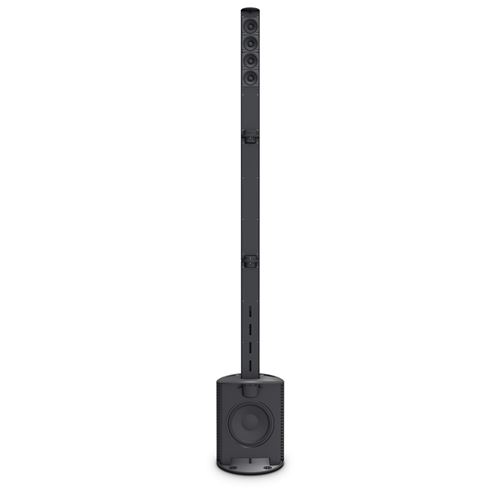

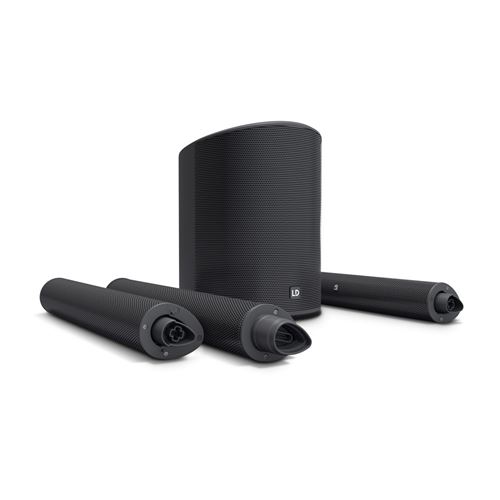

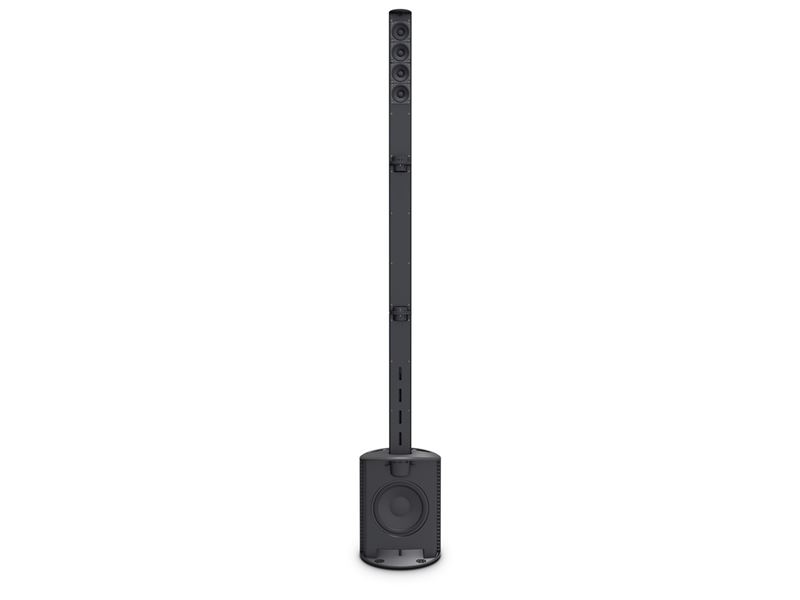

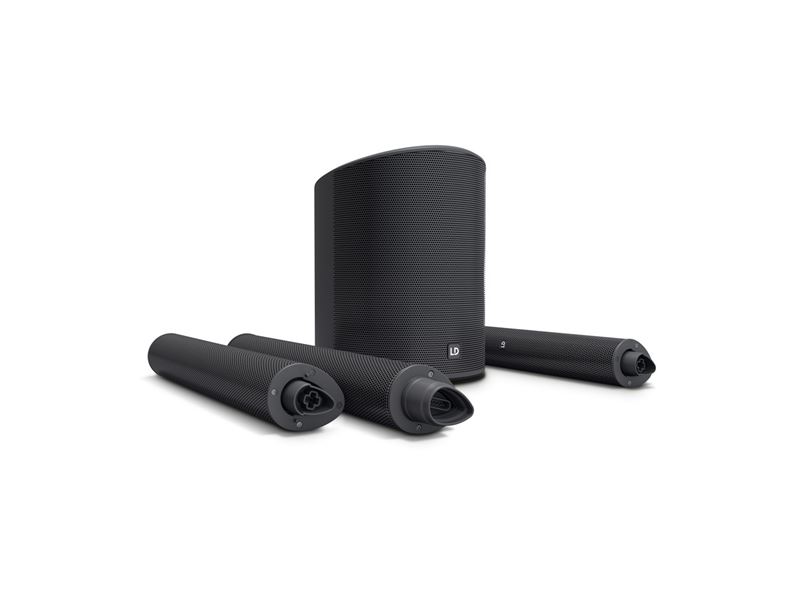

Its superlight weight of just 12.4 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. LD Systems’ Quick-Swap Technology® also facilitates immediate and simple battery replacement for practically unrestricted operating times for the MAUI® 5 GO 100.



General
Product type PA Complete Systems
Type active
Number of subwoofers 1
Color Black
Max. SPL (peak) 120 dB
Frequency response 50 - 20000 Hz
Dispersion (H x V) 120° x 20° °
Overall height 1985 mm
Weight 12,4 kg

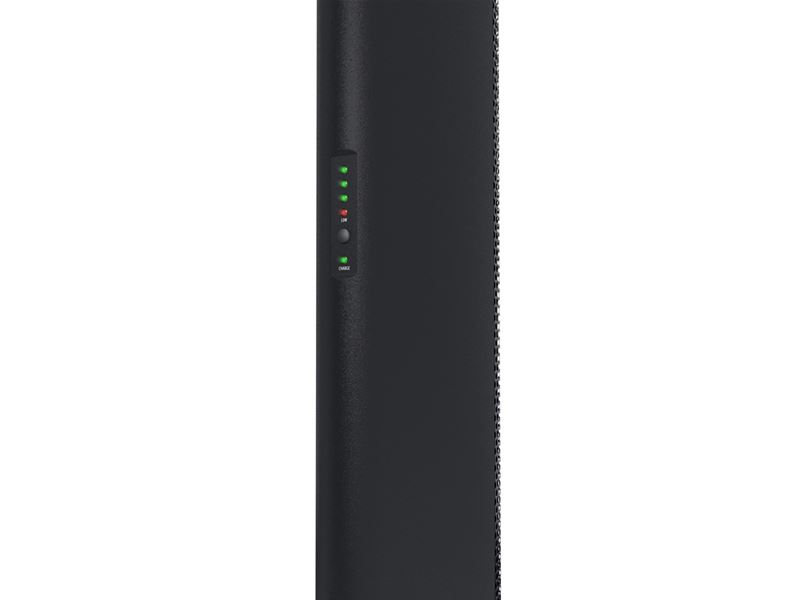

Battery
Rechargeable batteries 28,8V / 3200mAh
Battery manufacturer LG Chem
Battery technology Lithium-ion
Battery operation time at maximum load 12 hours @ 98 dB (Lounge), 4 hours at 120 dB (DJ mode), 6 h @ 104 dB (Live music)
Charging time 1.5 hours up to 80%, 2 hours up to 100%
Woofer characteristics
Low/mid driver dimensions 8 "
Woofer size 203.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Cabinet construction Bass Reflex
Cabinet material ABS plastic
Subwoofer width 305 mm
Subwoofer height 405 mm
Subwoofer depth 395 mm
Subwoofer weight 8.9 kg

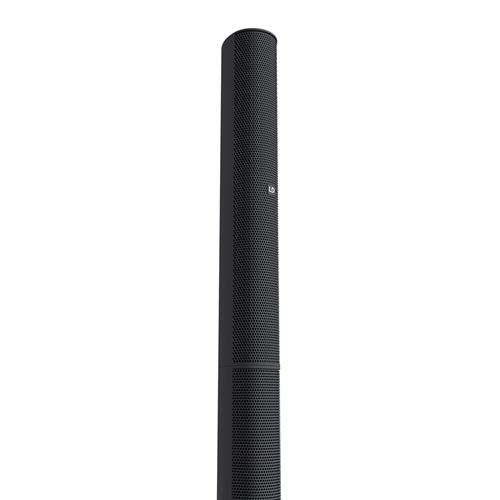

Mid/Hi System
Midrange size 4 x 3 "
Midrange size 4 x 76.2 mm
Midrange magnet Neodymium
Midrange brand Custom-made
Midrange voice coil 1 "
Midrange voice coil 25.4 mm
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material ABS plastic
Mid/Hi system width 82 mm
Mid/Hi system height 535 mm
Mid/Hi system depth 105 mm
Mid/Hi system weight 3.5 (3ps) kg
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 200 W
Amplifier output system (peak) 800 W
Protection circuits DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling Convection
Operating Temperature 0 - 50 °C

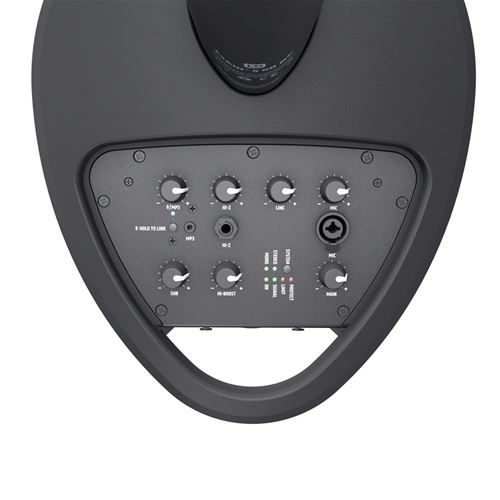

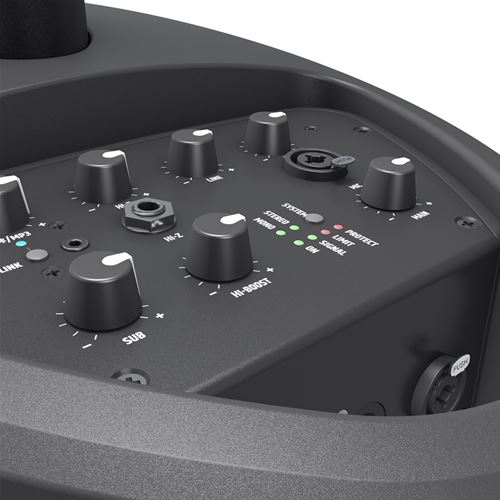

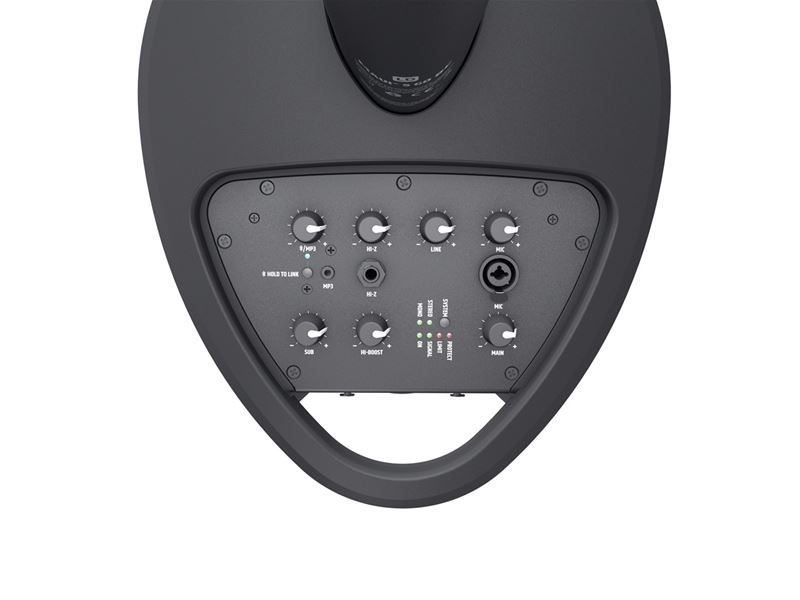

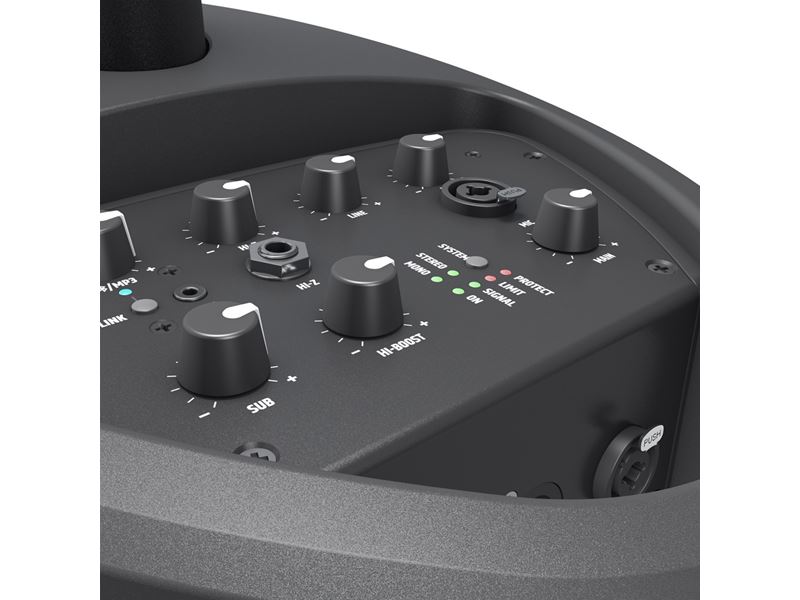

Controls BT level, BT pairing, Line level, Main level, Mic level, Mono/stereo mode, MP3 / Hi-Z level, On / Off, Sub level
Indicators Limit, On, Protect (protection circuit engaged), Signal
Operating voltage Switching power supply
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Power consumption 300 W

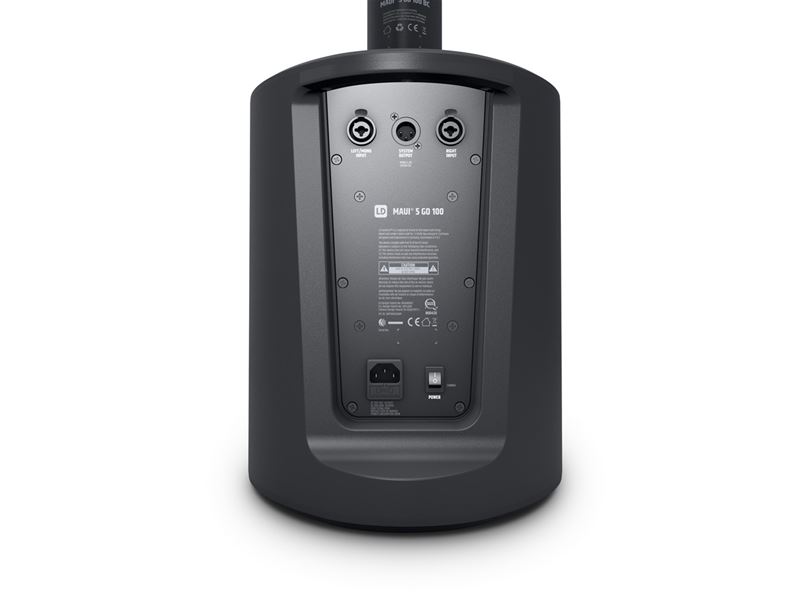

Line inputs 2 x stereo
Line input connectors 6.3 mm jack, XLR
Mic inputs 1
Mic inputs 6.3 mm jack, XLR
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 1
Speaker output connections Custom-made multipin
DSP characteristics
Bit depth AD/DA converter 24 / 24 bit
Internal sampling frequency 48 kHz
