LD Systems | VIBZ-24DC | LD SYSTEMS VIBZ Series 24 Channel Mixing Console with DFX & Compressors

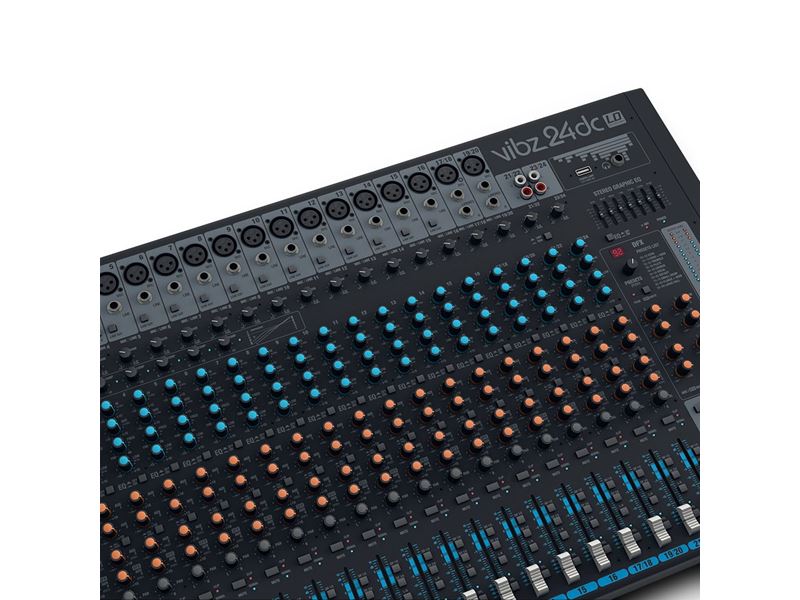

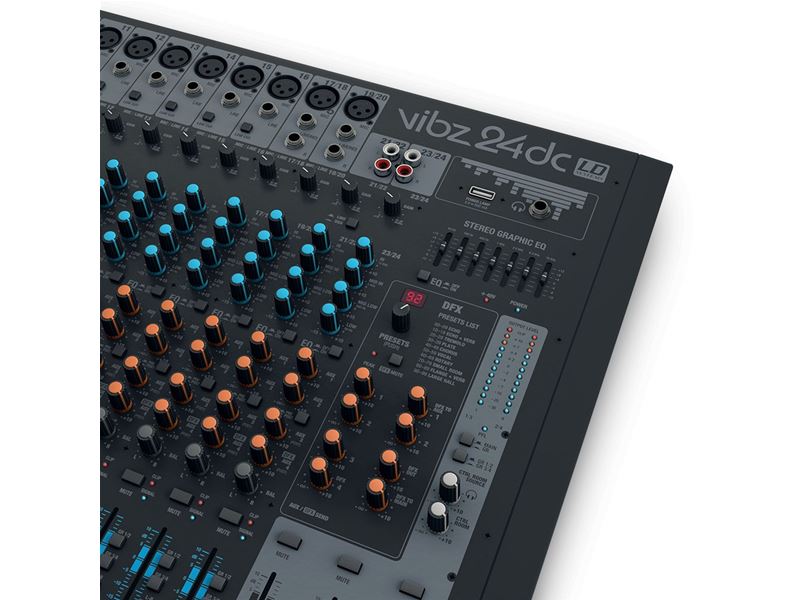

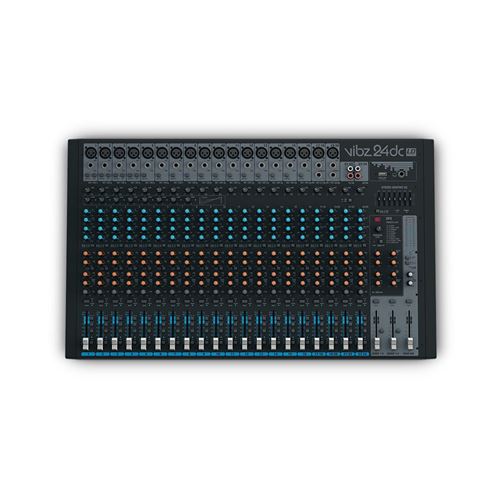

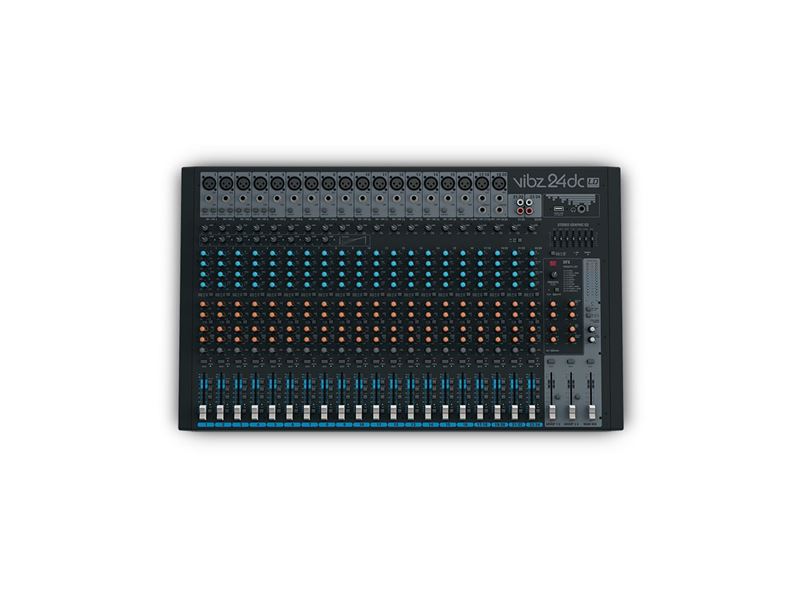

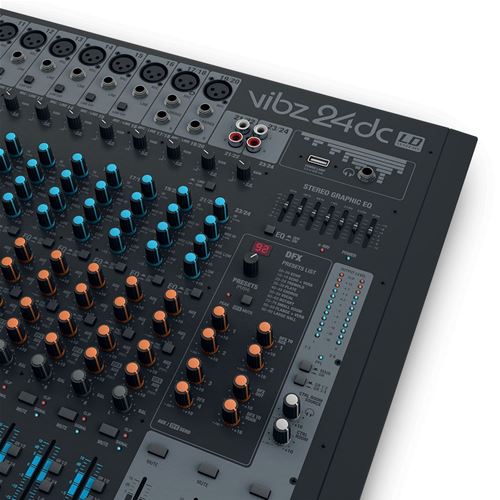

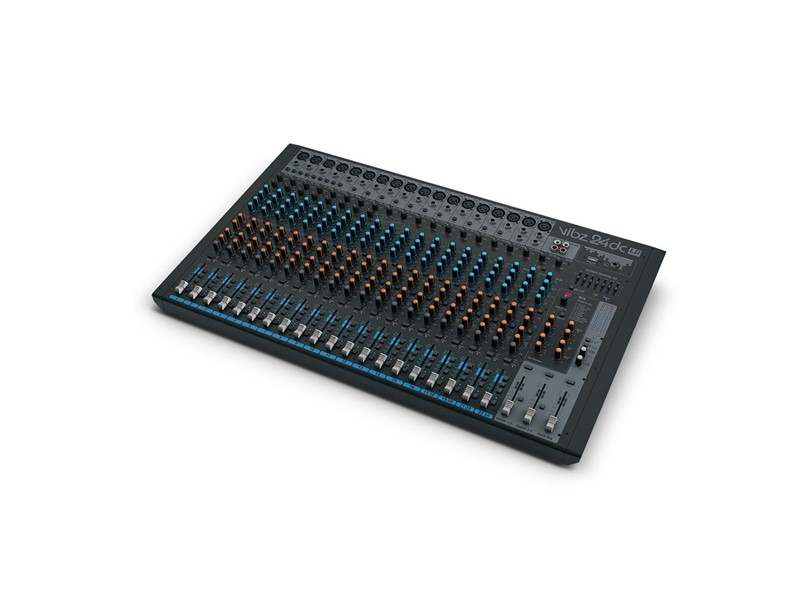

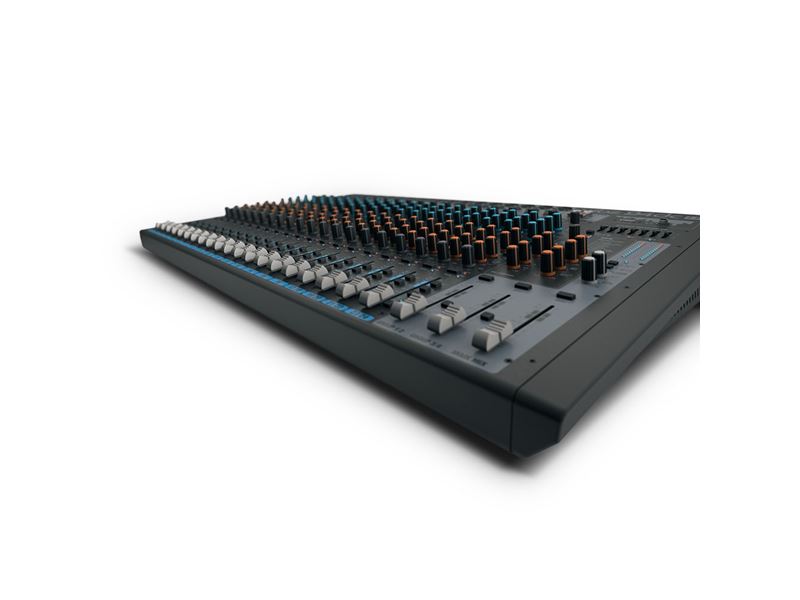

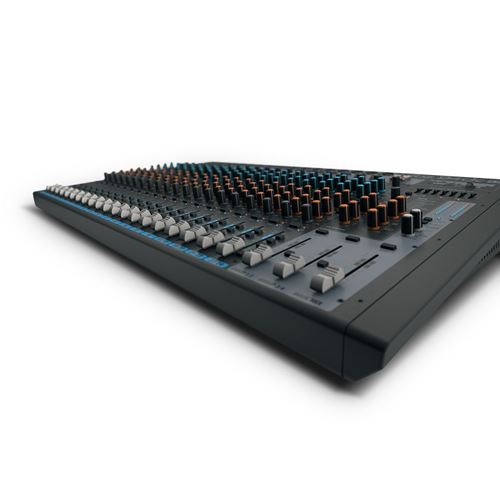

The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.

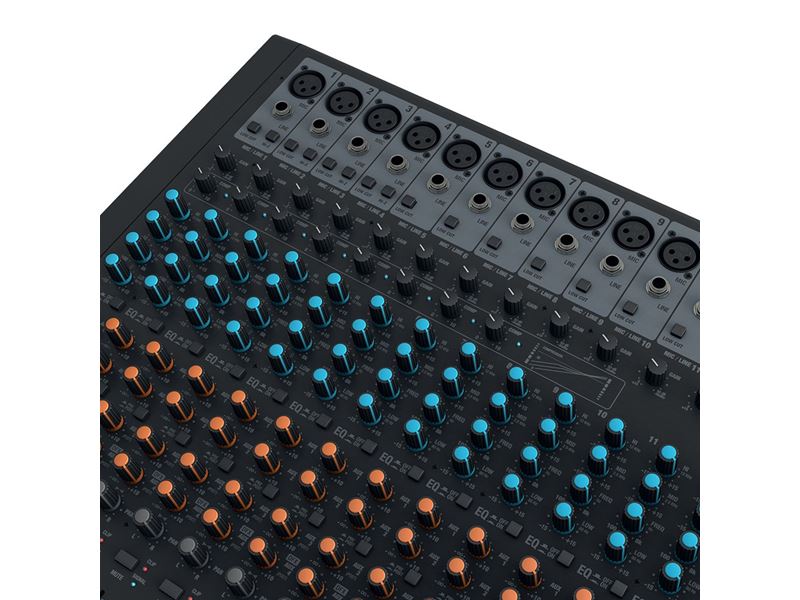

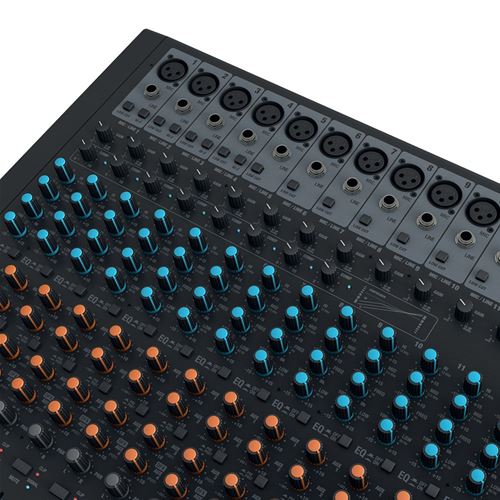

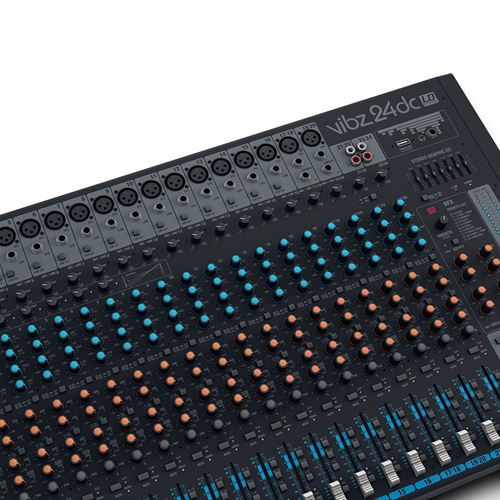

All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels' XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.

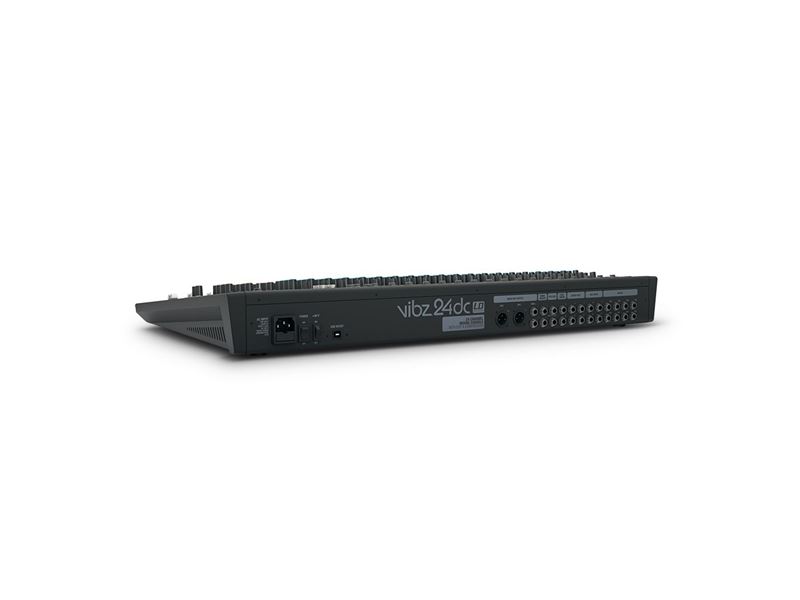

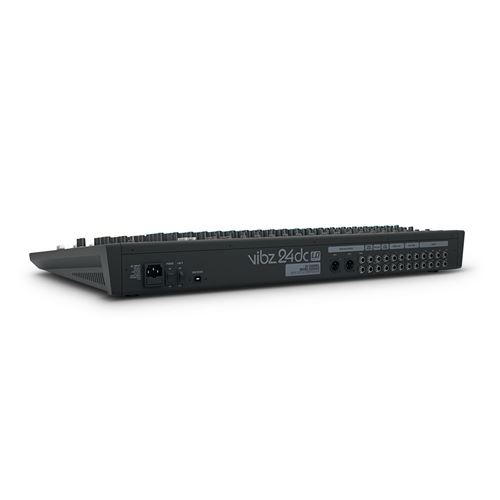

The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.

General

Product type	Mixers
Type	Home-Recording, Live
Channels	24

microphone

Mono Mic and Line Input Channels	16
Mono Mic input connectors	6.3 mm TRS, XLR
Mono Mic Input Type	Electronically balanced
Mono Mic Input Frequency Range	10 - 45000 Hz
Amplification Range mono Mic Input	0 - 50 dB
Mono Mic Input Input THD-N	0.0058%
Mono Mic Input Impedance	4000 Ohm(s)
Mono Mic Input S/N Ratio	113 dB
Mono Line Input Type	Electronically balanced
Mono Line Input Frequency Range	10 - 45000 Hz
Amplification Range mono Line Input	0 - 50 dB
Mono Line Input Input THD-N	0.0045 %
Mono Line Input Impedance	21000 Ohm(s)
Mono Line Input S/N Ratio	116 dB
Mono Channel Equalizer High	+/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid	200 - 8000
Mono Channel Equalizer Low	+/-15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels	3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable), AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Gain, LINE/USB -switch (Channel 21 - 24), PFL / Solo Switch
Phantom power	48 V DC switchable
Mono Inserts	8
Mono Inserts Connectors	6.3mm jack

Stereo Channels:

Stereo Line Input Channels	4
Stereo Line Input Connectors	6.3 mm TRS
Stereo Line Input Type	Electronically balanced, Unbalanced
Stereo Line Input Frequency Range	10 - 45000 Hz
Amplification Range stereo Line Input	0 - 50 dB
Stereo Line Input Input THD-N	0.0045 %
Stereo Line Input Impedance	37000 Ohm(s)
Stereo Line Input S/N Ratio	116 dB
Stereo channel equalizer treble	+/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids	+/-15 dB @ 2.500 Hz
Stereo channel equalizer low-mids	+/-15 dB @ 2.500 Hz
Stereo channel equalizer bass	+/-15 dB @ 80 Hz
Controls Stereo Line Input Channels	4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 - 2 switchable Pre/Post, AUX/DFX Send 1 - 4, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch

Main Section:

AUX / Effects Send Channels	4
AUX / Effects Send Connectors	6.3 mm TS
Stereo AUX Return Channels	1
Group Out	4
Group Out Connectors	4 x 6,3mm TRS
Balanced Stereo Main Out	1
Balanced Stereo Main Out Connectors	XLR
Unbalanced stereo Main Outputs	1
Unbalanced stereo Main Output Connections	2 x 6.3 mm TS
Main-Insert Inputs	1
Main-Insert Input Ports	2 x 6.3 mm TRS asymmetrically
DFX Out Outputs	1
DFX Out Output Ports	6.3 mm TRS
USB In/Out In-/Outputs	1
USB In/Out Ports	USB-B
Max. Unbalanced Stereo Main Out Level	22 dBu
Stereo Control Room Out	1
Stereo Control Room Out Connectors	2x 6.3 mm TRS
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Digital Effects Processor	Yes
Number of Presets	100
DMX output	1
Footswitch Connector DFX Mute	6.3 mm TS
Main section controls	7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL
Indicators	DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, Signal
Operating voltage	100 V AC - 240 V AC, 50 - 60 Hz
Width	712 mm
Height	80 mm
Depth	425 mm
Weight	9,442 kg
