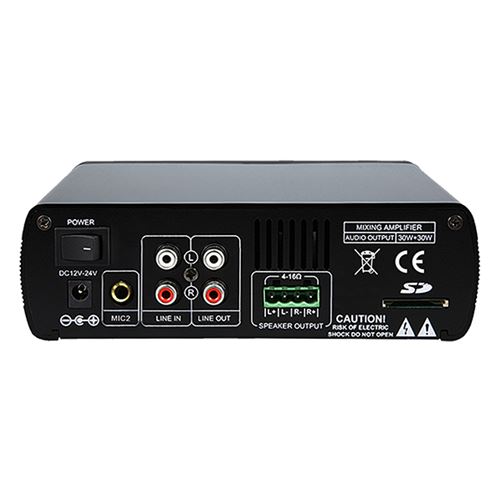

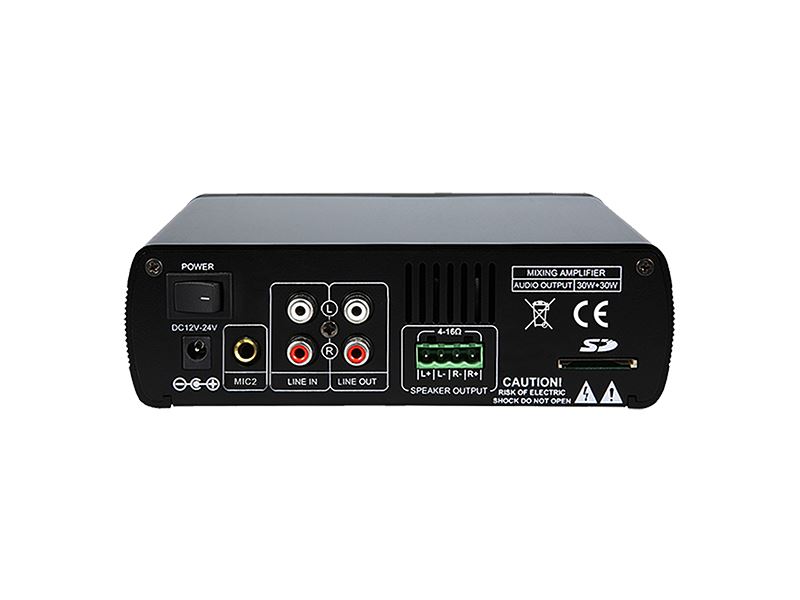

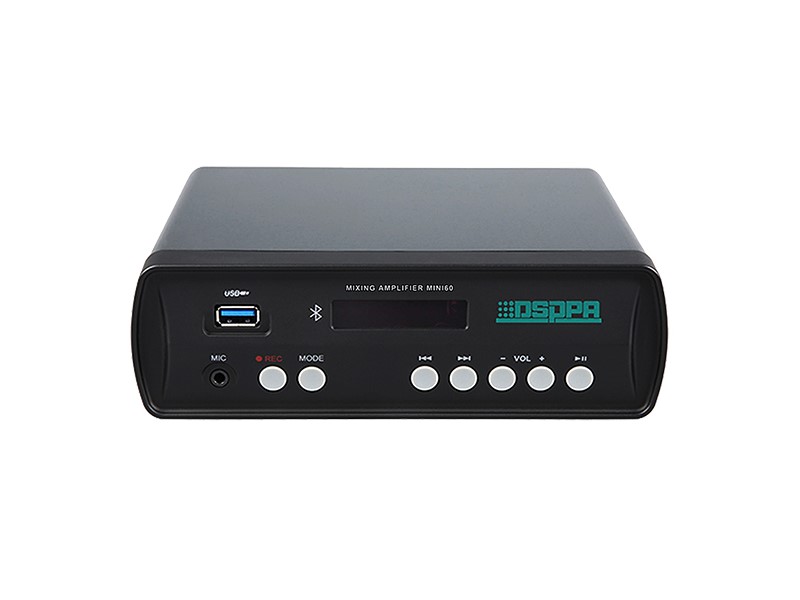

DSPPA Dual Channel 30 Watts Mini Digital Mixing Amplifier with Bluetooth/USB

MINI-60

DSPPA

Whatsapp for enquiry Email for enquiry






MINI60 is a digital mixer amplifier, also known as public address mixer, and a small acoustic amplification system featured by simplicity. It's called small Bluetooth amplifier.


Features

● Stereo output 2*30W by two channels for 4 Ω-16Ω speakers
● Built-in MP3 with USB inputs and Bluetooth inputs
● The front mic with priority and muting function
● Support USB record function by mic or Aux inputs
● Mini Stereo Class D Amplifier with high efficiency
● LED display, digital volume control
● DC12- 24V power adapter and remote control included
● Aluminum-alloy casing, small volume and portable, robust and durable


Item

Indicator

Remark

AUX input sensitivity (Input/Sensitivity)

-6dBV

OUT 30W×2

DC 20V

MIC input sensitivity (Input/Sensitivity)

-45dBV

Power output (Power Output)

2×30W

Static power consumption (Power)

0.24W

Maximum power consumption (Max Power)

90W

Degree of distortion (Harmonic Distortion)

1%

4Ω/10W×2

Signal to noise ratio (S/N Ratio)

MIC: 73dB          AUX: 55dB

Range of power supply (Power Supply)

DC 12V~24V

Frequency response (Frequency Response)

MIC: 100Hz~16kHZ

AUX: 20Hz~22kHz

±3dB

Unit size (L×W×H mm)

180×145×60

Net Weight

0.8Kg

Without power adapter

Packing size (L×W×H mm)

287x223x108

Gross Weight

1.0Kg
