DSPPA 120 Watts Mini Digital Mixer Amplifier with Bluetooth & USB

MP-120UB

DSPPA

Whatsapp for enquiry Email for enquiry

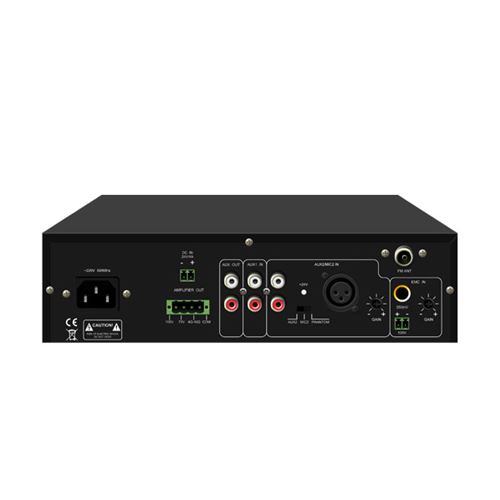

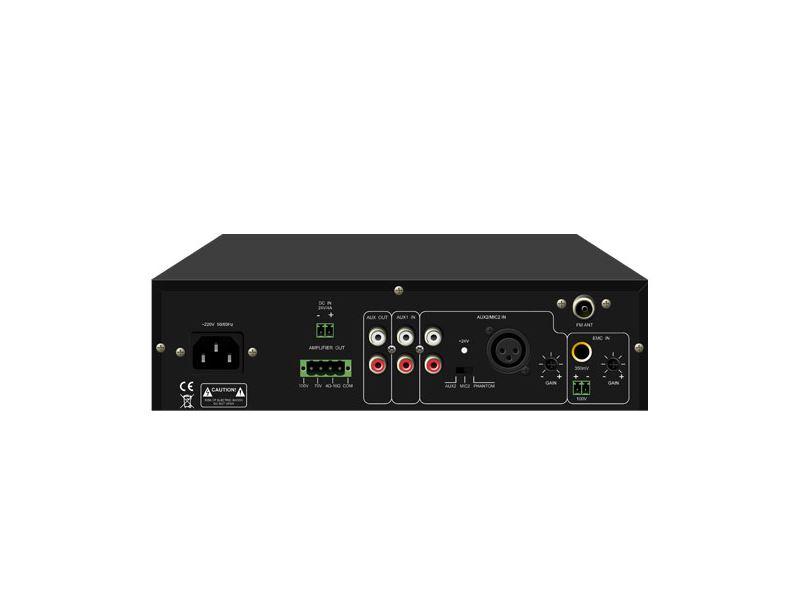

MP120UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth. The speaker output is 70V/100V and 4-16Ω available, 3 Aux input, Min1 is 6.3 mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. What's more, it also has EMC signal input for emergency situation.


Features

● Built-in radio, Bluetooth, usb function.
● 2 MIC inputs, 2 EMC inputs, 2 line inputs, 1 line output.
● Speaker output of 100V or 70V & 4 -16 Ω.
● Support infrared remote control.
● With priority function, priority is EMC/MIC1>AUX1/AUX2/MIC2.
● With master volume control, individual volume control of MIC & Line, treble and bass volume control.


Model

MP35UB MP120UB

MP35UB MP120UB

Power Supply

~110V-240V/50/60Hz

~220V/50/60Hz

MIC1 input sensitivity

8mV±1mV

10mV±1mV

MIC2 input sensitivity

8mV±1mV

10mV±1mV

AUX1 input sensitivity

360mV±20mV

AUX2 input sensitivity

360mV±20mV

EMC input sensitivity

360mV±20mV

MIC frequency response

180Hz~10kHz(±3dB)

AUX frequency response

70Hz~16kHz(±3dB)

Noise

<5mV (4Ω load output port)

<10mV

Distortion

<1% 1KHz

Treble adjustment

10dB(±2)

Bass adjustment

10dB(±2)

Rated power supply

AC220V

Speakeroutputs

35W 4Ω, AC220V

120W 4Ω,AC220V

Interface output voltage

70V, 100V (Constant voltage output)

Machine size(L×W×H)

247*198*66mm

Packing size

343*302*121mm (1PC)

Maximum packing size

630*355*283mm (4PCS)

Net Weight

2.5kg

3Kg

Gross Weight

3.2Kg (1PC)

3.7Kg (1PC)
