DSPPA Intelligent Digital Conference Controller c/w Recording

D6201

DSPPA

Whatsapp for enquiry Email for enquiry






D62 series audio conference system supports functions such as check-in, vote, camera tracking, automatic inspection and data management. On the controller, the user may set any unit as a VIP unit. The system allows automatic or manual inspection to the microphone, speaker, buttons, LED lights and screen on the conference units. The controller has a Digital Signal Processor (DSP) which provides several EQ modes, so that the user can select the desired one in accordance with the conference situations. In addition, the controller also provides frequency shifters, which can effectively reduce the howl back; the audio input/output ports and breaking-in of warning signals can extend the broadcasting functions; the limitation of spokesman and timed speech function can help to manage good order at the conference venue; the four camera ports allows connection to four cameras to realize tracking functions. In all, the conference room audio systems very powerful, highly integrated and has very simply system architecture, and it is easy wire and provides visualized operation and message display in Chinese and English, so it becomes an ideal choice for audio system of high-end conferences.


Features

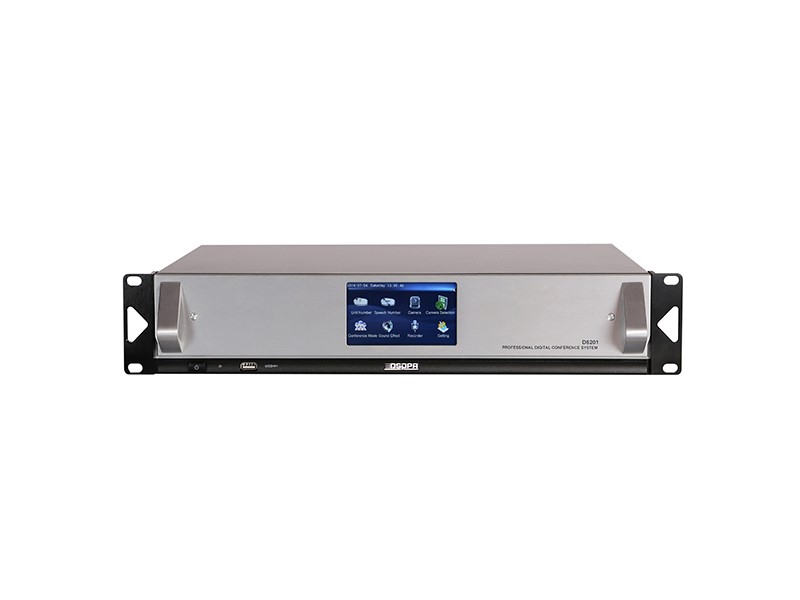

● 4.3" high-definition color touch screen
��� Support 128 conference units; maximum 4096 units with extensions
● TCP/IP network interface
● Voting, timed speech and other data management functions.
● Built-in high performance DSP technology
● Automatic Camera Tracking System
● Conference check-in and recording
● Automatic unit inspection


Item

Index parameters

LINE input voltage

250 (±30) mV

ALARM input voltage

250 (±30) mV

LINE output voltage

1 (±0.1) V

BALANCE output voltage

1 (±0.1) V

Frequency response

40Hz-20kHz(-3dB)

Maximum input voltage

4 (±0.2) V

SNR

>80 dB

Harmonic distortion

<0.3%

Output power

≤110W/3-way, 24V

Max. power

350W

Static power consumption

15W

Quantity of maximum units

128 ps

Control interface

RJ45, RS232, RS422

Power source

Switch Mode Power Supply 220V-240V/50Hz/350W

Net Weight

6.9kg

Dimension

484×385×88 mm
