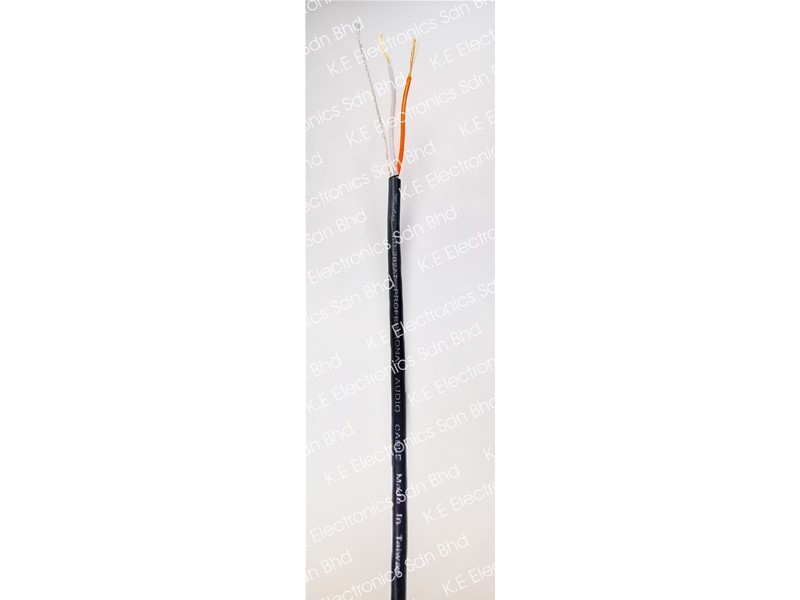

The KD-2B2AT is a high quality analog audio cable for high application demand. The flexible PVC outer jacket makes it suitable for rack wiring and small installation application where mechanical stress is lower.
The cable is suitable for adverse condition where temperature and humidity are inconsistent.
The cable is also suitable for permanent installations.
Product Features:
- Balanced Single Pair Audio Cable
- PVC Jacket
- Flexible and cost efficient
- Ideal for Rack Wiring
- Black Color Jacket for Dirt Resistance
- High Quality Oxygen Free Copper Conductor
| Conductor Material: | Oxygen Free Copper |
| Conductor Description: | 16 x 0.12mm |
| Number of Pairs: | 1 |
| Insulation: | PE (Polyethylene) |
| Cover: | Aluminium Foil Shield |
| Screen Material: | Tinned Copper |
| Screen Description: | 7 x 0.20mm |
| Jacket: | PVC (Polyvinyl Chloride) |
| Overall Diameter: | 3.2mm |
| Resistance: | 111.2 Ohm/Km |
| Conductivity: | 98% |
| Max. Pulling Tension: | 4 Kg |
| Current Rating (Max): | 7 Amps |
| Spool Size: | 260 x 80 x 110mm |
| Cable Spool Length: | 200 Meters |
| Jacket Color: | Black |
