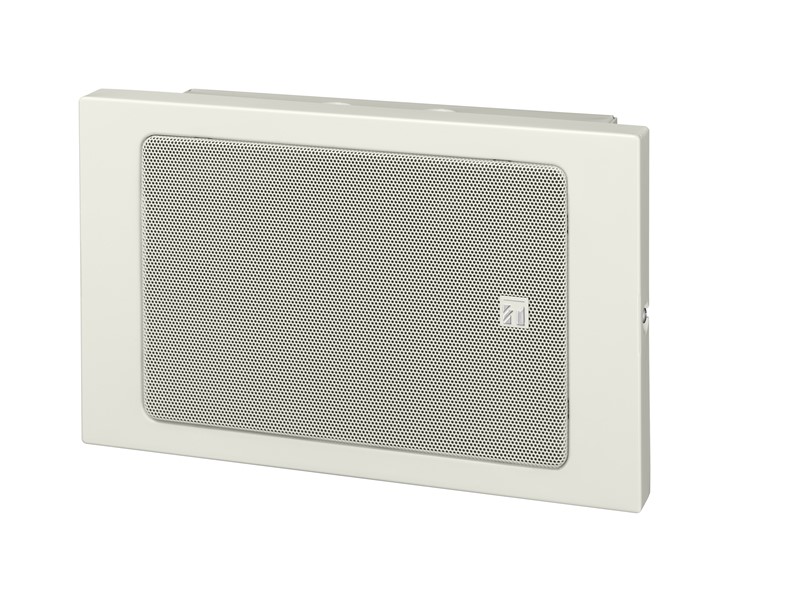

TOA 6 Watts 6" Double Cone-Type Wall Mount Speaker

BS-680FC

TOA

Whatsapp for enquiry Email for enquiry






Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system.Can be surface- or flush- mounted to the wall. Either concealed in-wall wiring or exposedwiring can be used for speaker cable connection. The speaker structure of direct wall-mountingwith screws prevents the speaker from falling easily even if an outward force is applied to.The input impedance can be easily changed by changing the tap position of the transformer.The built-in 16 cm double cone speaker unit delivers high quality sound. Two steatite screw terminal blocks (1 cable to 1 connection type) make bridge connection easier.


Rated Noise Power 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
77 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24
89 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24
MaximumSound Pressure Level 84 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24
96 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24
Frequency Response 150 Hz - 20 kHz
Coverage Angle(-6dB) 500 Hz: 180゜ (horizontal and vertical); 1 kHz: 140゜ (horizontal and vertical);
2 kHz: 120゜ (horizontal), 110゜ (vertical); 4 kHz: 100゜ (horizontal), 80゜ (vertical);
according to EN 54-24
Environmental type A (indoor applications) according to EN 54-24
Speaker Component 16 cm (6") double cone-type
Applicable Cable Solid wire: φ1.0 - φ3.0 mm (AWG 18-9)
Connection Screw connector (steatite terminal × 2) bridging
Finish Baffle, Cabinet: Steel plate, off-white (RAL 9010 or equivalent color), paint
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions 310 (W) × 190 (H) × 90 (D) mm (12.2" × 7.48" × 3.54")
Weight 2.6 kg (5.73 lb)
Accessory Rubber grommet …2, Speaker mounting screw (4 × 16) …4
