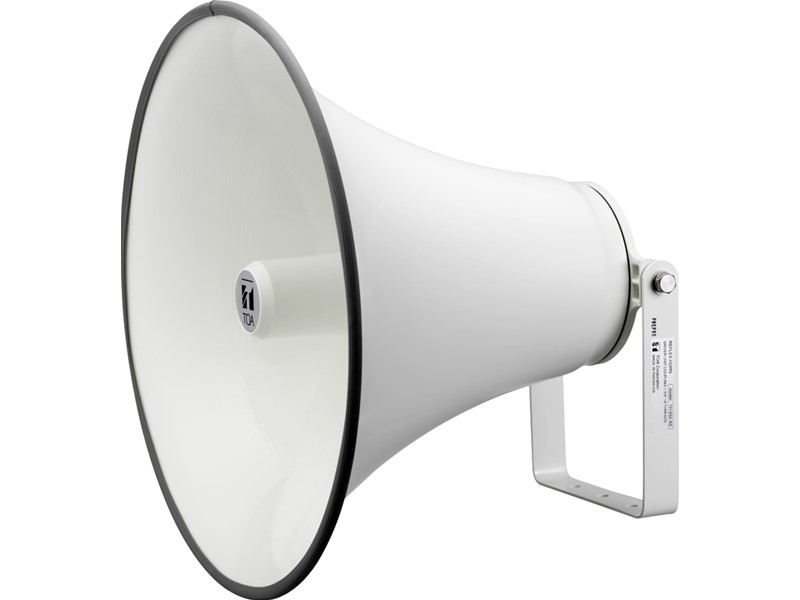

TH-652 is a speaker horn to be use in combination with an optioanl driver unit. The powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.
| Applicable Horns | TH-652 |
|---|---|
| Rated Input | 50 W |
| Rated Impedance | 16 Ω |
| Output Sound Pressure Level | 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.) |
| Frequency Response | 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.) |
| IP Code | IP65 (When a driver is operated with a horn.) |
| Horn Coupling | 1 - 3/8 18 threads (inch screw) |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation) |
| Finish | Upper Cover: Aluminum, White, powder coating
Unit Case: HIPS. White Screws: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24") in diameter, 450 mm (17.72") in length), White |
| Dimensions | Φ139 × 106 (D) mm (Φ5.47" × 4.17") |
| Weight | 2 kg (4.41 lb)
|
