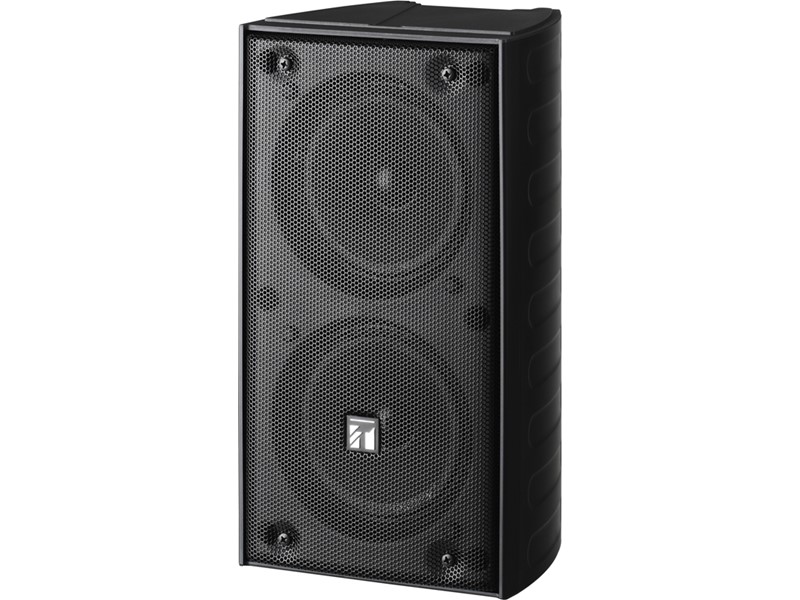

The TZ-206B are highly efficient, compact, 20W column speakers, delivering excellent sound performance in medium sized venues such as Houses of Worship, auditoriums, Gymnasiums and more.
Multiple speaker units are arranged in a vertical array to produce a wide horizontal sound dispersion, yet at the same time, limit the vertical sound dispersion. This greatly minimises reverberation problems in enclosed areas.
| Enclosure | Sealed Type |
|---|---|
| Rated Input | 20 W |
| Rated Impedance | 100 V line: 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 4 kΩ (1.3 W) |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 16,000 Hz |
| Speaker Component | 10 cm cone-type × 2 |
| Input Terminal | Push-In terminal |
| Finish | Enclosure: HIPS, black, paint
Punched Net: Surface-tread steel plate, black, paint Speaker Bracket: Aluminum die-cast, black, paint Joint Bracket, Wall Bracket: Steel plate, t1.6, black, paint |
| Dimensions | 135 (W) × 250 (H) × 128 (D) mm |
| Weight | 1.9 kg (unit only) |
| Accessory | Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x 15) x 1 |
| Option | Speaker Stand: ST-16A
|
