10W max Splash-proof Hand Grip Type Megaphones

ER-1206

TOA

Whatsapp for enquiry Email for enquiry

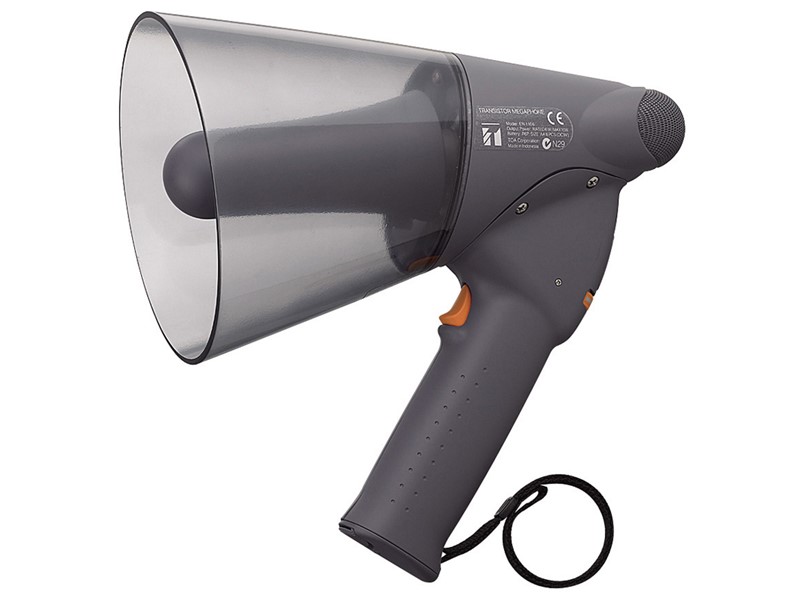

The ER-1206 is a compact splash-proof megaphone rated at 6 W output and features IPX5 water-jet-resistant designs. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.


Power Source R6P (AA) × 6 (9 V DC) or R6P (AA) × 4 (6 V DC)
Rated Output 6 W (when using six R6P batteries)
Maximum Output 10 W (when using six R6P batteries)
Battery Life When using six R6P batteries: Approx. 8 hours (JEITA)(*1)
When using four R6P batteries(*2): Approx. 5 hours (JEITA)(*1)
Audible Range Approx. 250 m (JEITA)(*1)
Frequency Response 450 Hz - 6 kHz (SPL -20 dB)
Magnetic Circuit Neodymium magnet, inner magnet type
Diaphragm Polyimide film (voice coil, bobbin)
Water Protection IPX5
Operating Temperature -10 ℃ to +40 ℃
Finish Horn: ASA resin, clear dark gray
Other: ASA resin, dark gray
Strap: Nylon, black
Dimensions 154 (W) × 266 (H) × 250 (D) mm
Weight 660 g (without batteries)
Accessory Battery spacer …1
Option Wall mounting bracket for megaphone: SP-1100
