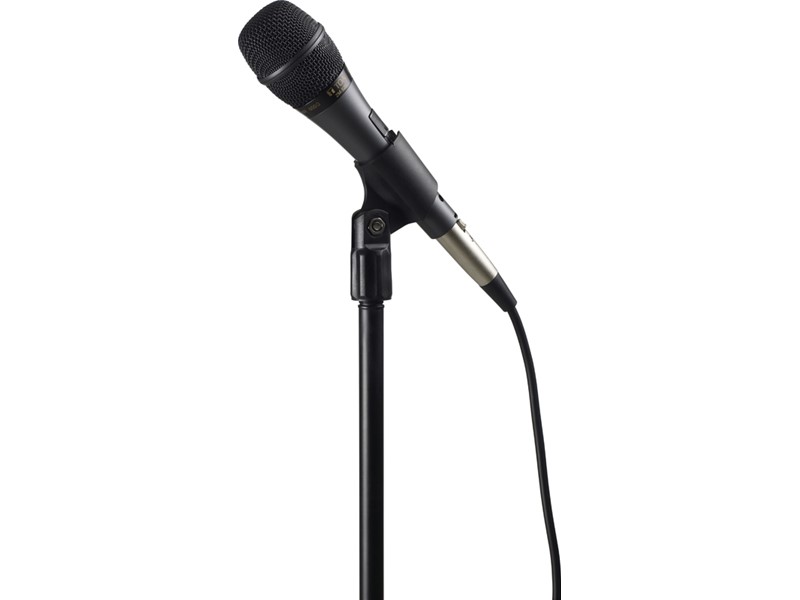

The DM-520 is a multi-purpose microphone featuring high intelligibility, suitable for vocal application.
| Type | Moving coil microphone |
|---|---|
| Directivity | Unidirectional |
| Rated Impedance | 600 Ω, balanced |
| Rated Sensitivity | -55 dB (1 kHz 0 dB=1 V/Pa) |
| Frequency Response | 80 Hz - 13 kHz |
| Connection Cable | Separate type |
| Cable Length | 7.5 m |
| Connector | XLR-3 type |
| Talk Switch | Short-off, slide switch |
| Finish | Body: Die-cast aluminum, dark grey
Head: Die-cast aluminum/zinc-plated steel wire, dark grey |
| Dimensions | Φ50 × 176 mm (microphone body) |
| Weight | 232 g (without connection cable) |
| Accessory | Microphone holder (W5/16" 18 thread)
|
