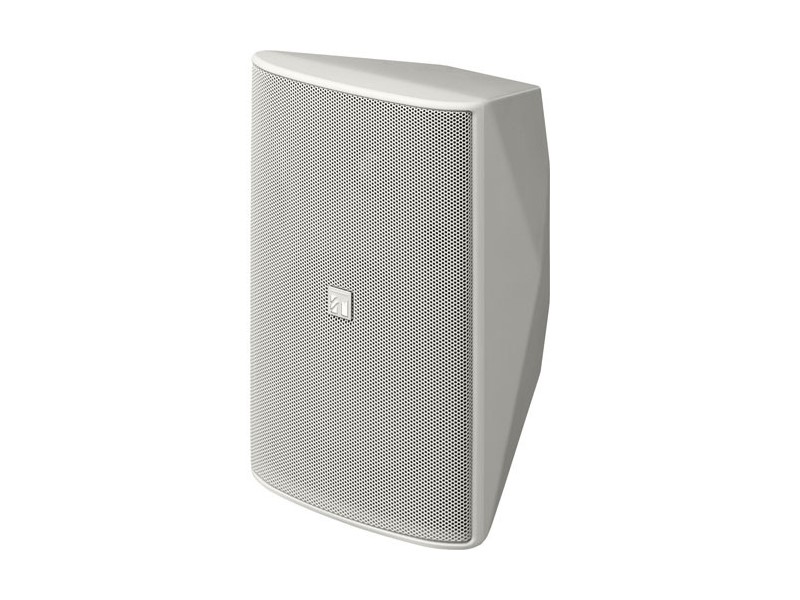

The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 30 W (high impedance) |
| Power Handling Capacity | Continuos pink noise: 50 W (low impedance)
Continuos program: 150 W (low impedance) |
| Rated Impedance | 8 Ω
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2 kHz |
| Directivity Angle | Horizontal: 110゜, Vertical: 100゜ |
| Speaker Component | Low frequency: 13 cm (5") cone-type
High frequency: 25 mm (1") dome tweeter |

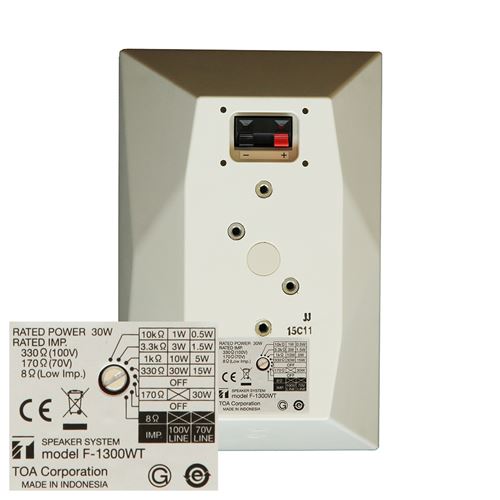

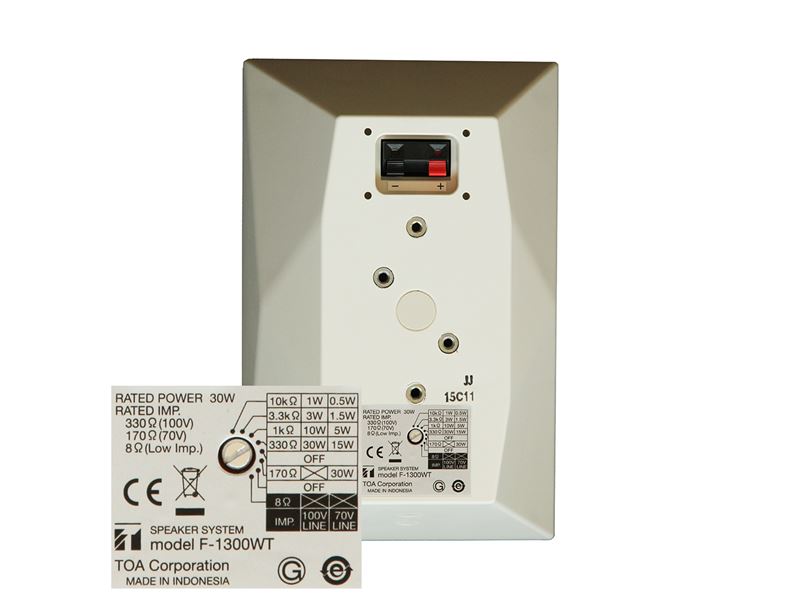

| Input Terminal | Push-in terminal |
| Finish | Enclosure: HIPS, white
Punched net: Surface-treated steel plate, white, paint Joint bracket, wall bracket: Steel plate, t1.6, white, paint Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34") |
| Weight | 3.6 kg (7.94 lb) (including the supplied brackets) |
| Accessory | Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set |
| Option | Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting), Cluster bracket: HY-CL10B, Speaker stand: ST-16A |
