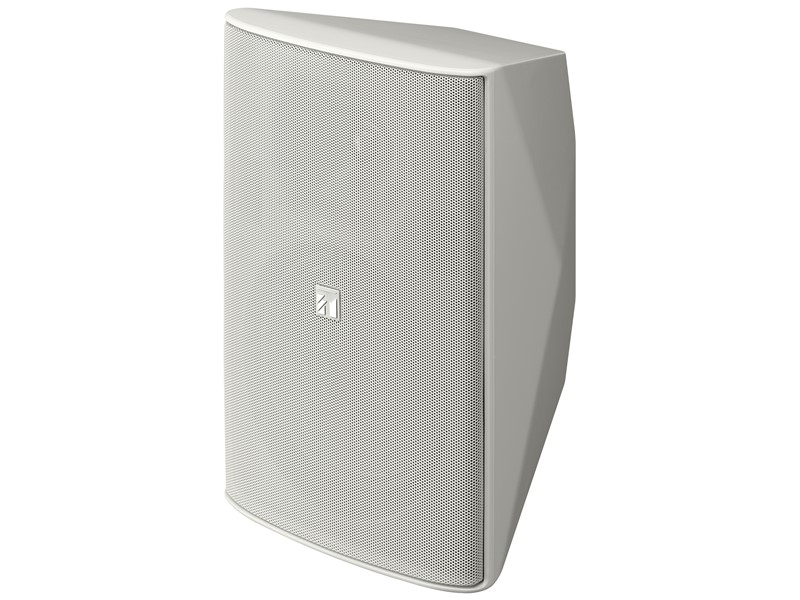

The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 60 W (high impedance) |
| Power Handling Capacity | Continuos pink noise: 60 W (low impedance)
Continuos program: 180 W (low impedance) |
| Rated Impedance | 8 Ω

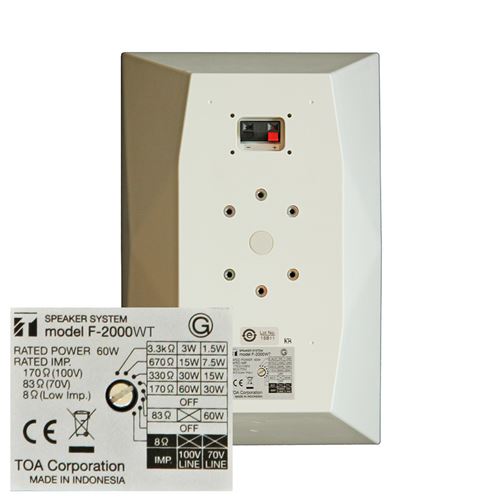

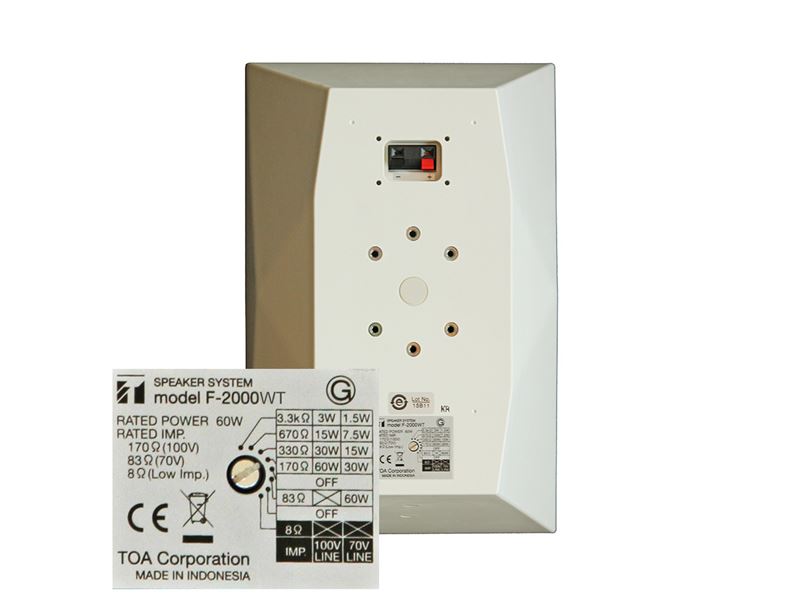

100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 92 dB (1 W, 1 m) at installation in 1/2 free sound field
93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
| Frequency Response | 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2.5 kHz |
| Directivity Angle | Horizontal: 110゜, Vertical: 100゜
Horizontal: 80゜, Vertical: 80゜ (with horn adapter) |
| Speaker Component | Low frequency: 20 cm (8") cone-type
High frequency: 25 mm (1") dome tweeter |
| Input Terminal | Push-in terminal |
| Finish | Enclosure: HIPS, white
Punched net: Surface-treated steel plate, white, paint Joint bracket, wall bracket: Steel plate, t2.0, white, paint Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 244 (W) × 373 (H) × 235 (D) mm (9.61" × 14.69" × 9.25") |
| Weight | 7.4 kg (16.31 lb) (including the supplied brackets) |
| Accessory | Speaker bracket…1, Joint bracket…1, Wall bracket…1,
Bracket fixing screw…1 set, Horn adapter…1, Horn adapter mounting screw…4 |
| Option | Ceiling mount bracket: HY-CM20W (used for the horizontal speaker mounting),
Cluster bracket: HY-CL20B, Speaker stand: ST-16A |
