DN200
DN200 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 kΩ load. This increased headroom means that much higher level input signals can be accommodated without the need for an attenuating pad.
- High headroom design with +48 V phantom power for extended dynamic range

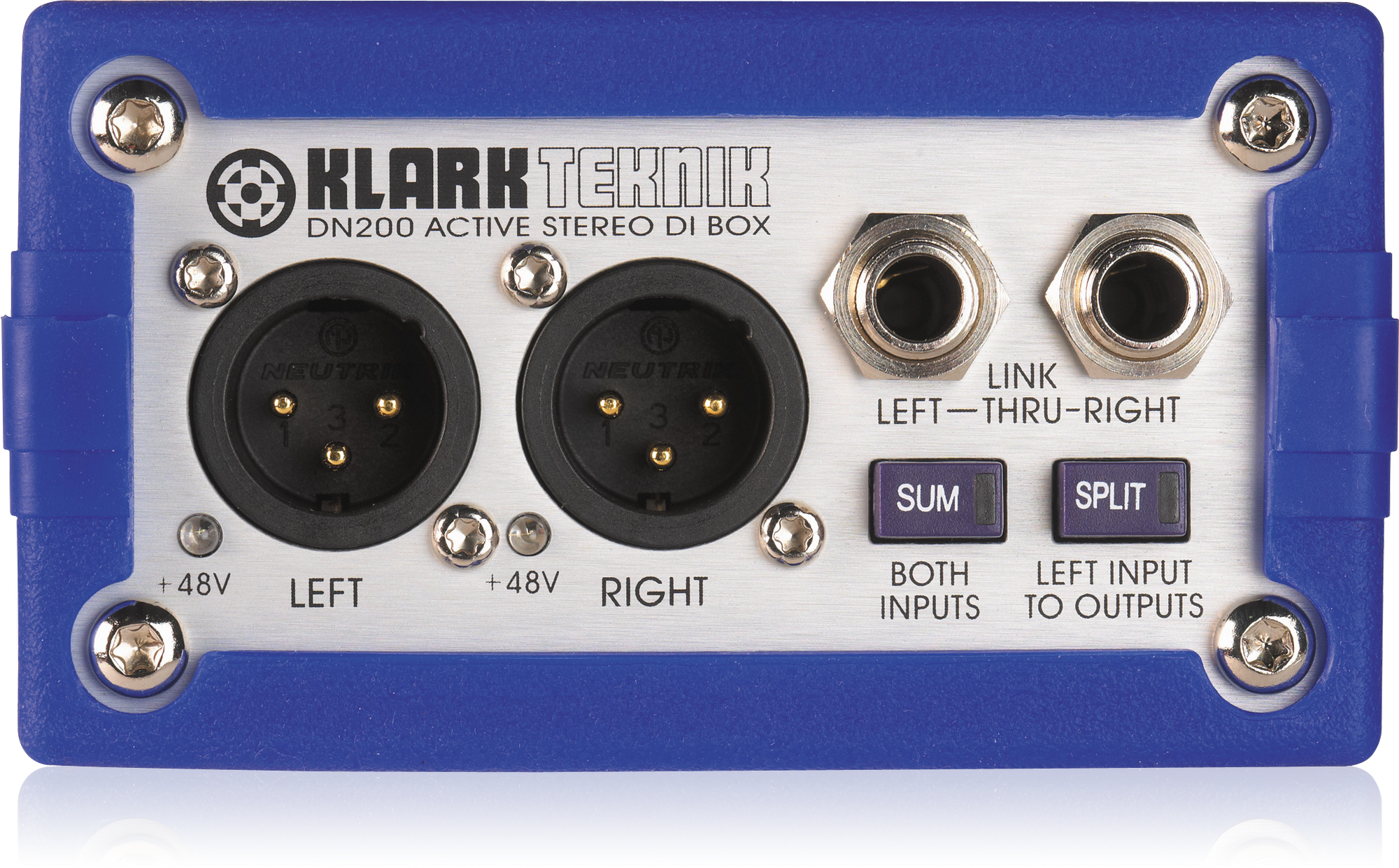

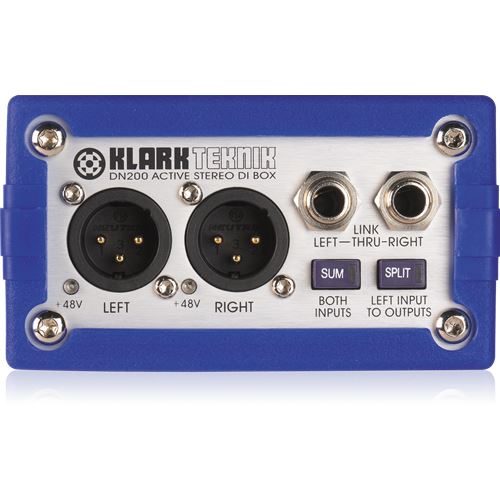

- Sum and split options for flexible signal routing
- Fully transformer-isolated design ensures electrical separation between PA and stage equipment

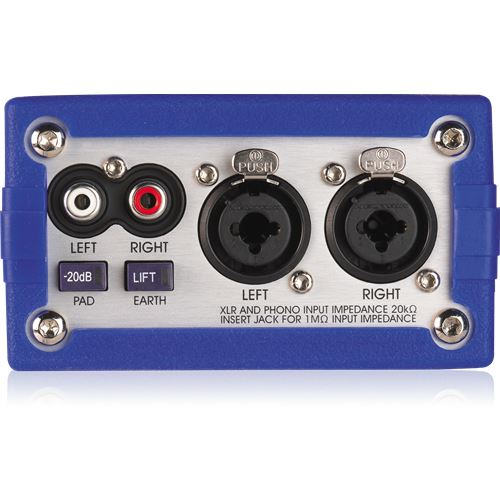

- Balanced line inputs on Neutrik Combo* XLR and high impedance 1/4” TRS connectors
- RCA Phono inputs for connection of consumer audio equipment
- Independent phantom powering for each channel for maximum reliability
- Global 20 dB input pad and earth lift switches

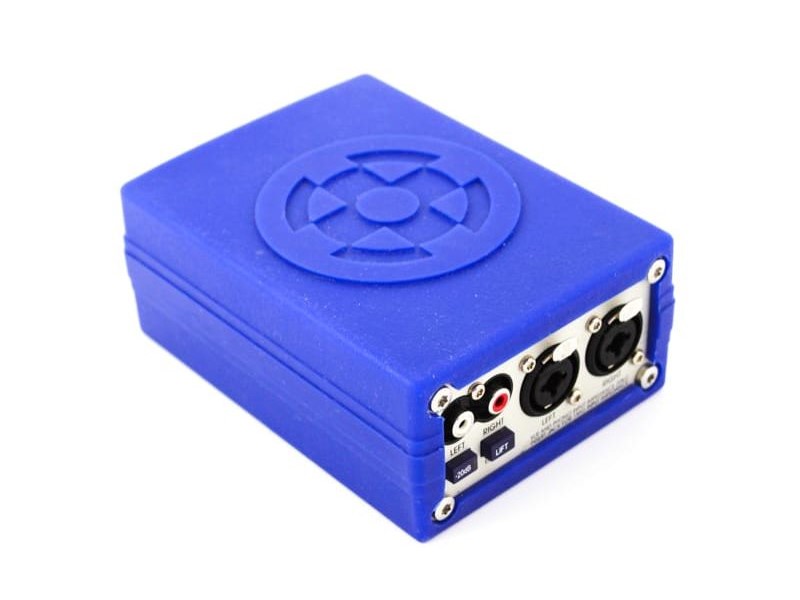

- Aluminium extrusion casing with protective silicone rubber sleeve
- Compact and rugged design
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
