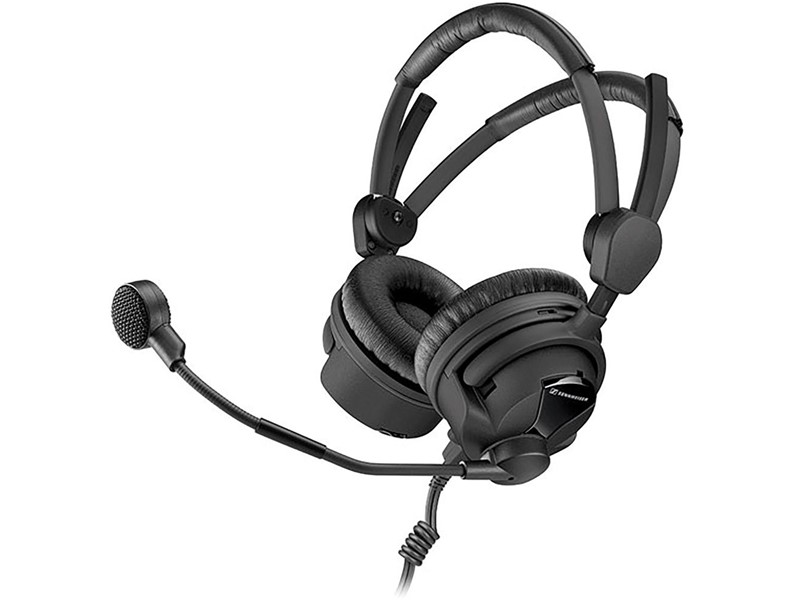

The HME 26-II-600 models apply to the requirements of most demanding broadcast applications.The pre-polarized condenser microphone features brilliant acoustic performance for crystal clear audio transmission in highest broadcast quality and has an excellent feedback rejection.The closed, supra-aural headphones have a high maximum SPL and are equipped with the ActiveGard©. This limiter can be activated or deactivated.
-
- Impedance
-
100 Ohm stereo (headphones)
-
- Characteristic SPL
-
1 kHz, 1 mW: 105 dB1 kHz, 1 V: 115 dB
-
- Pick-up pattern
-
omnidirectional (BKE 4-2)
-
- Max. Sound pressure level (active)
-
ActiveGard™ switched off: 128 dB at 1 kHz, 200 mWActiveGard© activated: 105 dB at 1 kHz, 200mW
-
- Frequency response (Microphone)
-
40 to 20.000 Hz
-
- Transducer principle (Microphone)
-
pre-polarized condenser microphone
-
- Frequency response (Headphones)
-
40 to 18.000 Hz
-
- Contact pressure
-
3,9 N
-
- Ear coupling
-
supra-aural
-
- Weight
-
(w/o cable and w/o connector) approx. 205 g
-
- Min. terminating impedance
-
4700 Ω
-
- Storage temperature
-
-55 °C to 70 °C
-
- Operating temperature
-
-15 °C to 55°C
-
- Maximum sound pressure level (passive)
-
150 dB; 0,5 % THD
-
- Output voltage
-
4 mV / Pa +/- 2,5 dB
-
- Operating voltage (stand alone)
-
5 - 15 V DC
-
- Transducer principle (headphones)
-
dynamic, closed
