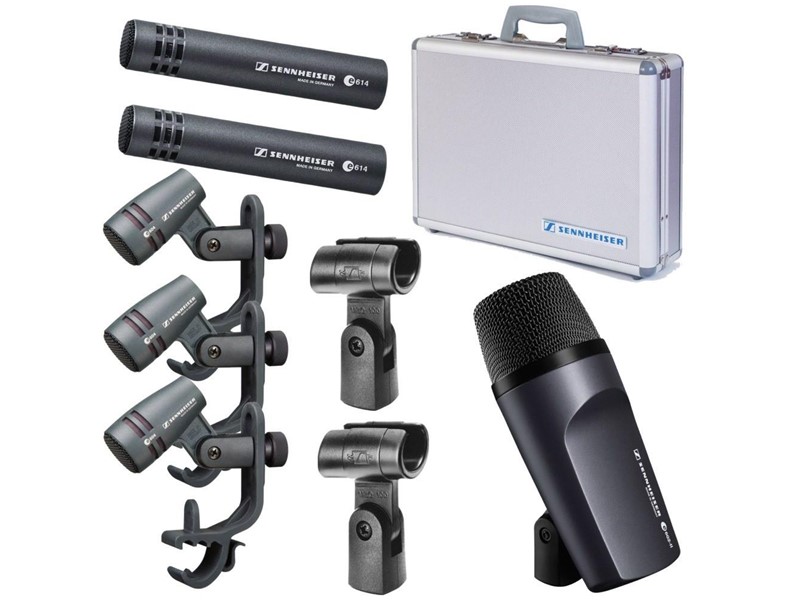

All you need for a powerful drum performance in a heavy duty case for optimal protection. Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604, cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead.

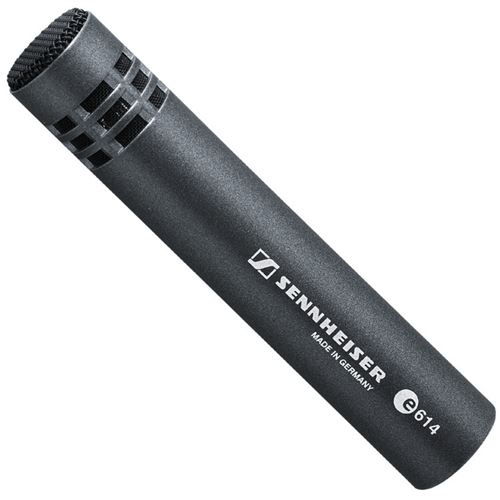

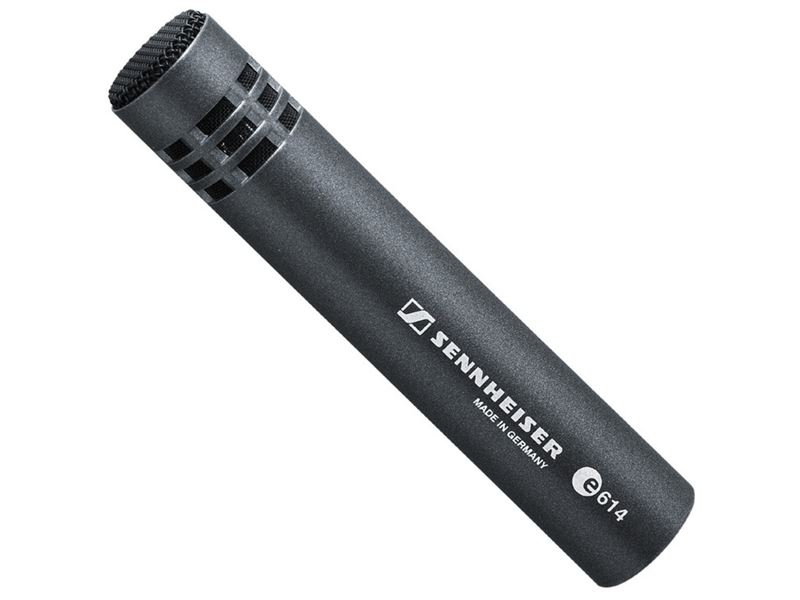

- e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording

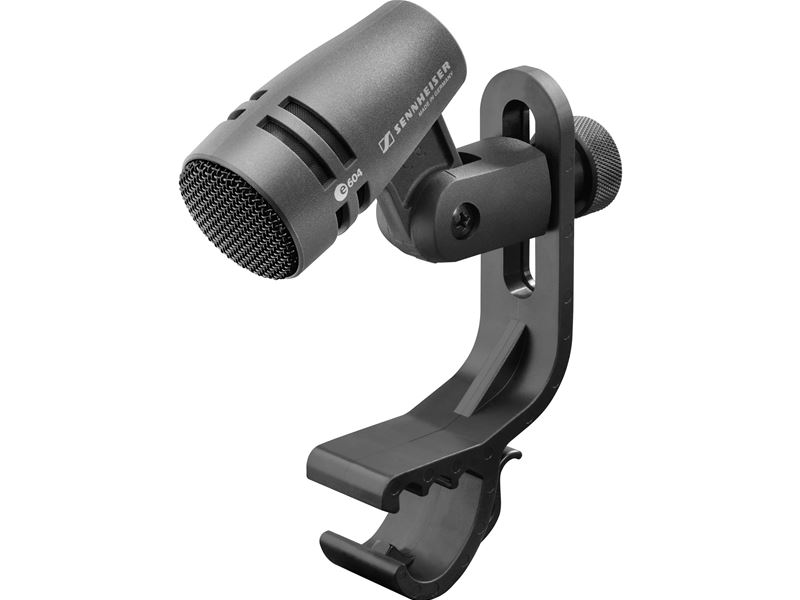

- e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp

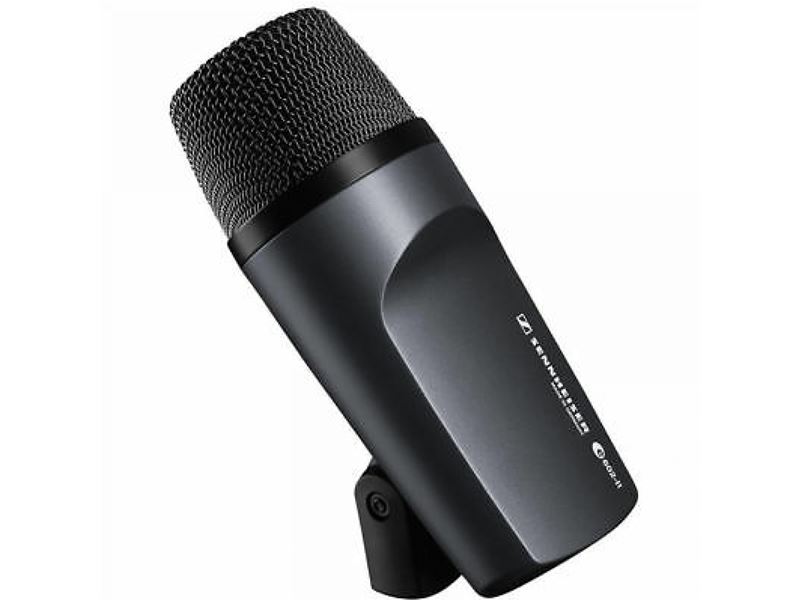

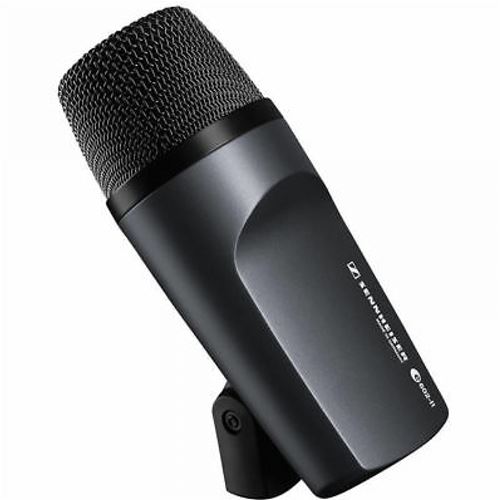

- 602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.
-
- Dimensions
-
Ø 20mm, L = 100mm
-
- Connector
-
XLR-3
-
- Frequency response
-
40 - 20000 Hz
-
- Max. sound pressure level
-
139 dB/SPL
-
- Transducer principle
-
pre-polarised condenser microphone
-
- Weight
-
93 g
-
- Pick-up pattern
-
super-cardioid
-
- Sensitivity in free field, no load (1kHz)
-
3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
-
- Nominal impedance
-
50 Ω
-
- Min. terminating impedance
-
1000 Ω
-
- Phantom powering
-
12 – 52 V / 3 mA
-
- Equivalent noise level
-
24 dB(A)
-
- Equivalent noise level weighted as per CCIR 468-3
-
35 dB
