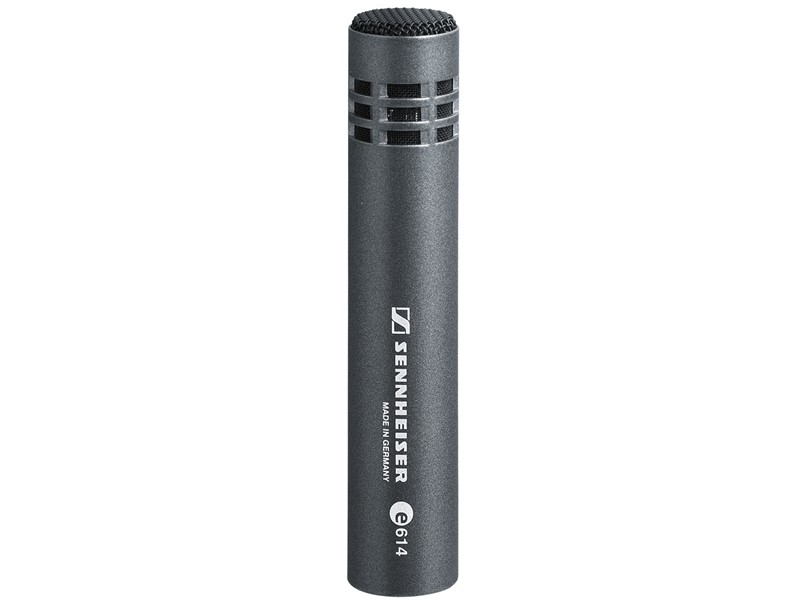

Sennheiser E 614 Instrument Microphone

E 614

SENNHEISER

Whatsapp for enquiry Email for enquiry






The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.


  • Dimensions
    Ø 20mm, L = 100mm
  • Connector
    XLR-3
  • Frequency response
    40 - 20000 Hz
  • Transducer principle
    pre-polarised condenser microphone
  • Weight
    w/o cable:
    93 g
  • Pick-up pattern
    super-cardioid
  • Sensitivity in free field, no load (1kHz)
    3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
  • Nominal impedance
    50 Ω
  • Min. terminating impedance
    1000 Ω
  • Phantom powering
    12 – 52 V / 3 mA
  • Equivalent noise level
    24 dB(A)
  • Equivalent noise level weighted as per CCIR 468-3
    35 dB
  • Maximum sound pressure level (passive)
    139 dB/SPL
